be Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

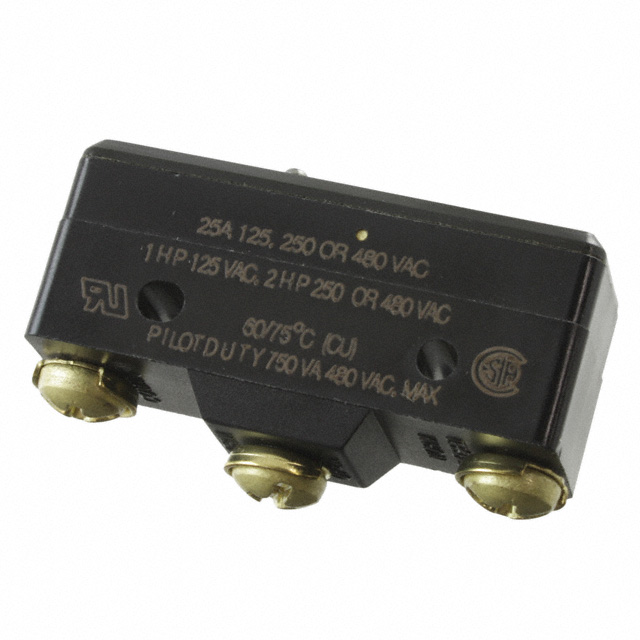

MICROSWITCH SNAP ACTION; 25A/250VAC; WITHOUT LEVER; SPDT; POS: 2
| Part | Differential Travel | Differential Travel | Mounting Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Pretravel | Pretravel | Mechanical Life | Switch Function | Operating Position [x] | Operating Position [x] | Actuator Type | Release Force | Current Rating (Amps) | Operating Force [Max] | Operating Force [Min] | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.007 in | 0.18 mm | Chassis Mount | Screw Terminal | -55 C | 85 °C | SPDT | 0.05 in | 1.27 mm | 20000000 Cycles | On-Mom | 16.3 mm | 0.64 in | Round (Pin Plunger) | 283 gf | 25 A | 624 gf | 397 gf | 125 V | 0.01 " | 0.25 mm |
