744C043 Series

Catalog

RES ARRAY 2 RES 33 OHM 1210

Part	Number of Resistors	Number of Pins	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Circuit Type	Tolerance	Package / Case	Mounting Type	Power Per Element	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Resistance (Ohms)

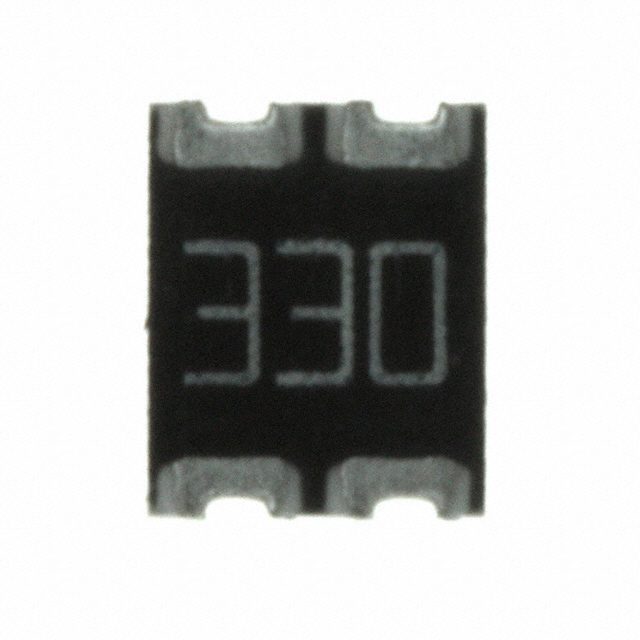

CTS Resistor Products 744C043330JP	2	4	3.2 mm	0.126 "	2.54 mm	0.1 in	Isolated	5 %	1210 (3225 Metric) Concave	Surface Mount	125 mW	200 ppm/°C	0.7 mm	0.028 "	33 Ohms	-55 C	125 °C
CTS Resistor Products 744C043000XP	2	4	3.2 mm	0.126 "	2.54 mm	0.1 in	Isolated		1210 (3225 Metric) Concave	Surface Mount	125 mW	200 ppm/°C	0.7 mm	0.028 "	0 Ohms	-55 C	125 °C	Jumper

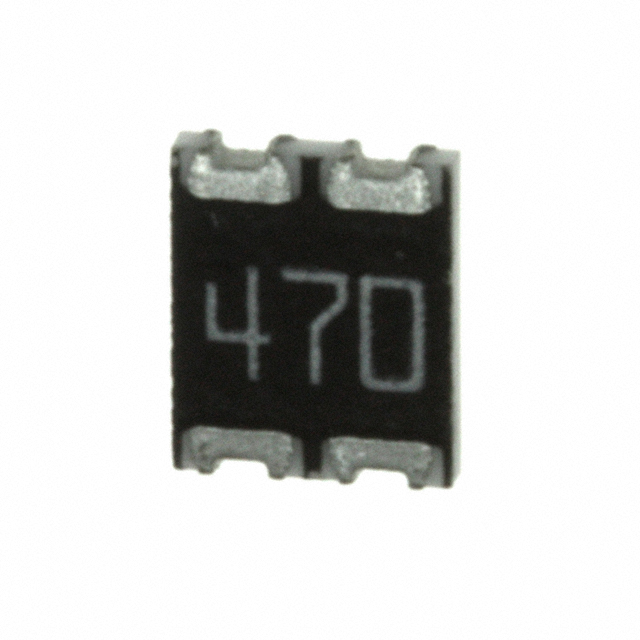

CTS Resistor Products 744C043470JP	2	4	3.2 mm	0.126 "	2.54 mm	0.1 in	Isolated	5 %	1210 (3225 Metric) Concave	Surface Mount	125 mW	200 ppm/°C	0.7 mm	0.028 "	47 Ohms	-55 C	125 °C

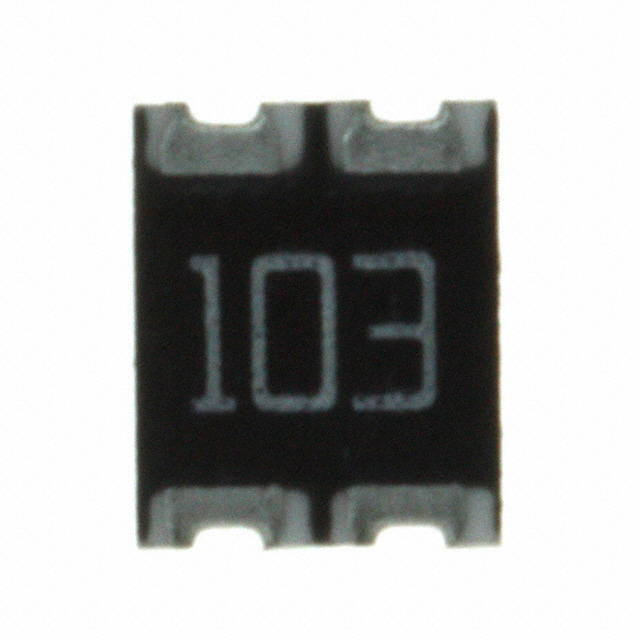

CTS Resistor Products 744C043103JP	2	4	3.2 mm	0.126 "	2.54 mm	0.1 in	Isolated	5 %	1210 (3225 Metric) Concave	Surface Mount	125 mW	200 ppm/°C	0.7 mm	0.028 "		-55 C	125 °C		10k

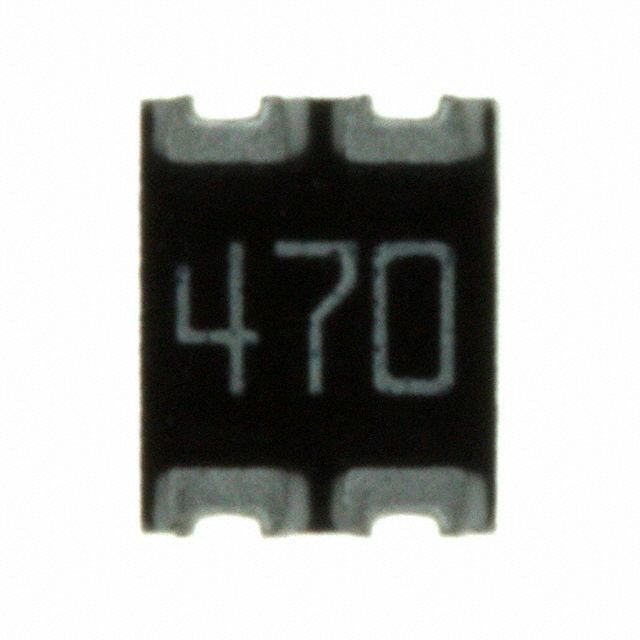

CTS Resistor Products 744C043470JTR	2	4	3.2 mm	0.126 "	2.54 mm	0.1 in	Isolated	5 %	1210 (3225 Metric) Concave	Surface Mount	125 mW	200 ppm/°C	0.7 mm	0.028 "	47 Ohms	-55 C	125 °C
CTS Resistor Products 744C043222JP	2	4	3.2 mm	0.126 "	2.54 mm	0.1 in	Isolated	5 %	1210 (3225 Metric) Concave	Surface Mount	125 mW	200 ppm/°C	0.7 mm	0.028 "	2.2 kOhms	-55 C	125 °C
