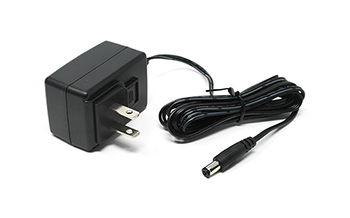

PEAW12I Series

Wall Mount Power Supply 18V 12 Watt

Manufacturer: TT Electronics/BI

Catalog

Wall Mount Power Supply 18V 12 Watt

Catalog

Wall Mount Power Supply 18V 12 Watt

Part	Input Type	Region Utilized	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	No Load Power Consumption	Voltage - Output	Input Connector	Approval Agency	Current - Output (Max) [Max]	Cord Length	Cord Length	Form	Output Connector	Output Connector [diameter]	Output Connector [x]	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI PEAW12I-13-B1	Multi-Blade (Single Blade Included)	International	Level VI	0 °C	60 °C	Positive Center	100 mW	15 V	Multi-Blade	CB CE cULus FCC LPS TUV	0.8 A	70.9 "	1.8 m	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	13 W	264 VAC	90 VAC	60950-1	ITE (Commercial)	32 mm	55.9 mm	1.26 "	1.46 "	37.1 mm	2.2 in
TT Electronics/BI PEAW12I-14-B1	Multi-Blade (Single Blade Included)	International	Level VI	0 °C	60 °C	Positive Center	100 mW	24 V	Multi-Blade	CB CE cULus FCC LPS TUV	500 mA	70.9 "	1.8 m	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	12 W	264 VAC	90 VAC	60950-1	ITE (Commercial)	32 mm	55.9 mm	1.26 "	1.46 "	37.1 mm	2.2 in
TT Electronics/BI PEAW12I-12-B1	Multi-Blade (Single Blade Included)	International	Level VI	0 °C	60 °C	Positive Center	100 mW	12 V	Multi-Blade	CB CE cULus FCC LPS TUV	1 A	70.9 "	1.8 m	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	12 W	264 VAC	90 VAC	60950-1	ITE (Commercial)	32 mm	55.9 mm	1.26 "	1.46 "	37.1 mm	2.2 in
TT Electronics/BI PEAW12I-10-B1	Multi-Blade (Single Blade Included)	International	Level VI	0 °C	60 °C	Positive Center	100 mW	5 V	Multi-Blade	CB CE cULus FCC LPS TUV	2.4 A	70.9 "	1.8 m	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	12 W	264 VAC	90 VAC	60950-1	ITE (Commercial)	32 mm	55.9 mm	1.26 "	1.46 "	37.1 mm	2.2 in
