UT062 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG HSG MALE 48POS INLINE

Part	Shell Material	Housing Color	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Shape	Contact Size	Orientation	Shell Finish	Connector Type	Mounting Type	Insert Material	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Ingress Protection IP Rating	Ingress Protection Description	Type	Features	Note	Number of Positions	Contact Type
Amphenol Aerospace Operations UT062448PYH	Halogen Free Zinc Alloy	Silver	UL94 V-0	48	24	Circular	16 S	Y	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	48	Crimp
Amphenol Aerospace Operations UT062448SWH	Halogen Free Zinc Alloy	Silver	UL94 V-0	48	24	Circular	16 S	W	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Coupling Nut	Contacts Not Included	48	Crimp
Amphenol Aerospace Operations UT062235PWH	Halogen Free Zinc Alloy	Silver	UL94 V-0	35	22	Circular	16 S	W	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	35	Crimp
Amphenol Aerospace Operations UT062235SZH	Halogen Free Zinc Alloy	Silver	UL94 V-0	35	22	Circular	16 S	Z	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Coupling Nut	Contacts Not Included	35	Crimp
Amphenol Aerospace Operations UT062235PXH	Halogen Free Zinc Alloy	Silver	UL94 V-0	35	22	Circular	16 S	X	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	35	Crimp

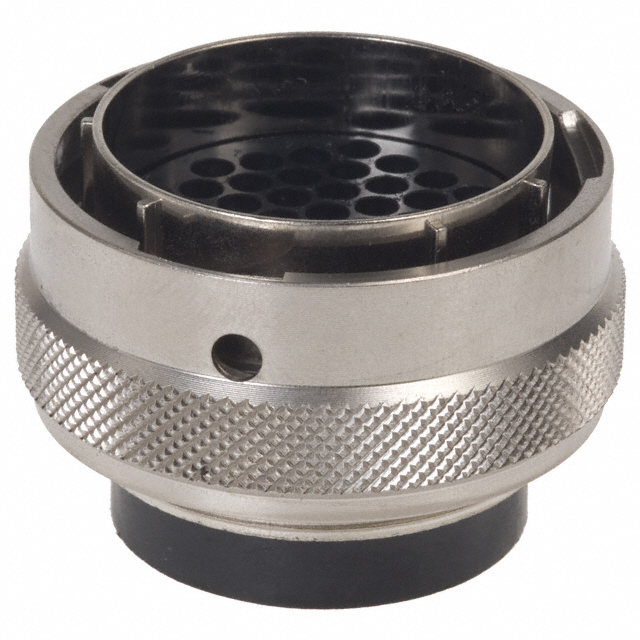

Amphenol Aerospace Operations UT062448PH	Halogen Free Zinc Alloy	Silver	UL94 V-0	48	24	Circular	16 S	N (Normal)	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	48	Crimp

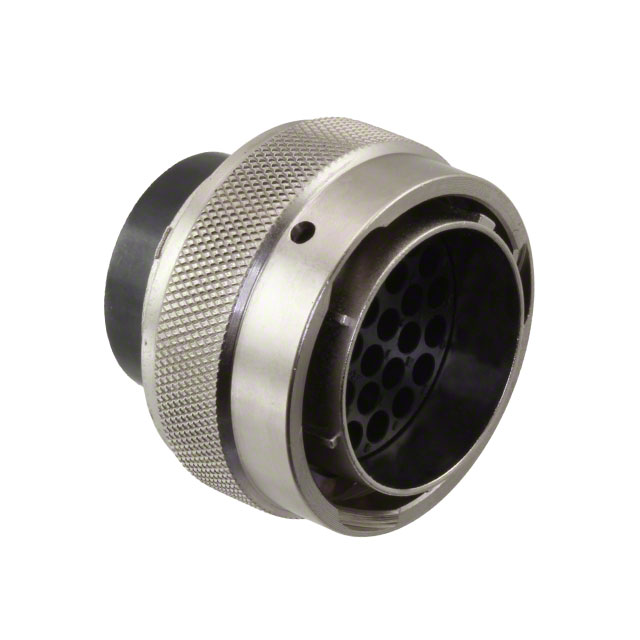

Amphenol Aerospace Operations UT062030PH	Halogen Free Zinc Alloy	Silver	UL94 V-0	30	20	Circular	16 S	N (Normal)	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	30	Crimp

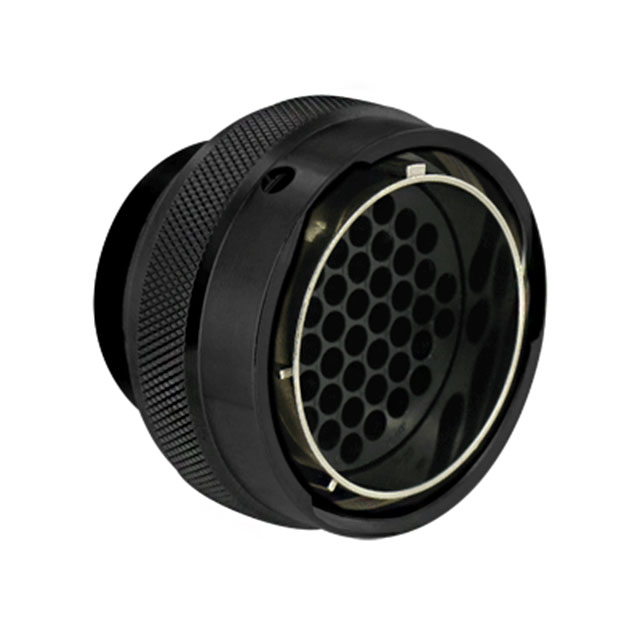

Amphenol Aerospace Operations UT062448PH02	Halogen Free Zinc Alloy	Black	UL94 V-0	48	24	Circular	16 S	N (Normal)	Anodized	Plug Housing	Free Hanging (In-Line)	Glass Filled Thermoplastic	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	48	Crimp
Amphenol Aerospace Operations UT062448PWH	Halogen Free Zinc Alloy	Silver	UL94 V-0	48	24	Circular	16 S	W	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	48	Crimp
Amphenol Aerospace Operations UT062235PZH	Halogen Free Zinc Alloy	Silver	UL94 V-0	35	22	Circular	16 S	Z	Nickel	Plug Housing	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Bayonet Lock	-40 °C	105 °C	Shielded	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Coupling Nut	Contacts Not Included	35	Crimp
