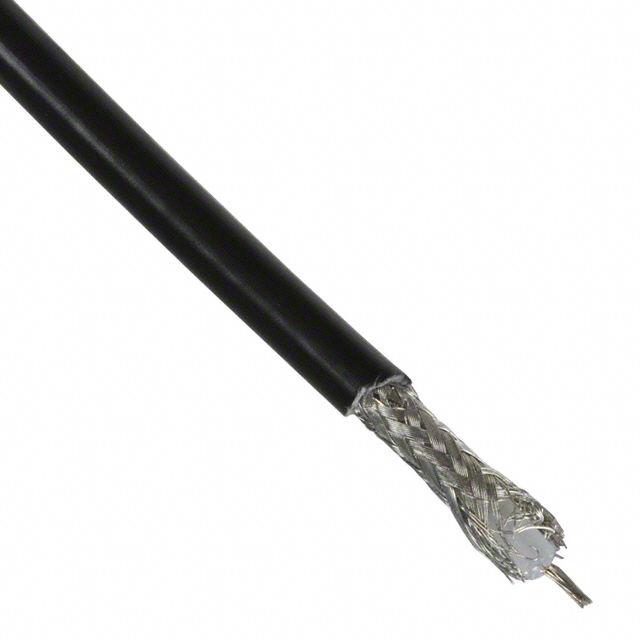

9058AC Series
Manufacturer: ALPHA WIRE
Beta
⌘K
COAXIAL CABLES 21 AWG 19/.0071 1 CONDUCTOR 1400V BRAID, PE, PVC 500FT SPOOL, BLACK
| Part | Cable Type | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Impedance | Jacket (Insulation) Material | Wire Gauge | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Jacket Color | Usage | VoP, Velocity of Propagation | Shield Material | Dielectric Material | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Coaxial | Braid | 19 | 33 AWG | 152.4 m | 500 ft | 50 Ohms | Poly-Vinyl Chloride (PVC) | 0.41 mm² | 21 AWG | 0.195 " | 4.95 mm | RG-58A | Black | Network | |||||||||
 ALPHA WIRE | Coaxial | Braid | 19 | 33 AWG | 304.8 m | 1000 ft | 50 Ohms | Poly-Vinyl Chloride (PVC) | 0.41 mm² | 21 AWG | 0.195 " | 4.95 mm | RG-58A | Black | Network | 66 | Copper Tinned | Solid Polyethylene (PE) | Copper Tinned | 2.95 mm | 0.116 in | -20 ░C | 60 °C | 95 % |
