392-116 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 116POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Termination	Number of Positions	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Color	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Contact Finish	Contact Type	Gender	Pitch	Pitch	Features
EDAC Inc. 392-116-521-212	Polyester Thermoplastic	2	Through Hole	Solder	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm
EDAC Inc. 392-116-544-203	Polyester Thermoplastic	2	Through Hole	Wire Wrap	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm

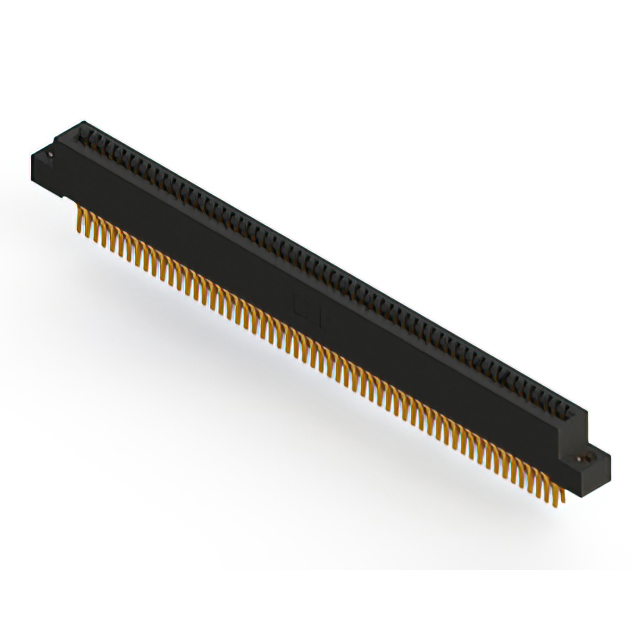

EDAC Inc. 392-116-560-208	Polyester Thermoplastic	2	Board Edge Straddle Mount	Solder	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm	Card Extender
EDAC Inc. 392-116-541-203	Polyester Thermoplastic	2	Through Hole	Wire Wrap	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm
EDAC Inc. 392-116-559-202	Polyester Thermoplastic	2	Right Angle Through Hole	Solder Wire Wrap	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm
EDAC Inc. 392-116-523-207	Polyester Thermoplastic	2	Through Hole	Solder	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm
EDAC Inc. 392-116-521-204	Polyester Thermoplastic	2	Through Hole	Solder	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm
EDAC Inc. 392-116-520-203	Polyester Thermoplastic	2	Through Hole	Solder	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm
EDAC Inc. 392-116-555-203	Polyester Thermoplastic	2	Board Edge Straddle Mount	Solder Eyelet(s)	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm	Card Extender

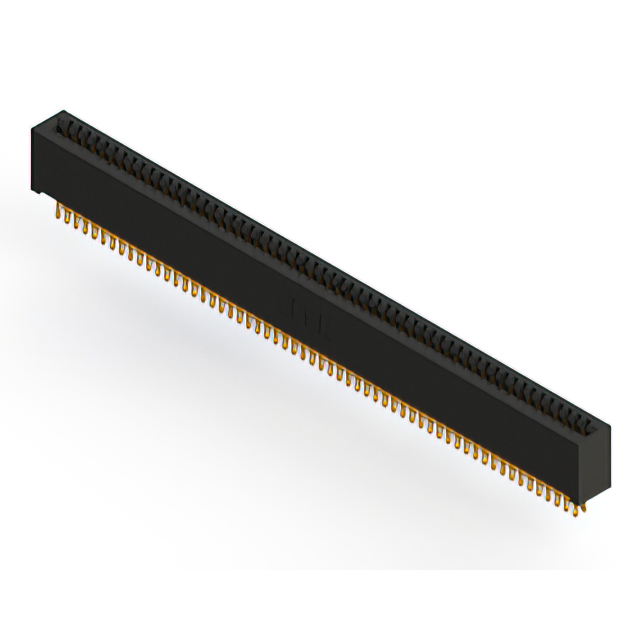

EDAC Inc. 392-116-555-201	Polyester Thermoplastic	2	Board Edge Straddle Mount	Solder Eyelet(s)	116	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm				Copper Alloy	Black	58	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Gold	Cantilever	Female	0.1 "	2.54 mm	Card Extender
