XM1110 Series

Catalog

RF RCVR GLONASS 1.575GHZ MODULE

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency	Frequency [Max]	Frequency [Min]	Sensitivity	Applications	Data Interface	Modulation or Protocol	Current - Receiving	Antenna Connector	Voltage - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Supplied Contents	For Use With/Related Products	Contents	Type	Utilized IC / Part	Data Rate (Max) [Max]
Semtech Corporation XM1110_1103586	Surface Mount	85 °C	-40 C	20-QFN	1.575 GHz	1.605 GHz	1.598 GHz	-165 dBm	General Purpose	I2C SPI	GLONASS GPS	28 mA	Castellation	3.3 V

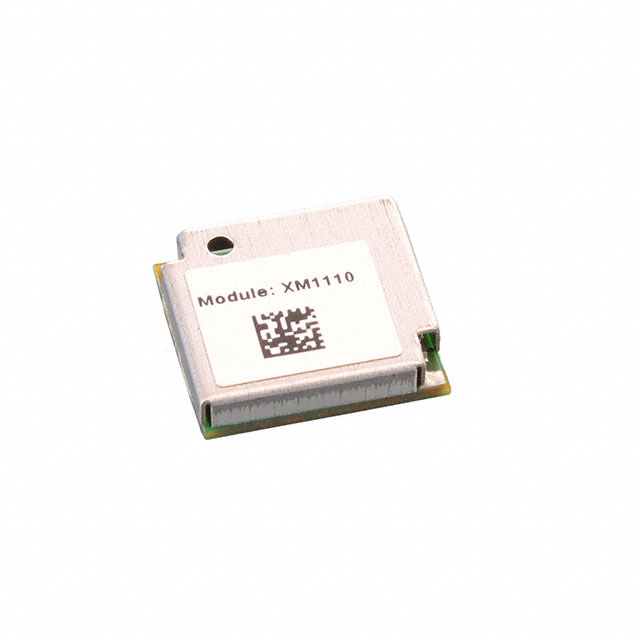

Semtech Corporation XM1110_1103886	Surface Mount	85 °C	-40 C	20-SMD Module	1.575 GHz	1.605 GHz	1.598 GHz	-165 dBm	General Purpose	I2C SPI UART	GLONASS GPS	32 mA	Castellation		3 V	4.3 V	Module

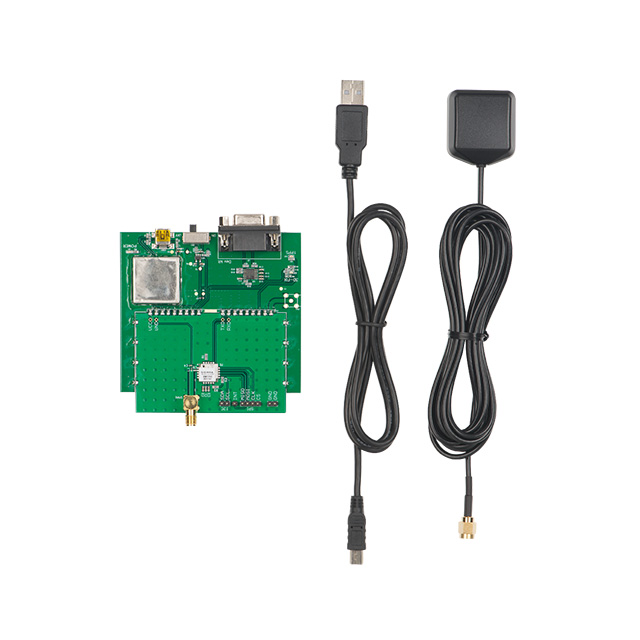

Semtech Corporation XM1110 DEV KIT_6001187																		Board(s)	MT3333 XM1110	Board(s)	GNSS (Beidou GLONASS GPS)	MT3333 XM1110
Semtech Corporation XM1110_1103912	Surface Mount	85 °C	-40 C	Module	1.575 GHz	1.605 GHz	1.598 GHz	-165 dBm	General Purpose	I2C SPI UART	GLONASS GNSS GPS	30 mA	Castellation		3 V	4.3 V							9.6 kbps
