155224 Series

Catalog

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 24 CONTACTS, SURFACE MOUNT STRAIGHT, 1552 SERIES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Color	Termination	Connector Type	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Features	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Type	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Style	Contact Material	Contact Finish - Post	Material Flammability Rating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
3M Electronic Specialty 155224-2200-RB	200 µin	5.08 µm	1.25 A	Black	Solder	Header	Gold	All	Surface Mount	Keying Slot	2 mm	0.079 in	Shrouded - 4 Wall	Male Pin	10.8 mm	0.425 in	Latch Lock/Eject Hooks	3.81 mm	0.15 in	Board to Cable/Wire	Copper Alloy	Tin	UL94 V-0	Square	-55 C	105 ░C	24	2	0.079 "	2 mm	0.76 Ám	30 Áin
3M Electronic Specialty 155224-5203-RB	200 µin	5.08 µm	1.25 A	Black	Solder	Header	Gold	All	Right Angle Through Hole	Keying Slot	2 mm	0.079 in	Shrouded - 4 Wall	Male Pin			Latch Lock/Eject Hooks	3.81 mm	0.15 in	Board to Cable/Wire	Copper Alloy	Tin	UL94 V-0	Square	-55 C	105 ░C	24	2	0.079 "	2 mm	0.76 Ám	30 Áin	6.28 mm	0.247 "	3.94 mm	0.155 "

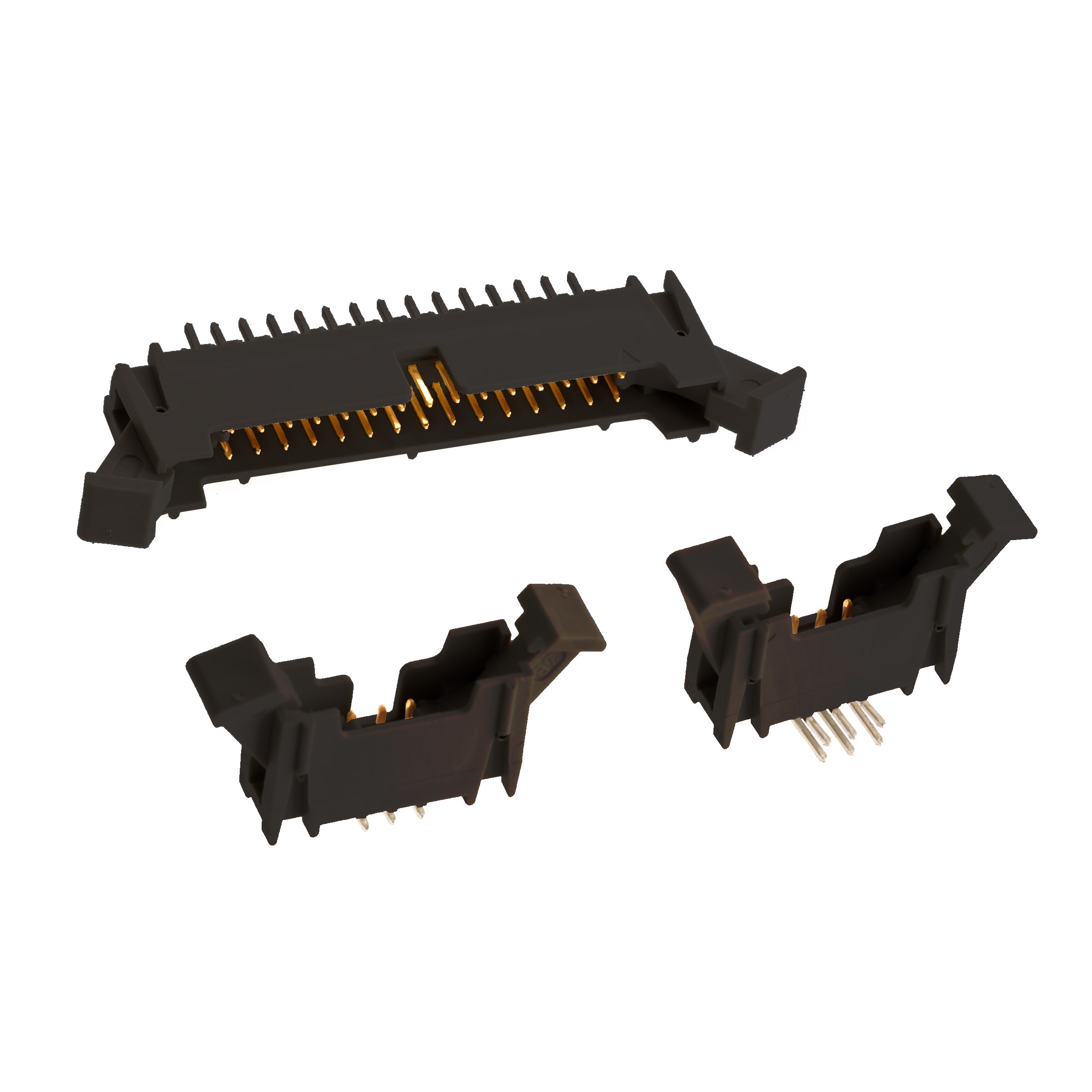

3M Electronic Specialty 155224-2200-RB-WE	200 µin	5.08 µm	1.25 A	Black	Solder	Header	Gold	All	Surface Mount	Keying Slot Pick and Place	2 mm	0.079 in	Shrouded - 4 Wall	Male Pin	10.8 mm	0.425 in	Latch Lock/Eject Hooks	3.81 mm	0.15 in	Board to Cable/Wire	Copper Alloy	Tin	UL94 V-0	Square	-55 C	105 ░C	24	2	0.079 "	2 mm	0.76 Ám	30 Áin
