ANT-2.4-FPC-SF Series

Catalog

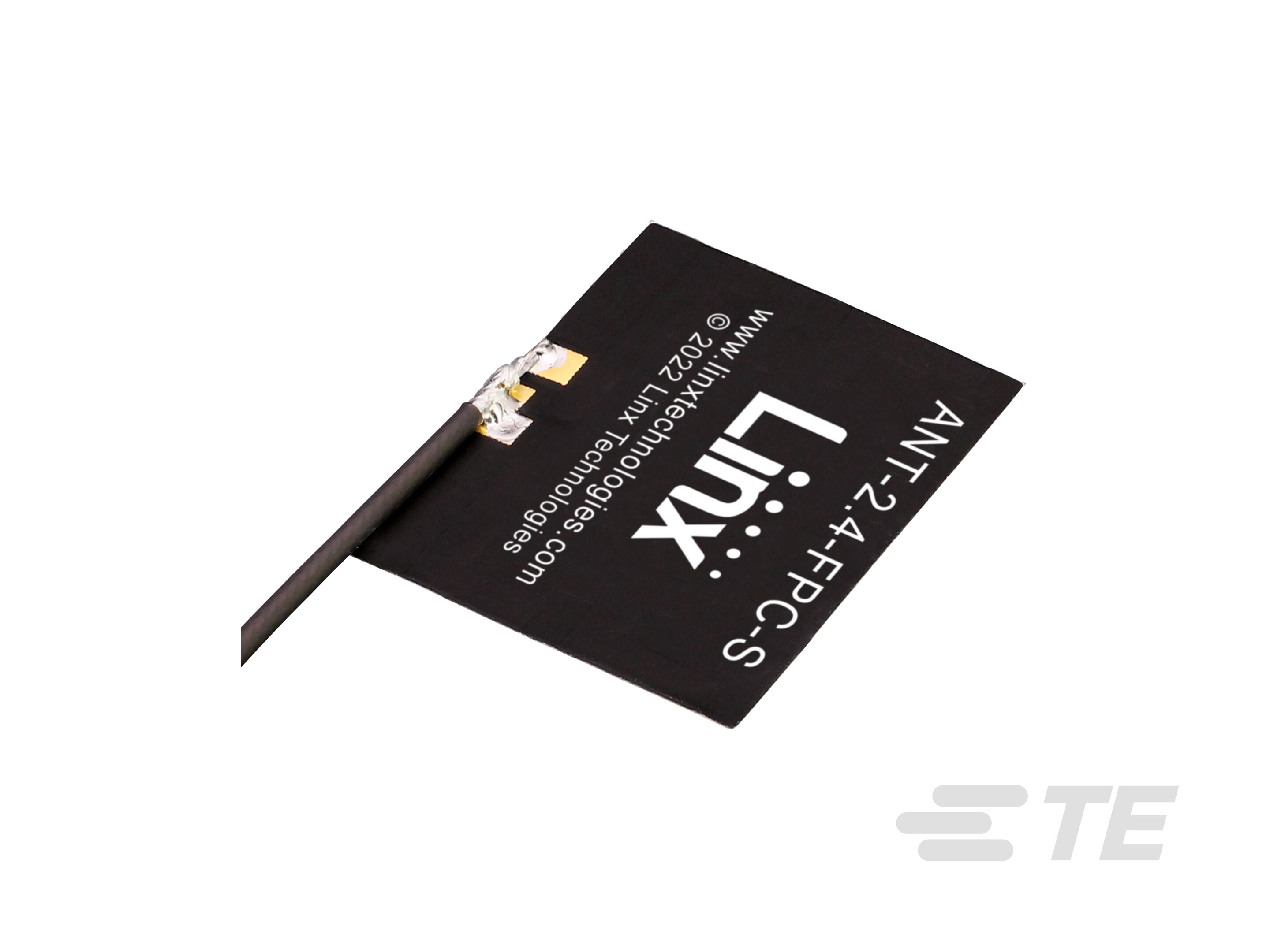

ANTENNA 2.4 FPC SF 25X20 150 MHF4

Part	Frequency Range [Max]	Frequency Range [Min]	Power - Max [Max]	VSWR	Antenna Type	Termination	Number of Bands	Mounting Type	Height (Max) [z]	Height (Max) [z]	Features	Applications	Gain	Termination	Features
TE Connectivity AMP Connectors ANT-2.4-FPC-SF150M4	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	MHF4	1	Adhesive	0.004 in	0.1 mm	Cable - 150mm	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi
TE Connectivity AMP Connectors ANT-2.4-FPC-SF100UF	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	I-PEX MHF1 IPEX MHF1	1	Adhesive	0.004 in	0.1 mm	Cable	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi	U.FL	100 mm

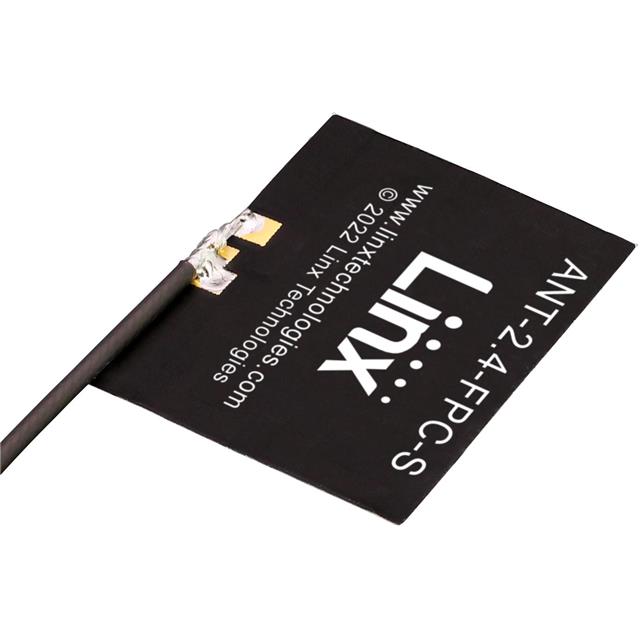

TE Connectivity AMP Connectors ANT-2.4-FPC-SF100M4	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	MHF4	1	Adhesive	0.004 in	0.1 mm	Cable	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi		100 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-SF200M4	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	MHF4	1	Adhesive	0.004 in	0.1 mm	Cable - 200mm	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi
TE Connectivity AMP Connectors ANT-2.4-FPC-SF50M4	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	MHF4	1	Adhesive	0.004 in	0.1 mm	Cable - 50mm	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi
TE Connectivity AMP Connectors ANT-2.4-FPC-SF50UF	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	I-PEX MHF1 IPEX MHF1	1	Adhesive	0.004 in	0.1 mm	Cable - 50mm	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi	U.FL

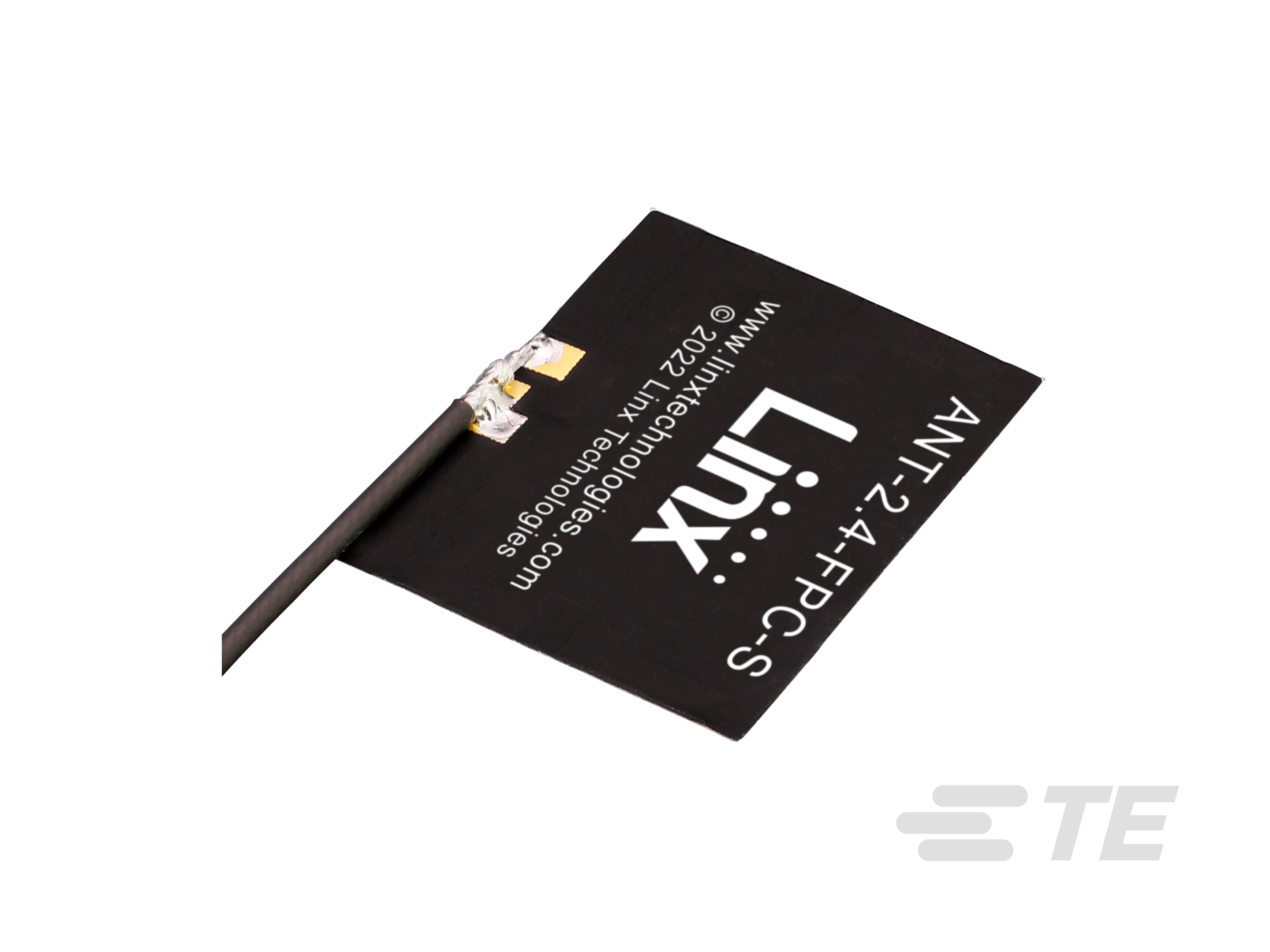

TE Connectivity AMP Connectors ANT-2.4-FPC-SF200UF	2.5 GHz	2.4 GHz	2 W	1.9	PCB Trace	I-PEX MHF1 IPEX MHF1	1	Adhesive	0.004 in	0.1 mm	Cable - 200mm	Bluetooth ISM Wi-Fi Zigbee™	3.9 dBi	U.FL
