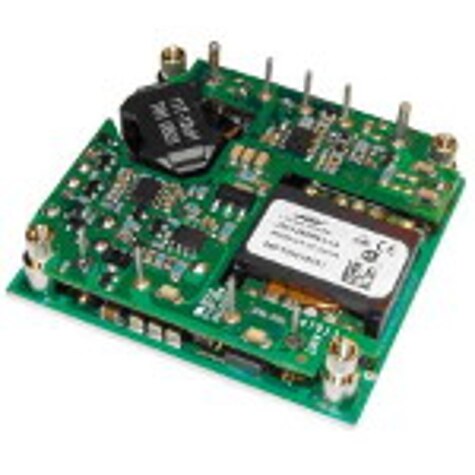

JNW350R Series
Isolated DC/DC Converters - Chassis Mount 350W 48V-28V 12.5A TH 3.68pin Neg Logic
Manufacturer: OmniOn Power™
Catalog
Isolated DC/DC Converters - Chassis Mount 350W 48V-28V 12.5A TH 3.68pin Neg Logic
Beta
⌘K
Isolated DC/DC Converters - Chassis Mount 350W 48V-28V 12.5A TH 3.68pin Neg Logic
Isolated DC/DC Converters - Chassis Mount 350W 48V-28V 12.5A TH 3.68pin Neg Logic
Isolated DC/DC Converters - Chassis Mount 350W 48V-28V 12.5A TH 3.68pin Neg Logic
| Part | Type | Mounting Type | Applications | Features | Efficiency | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Number of Outputs | Voltage - Output 1 | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Control Features | Voltage - Isolation | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Isolated Module | Through Hole | ITE (Commercial) | OCP OTP OVP Remote On/Off UVLO | 92 % | 350 W | 2.39 " | 12.7 mm | 0.5 in | 57.7 mm | 60.7 mm | 2.27 in | 85 °C | -40 C | 9-DIP Module 1/2 Brick | 1 | 28 V | 36 V | 75 V | Active Low Enable | 1.5 kV | 12.5 A |
