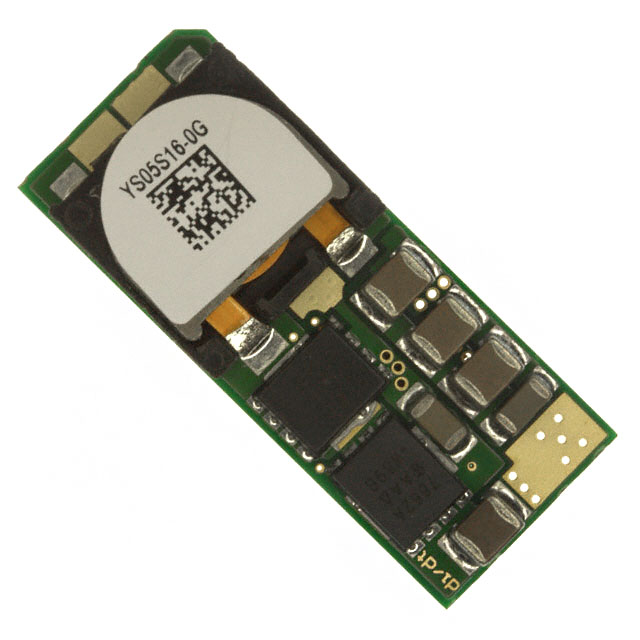

YS05S16 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULE DC-DC 5VIN 1-OUT 0.7525V TO 3.63V 16A 58W 6-PIN SMD
| Part | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Control Features | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency | Applications | Package / Case | Type | Number of Outputs | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Surface Mount | 0.32 " | 13.5 mm | 8 mm | 1.3 in | 33 mm | 0.53 in | Active Low Enable | 16 A | 85 °C | -40 C | OCP OTP Remote On/Off UVLO | 0.7525 V | 3.63 V | 5.5 V | 3 V | 93 % | ITE (Commercial) | 6-SMD Module | Non-Isolated PoL Module | 1 | ||
Bel Fuse Inc. | Surface Mount | 0.31 " | 13.5 mm | 7.9 mm | 1.3 in | 33 mm | 0.53 in | Active High Enable | 16 A | 85 °C | -40 C | OCP OTP Remote On/Off UVLO | 5.5 V | 3 V | 93 % | ITE (Commercial) | 6-SMD Module | Non-Isolated PoL Module | 1 | 0.75 V | 3.63 V |
