BPJR01 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

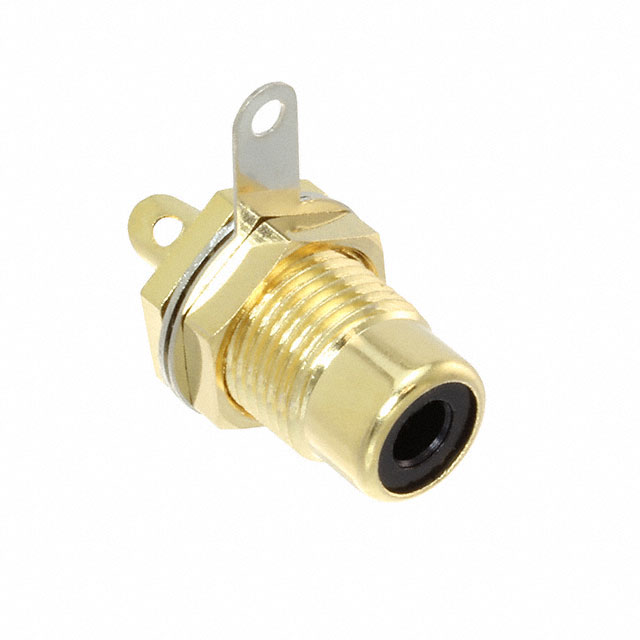

CONN RCA JACK MONO 3.2MM PNL MT
| Part | Includes | Body Color | Contact Material | Thread Size | Contact Material - Plating | Body Material | Panel Hole Size | Panel Hole Size | Connector Type | Features | Industry Recognized Mating Diameter [diameter] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Termination | Insulation Color | Signal Lines | Shielding | Mounting Type | Gender | Internal Switch(s) | Actual Diameter [diameter] | Actual Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 1 Nut 1 Washer 3 pcs - 1 Connector | Silver | Brass | 3/8"-32 | Gold | Brass | 9.52 mm | 0.375 in | Phono (RCA) Jack | Grounding Tab Mounting Hardware | 3.2 mm 9 mm | 2 | 2 | Solder Eyelet(s) | Black | Mono | Unshielded | Panel Mount | Female | 0.134 in 0.325 in | 3.4 mm 8.25 mm | |
 SWITCHCRAFT/CONXALL | 1 Nut 1 Washer 3 pcs - 1 Connector | Silver | Brass | 3/8"-32 | Nickel | Brass | 9.52 mm | 0.375 in | Phono (RCA) Jack | Grounding Tab Mounting Hardware | 3.2 mm 9 mm | 2 | 2 | Solder Eyelet(s) | Black | Mono | Unshielded | Panel Mount | Female | 0.134 in 0.325 in | 3.4 mm 8.25 mm |
