UTG11 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCP HSG FMALE 19POS INLINE

Part	Insert Material	Fastening Type	Contact Type	Note	Housing Color	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Connector Type	Mounting Type	Orientation	Shell Material	Contact Shape	Shielding	Material Flammability Rating	Number of Positions	Contact Size	Operating Temperature (Max)	Operating Temperature (Min)	Type	Ingress Protection IP Rating	Ingress Protection Description	Shell Size - Insert Width	Shell Size - Insert Length	Position Types

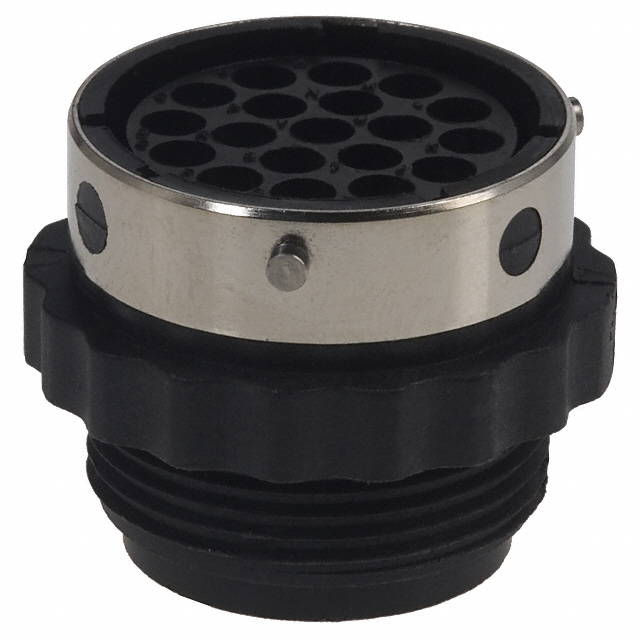

Amphenol Aerospace Operations UTG116-19S	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver	19	16 S	Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	19	16 S	125 °C	-55 °C	For Female Sockets
Amphenol Aerospace Operations UTG11412PH	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	12	16 S	125 °C	-55 °C	For Male Pins	IP65	Dust Tight Water Resistant	12 mm	14 mm

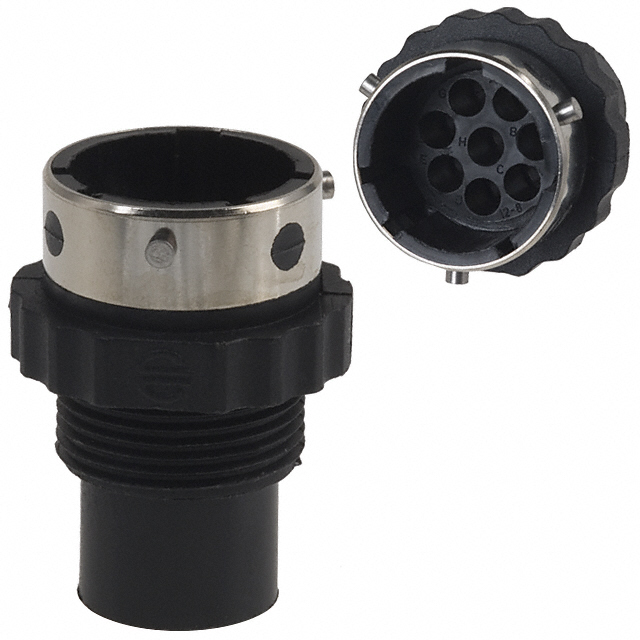

Amphenol Aerospace Operations UTG1128P	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	8	16 S	125 °C	-55 °C	For Male Pins			8 mm	12 mm

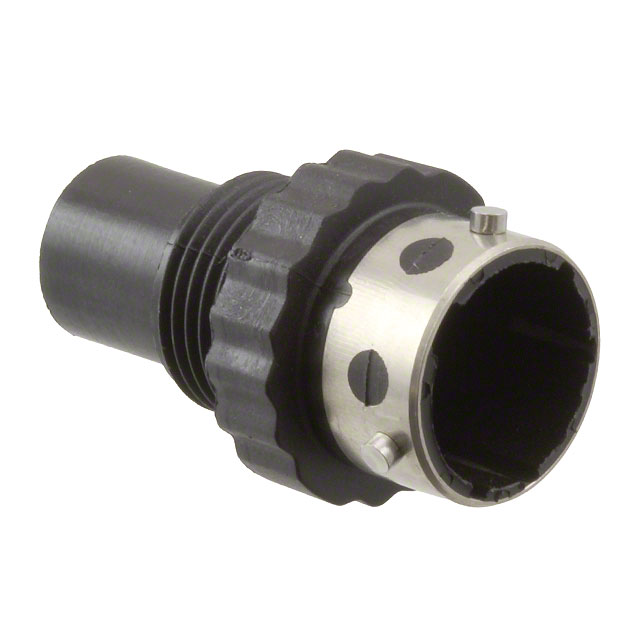

Amphenol Aerospace Operations UTG1103P	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	3	16 S	125 °C	-55 °C	For Male Pins			3 mm	10 mm	PE
Amphenol Aerospace Operations UTG1104P	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	4	16 S	125 °C	-55 °C	For Male Pins			4 mm	10 mm
Amphenol Aerospace Operations UTG1128PH	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	8	16 S	125 °C	-55 °C	For Male Pins	IP65	Dust Tight Water Resistant	8 mm	12 mm

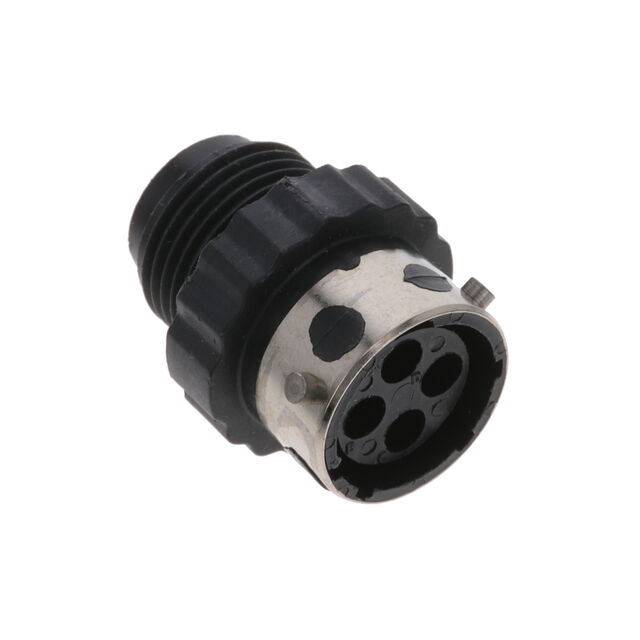

Amphenol Aerospace Operations UTG1104S	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	4	16 S	125 °C	-55 °C	For Female Sockets			4 mm	10 mm
Amphenol Aerospace Operations UTG1104PH	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	4	16 S	125 °C	-55 °C	For Male Pins	IP65	Dust Tight Water Resistant	4 mm	10 mm

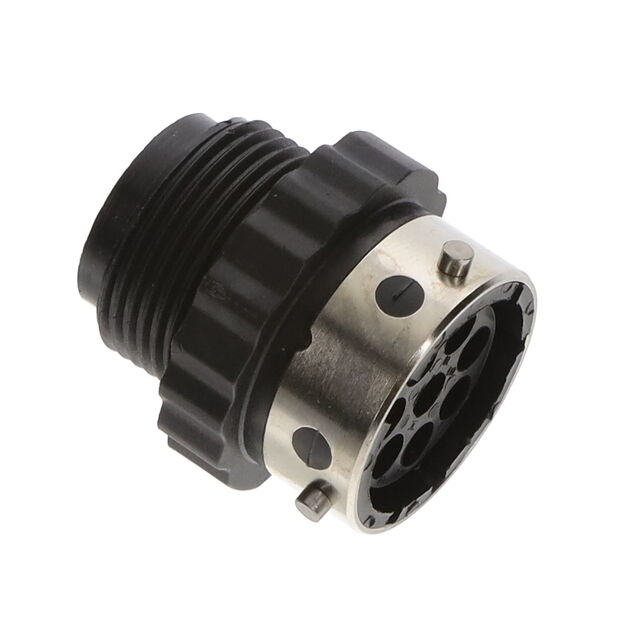

Amphenol Aerospace Operations UTG1128S	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	8	16 S	125 °C	-55 °C	For Female Sockets			8 mm	12 mm

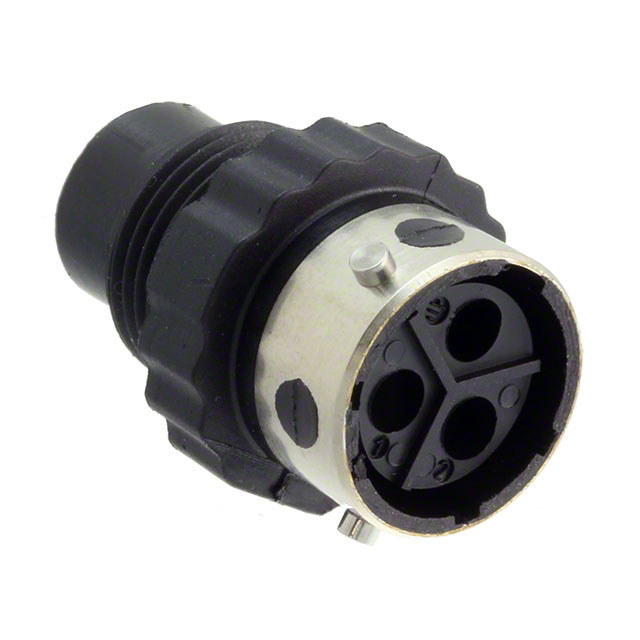

Amphenol Aerospace Operations UTG1103S	Glass Filled Thermoplastic	Bayonet Lock	Crimp	Contacts Not Included	Black Silver			Receptacle Housing	Free Hanging (In-Line)	N (Normal)	Glass Filled Polyester	Circular	Unshielded	UL94 V-0	3	16 S	125 °C	-55 °C	For Female Sockets			3 mm	10 mm	PE
