9CR0412 Series

Catalog

FAN AXIAL DUAL 40X56MM 12VDC

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Material - Blade	Power (Watts)	Termination	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Width [y]	Noise	RPM [custom]	RPM [custom]	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Features	Voltage - Rated
Sanyo Denki America Inc. 9CR0412H5D01	10.8 VDC	13.2 VDC	Plastic	0.72 A	Plastic	8.64 W	3	40 mm	40 mm	Tubeaxial (Dual)	56 mm	54 dB	13300 RPM	9300 RPM	0.199 lb	90.26 g	-10 °C	60 °C	Ball	Counter-Rotating Locked Rotor Sensor	12 VDC
Sanyo Denki America Inc. 9CR0412H502	10.8 VDC	13.2 VDC	Plastic	0.72 A	Plastic	8.64 W	2	40 mm	40 mm	Tubeaxial (Dual)	56 mm	54 dB	13300 RPM	9300 RPM	0.199 lb	90.26 g	-10 °C	60 °C	Ball	Counter-Rotating	12 VDC

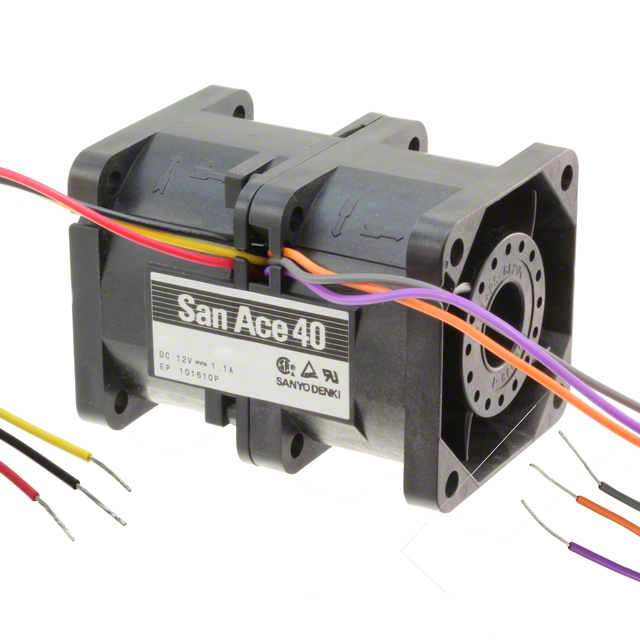

Sanyo Denki America Inc. 9CR0412S501	10.8 VDC	13.2 VDC	Plastic	1.1 A	Plastic	13.2 W	3	40 mm	40 mm	Tubeaxial (Dual)	56 mm	57.5 dB	15800 RPM	10600 RPM	0.199 lb	90.26 g	-10 °C	60 °C	Ball	Counter-Rotating Locked Rotor Protection Speed Sensor (Tach)	12 VDC
