LM2650 Series
Manufacturer: Texas Instruments
Catalog
SYNCHRONOUS STEP-DOWN DC/DC CONVERTER
| Part | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Synchronous Rectifier | Output Configuration | Supplier Device Package | Mounting Type | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Topology | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Function | Frequency - Switching | Current - Output | Package / Case [custom] | Package / Case | Package / Case [custom] | Regulator Topology | Utilized IC / Part | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Voltage - Output [Max] | Voltage - Output [Min] | Outputs and Type | Outputs and Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1.5 V | 16 V | Positive | 24-SOIC | Surface Mount | 4.5 V | 1 | 18 V | Buck | Adjustable | -40 °C | 125 ¯C | Step-Down | 90 kHz | 3 A | 7.5 mm | 24-SOIC | 0.295 in | ||||||||||||

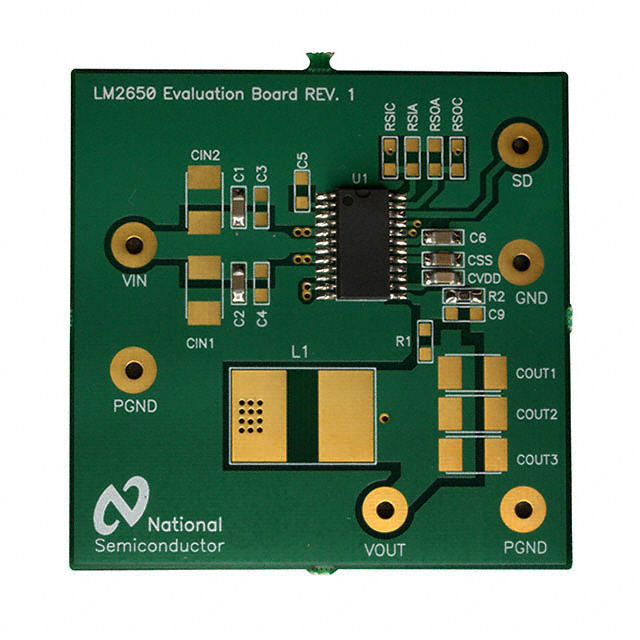

 Texas Instruments | 3 A | Buck | LM2650 | DC/DC Step Down | 18 V | 4.5 V | Fully Populated | 16 V | 1.5 V | Non-Isolated | 1 | Board(s) | ||||||||||||||||||
Texas Instruments | 1.5 V | 16 V | Positive | 24-SOIC | Surface Mount | 4.5 V | 1 | 18 V | Buck | Adjustable | -40 °C | 125 ¯C | Step-Down | 90 kHz | 3 A | 7.5 mm | 24-SOIC | 0.295 in |
