ISPLSI 2032A Series
Manufacturer: Lattice Semiconductor Corporation
Beta
⌘K
IC CPLD 32MC 15NS 48TQFP
| Part | Number of I/O | Mounting Type | Voltage Supply - Internal [Min] | Voltage Supply - Internal [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Delay Time tpd(1) Max [Max] | Supplier Device Package | Number of Logic Elements/Blocks | Package / Case | Number of Macrocells | Programmable Type | Number of Gates | Delay Time tpd(1) Max | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 15 ns | 48-TQFP (7x7) | 8 | 48-LQFP | 32 | In System Programmable | 1000 | |||

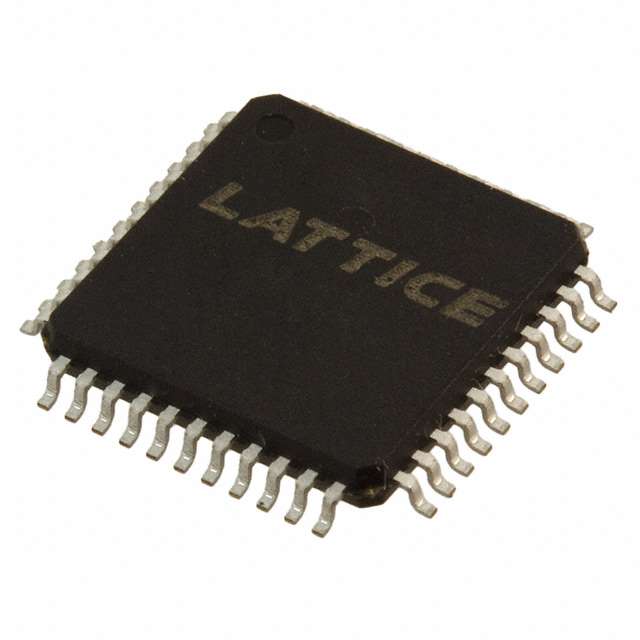

 Lattice Semiconductor Corporation | 32 | Surface Mount | 4.5 V | 5.5 V | -40 ¯C | 85 C | 15 ns | 44-TQFP (10x10) | 8 | 44-TQFP | 32 | In System Programmable | 1000 | |||
Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 44-TQFP (10x10) | 8 | 44-TQFP | 32 | In System Programmable | 1000 | 5.5 ns | |||

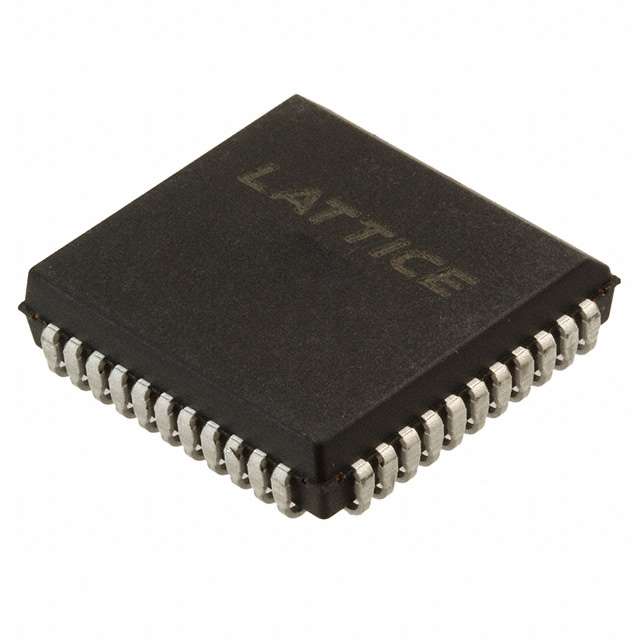

 Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 44-PLCC | 8 | 44-LCC (J-Lead) | 32 | In System Programmable | 1000 | 5.5 ns | 16.59 | 16.59 | |
Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 10 ns | 44-PLCC | 8 | 44-LCC (J-Lead) | 32 | In System Programmable | 1000 | 16.59 | 16.59 | |
 Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 15 ns | 48-TQFP (7x7) | 8 | 48-LQFP | 32 | In System Programmable | 1000 | |||
Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 15 ns | 44-PLCC | 8 | 44-LCC (J-Lead) | 32 | In System Programmable | 1000 | 16.59 | 16.59 | |
Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 5 ns | 44-PLCC | 8 | 44-LCC (J-Lead) | 32 | In System Programmable | 1000 | 16.59 | 16.59 | |
Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 7.5 ns | 44-PLCC | 8 | 44-LCC (J-Lead) | 32 | In System Programmable | 1000 | 16.59 | 16.59 | |
Lattice Semiconductor Corporation | 32 | Surface Mount | 4.75 V | 5.25 V | 0 °C | 70 °C | 15 ns | 44-TQFP (10x10) | 8 | 44-TQFP | 32 | In System Programmable | 1000 |
