9201 Series

Catalog

RELAY REED SPST 500MA 5V

Part	Coil Resistance	Release Time	Must Release Voltage	Seal Rating	Switching Voltage [Max]	Coil Current	Coil Type	Mounting Type	Operate Time	Must Operate Voltage	Contact Rating (Current)	Coil Voltage	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]
COTO TECHNOLOGY 9201-05-30	250 Ohms	0.1 ms	0.4 VDC	Sealed - Hermetically	200 VDC 200 VAC	0.02 A	Non Latching	Through Hole	0.4 ms	3.75 VDC	0.5 A	5 VDC	PC Pin	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-12-20TR	650 Ohms	0.1 ms	1 VDC	Sealed - Hermetically	200 VDC 200 VAC	18.5 mA	Non Latching	Surface Mount	0.4 ms	9 VDC	0.5 A	12 VDC	J Lead	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-05-00TR	250 Ohms	0.1 ms	0.4 VDC	Sealed - Hermetically	200 VDC 200 VAC	0.02 A	Non Latching	Surface Mount	0.4 ms	3.75 VDC	0.5 A	5 VDC	Gull Wing	SPST-NO (1 Form A)	85 °C	-20 ░C

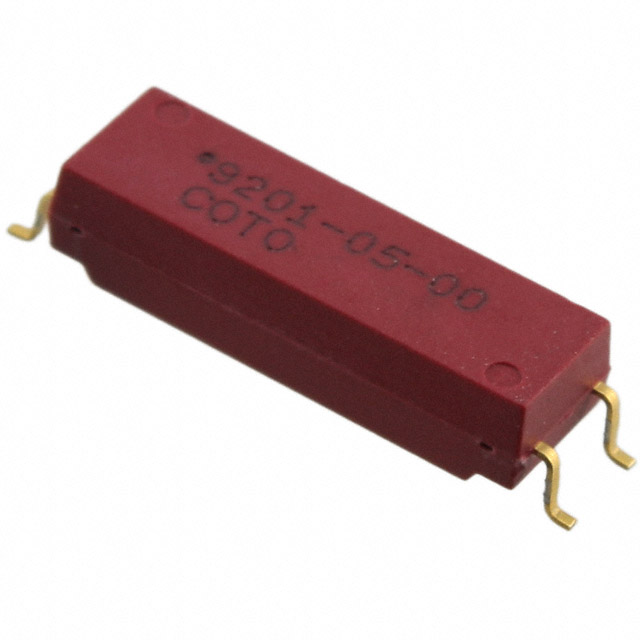

COTO TECHNOLOGY 9201-05-00	250 Ohms	0.1 ms	0.4 VDC	Sealed - Hermetically	200 VDC 200 VAC	0.02 A	Non Latching	Surface Mount	0.4 ms	3.75 VDC	0.5 A	5 VDC	Gull Wing	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-12-20	650 Ohms	0.1 ms	1 VDC	Sealed - Hermetically	200 VDC 200 VAC	18.5 mA	Non Latching	Surface Mount	0.4 ms	9 VDC	0.5 A	12 VDC	J Lead	SPST-NO (1 Form A)	85 °C	-20 ░C

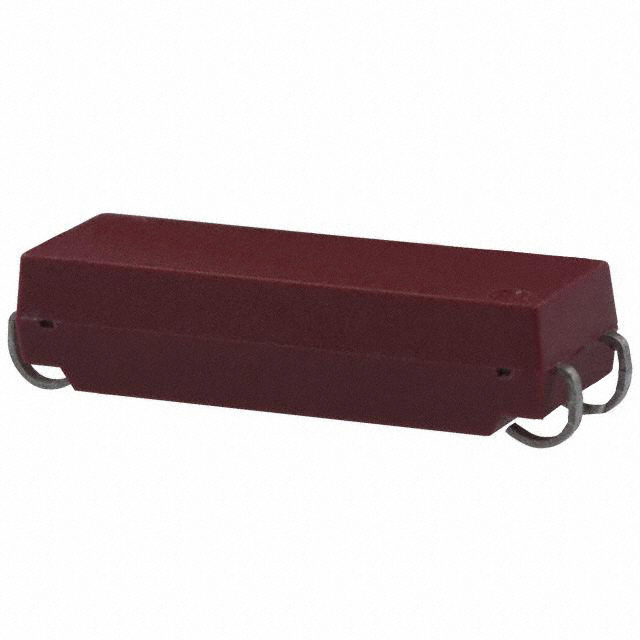

COTO TECHNOLOGY 9201-05-20	250 Ohms	0.1 ms	0.4 VDC	Sealed - Hermetically	200 VDC 200 VAC	0.02 A	Non Latching	Surface Mount	0.4 ms	3.75 VDC	0.5 A	5 VDC	J Lead	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-12-00TR	650 Ohms	0.1 ms	1 VDC	Sealed - Hermetically	200 VDC 200 VAC	18.5 mA	Non Latching	Surface Mount	0.4 ms	9 VDC	0.5 A	12 VDC	Gull Wing	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-05-20TR	250 Ohms	0.1 ms	0.4 VDC	Sealed - Hermetically	200 VDC 200 VAC	0.02 A	Non Latching	Surface Mount	0.4 ms	3.75 VDC	0.5 A	5 VDC	J Lead	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-12-10	650 Ohms	0.1 ms	1 VDC	Sealed - Hermetically	200 VDC 200 VAC	18.5 mA	Non Latching	Surface Mount	0.4 ms	9 VDC	0.5 A	12 VDC	Axial	SPST-NO (1 Form A)	85 °C	-20 ░C
COTO TECHNOLOGY 9201-12-30	650 Ohms	0.1 ms	1 VDC	Sealed - Hermetically	200 VDC 200 VAC	18.5 mA	Non Latching	Through Hole	0.4 ms	9 VDC	0.5 A	12 VDC	PC Pin	SPST-NO (1 Form A)	85 °C	-20 ░C
