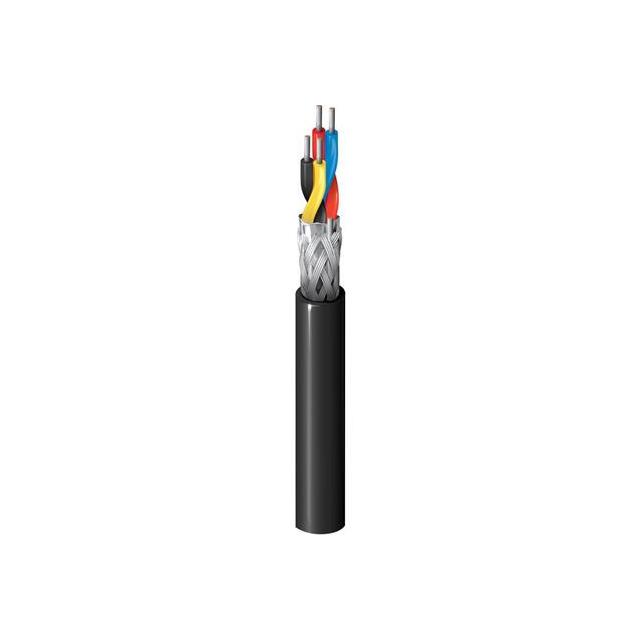

1269A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 22AWG BLK
| Part | Shield Material | Shield Coverage | Conductor Material | Conductor Strand | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Shield Type | Length | Length | Features | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Copper Tinned | Solid | Computer | 0.24 " | 6.1 mm | 300 VDC | Braid Foil | 304.8 m | 1000 ft | Drain Wire | Black | -70 °C | 200 °C | 22 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Pair | Fluorinated Ethylene-Propylene (FEP) | 0.017 " | 0.432 mm | 4 |
