ADP-SMAF Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN ADAPT JACK-JACK SMA 50 OHM
| Part | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Dielectric Material | Body Finish | Convert To (Adapter End) | Mounting Type | Frequency - Max [Max] | Conversion Type | Center Contact Plating | Convert From (Adapter End) | Impedance | Adapter Type | Style | Center Gender | Adapter Series | Mounting Feature | Fastening Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

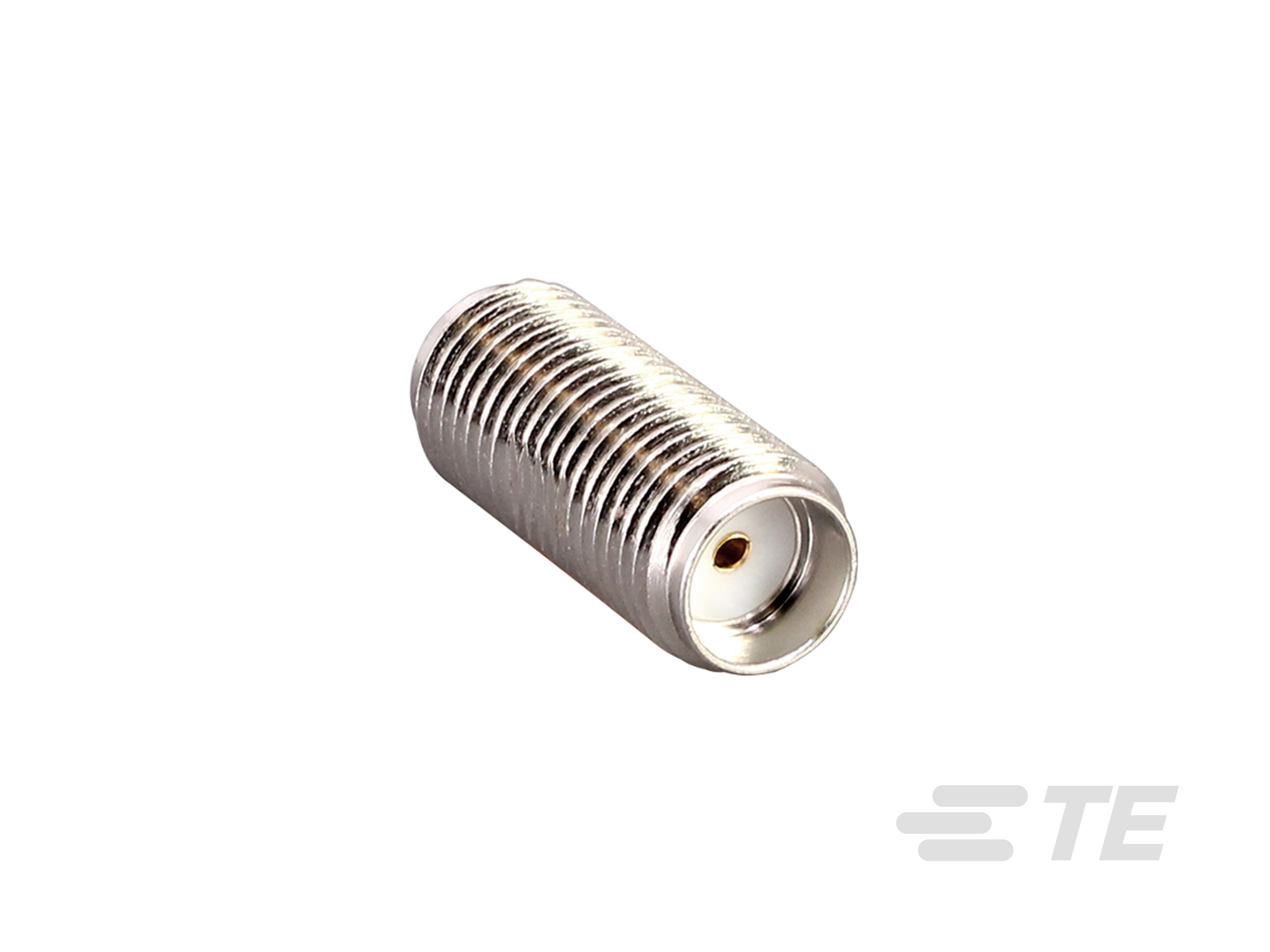

 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Nickel | SMA Jack Female Socket | Free Hanging (In-Line) | 12.4 GHz | Same Series | Gold | Female Socket SMA Jack | 50 Ohms | Jack to Jack | Straight | Female to Female | SMA to SMA | |||
 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | SMA Jack Female Socket | Panel Mount | 18 GHz | Same Series | Gold | Female Socket SMA Jack | 50 Ohms | Jack to Jack | Straight | Female to Female | SMA to SMA | Bulkhead | ||

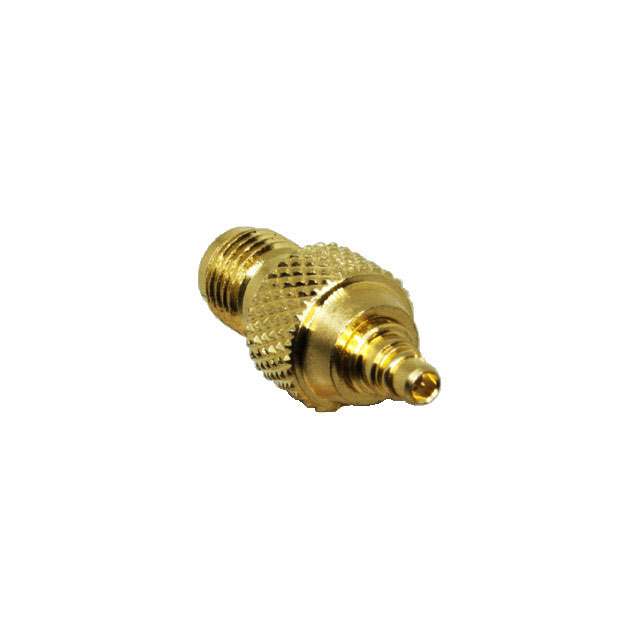

 TE Connectivity AMP Connectors | Beryllium Copper | -55 C | 125 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | MMCX Plug Male Pin | Free Hanging (In-Line) | 6000 MHz | Between Series | Gold | Female Socket SMA Jack | 50 Ohms | Plug to Jack | Straight | SMA to MMCX | Snap-On Threaded | |||
 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | SMB Jack Male Pin | Free Hanging (In-Line) | 4 GHz | Between Series | Gold | Female Socket SMA Jack | 50 Ohms | Jack to Jack | Straight | SMA to SMB | Snap-On Threaded | |||
 TE Connectivity AMP Connectors | Beryllium Copper | -55 C | 125 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Nickel | N Plug Male Pin | Free Hanging (In-Line) | 11 GHz | Between Series | Gold | Female Socket SMA Jack | 50 Ohms | Plug to Jack | Straight | |||||

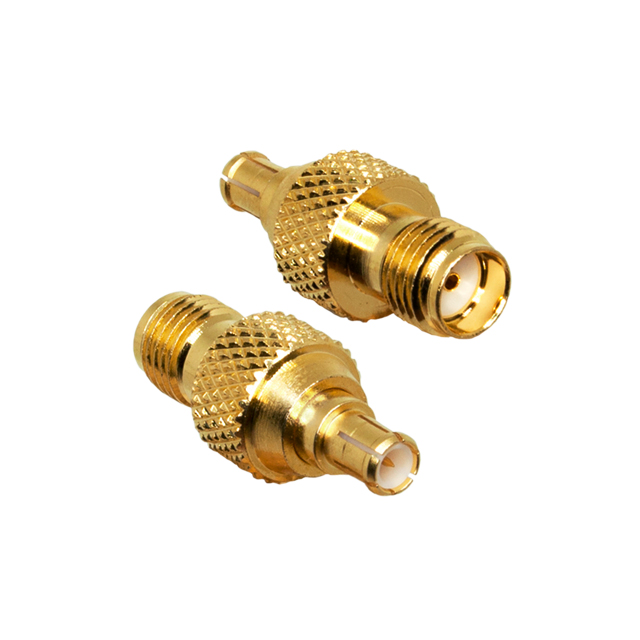

 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Beryllium Copper Brass | Polytetrafluoroethylene (PTFE) | Gold | MCX Plug Male Pin | Free Hanging (In-Line) | 6000 MHz | Between Series | Gold | Female Socket SMA Jack | 50 Ohms | Plug to Jack | Straight | SMA to MCX | Snap-On Threaded | |||

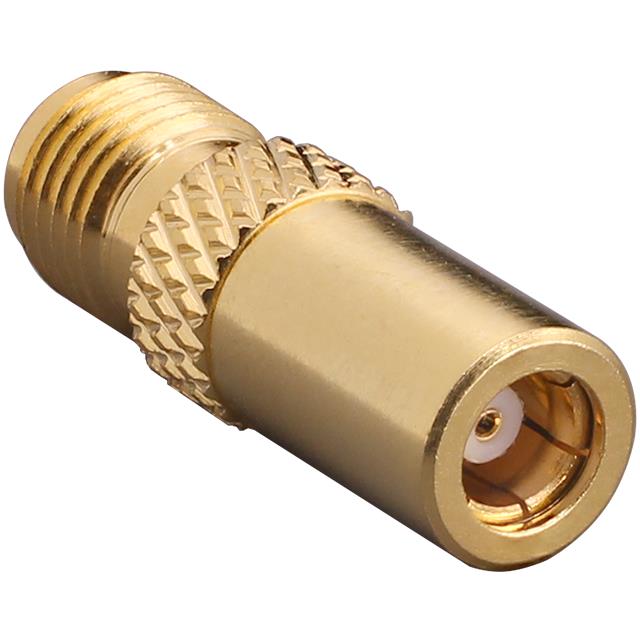

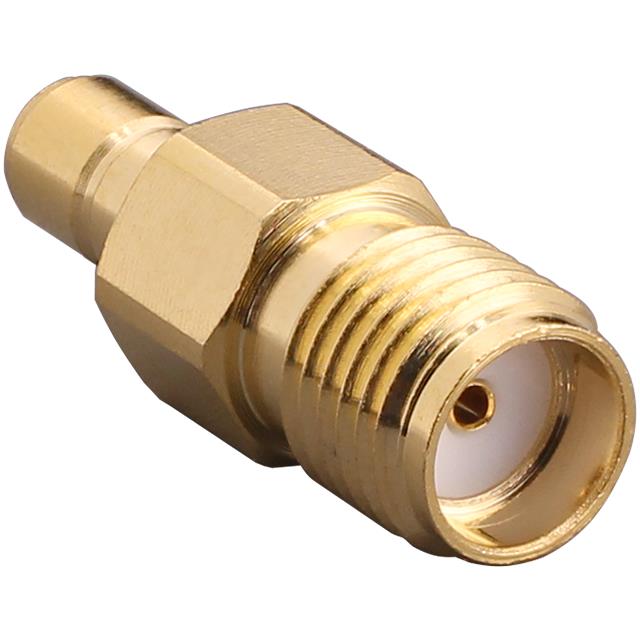

 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | Female Socket SMB Plug | Free Hanging (In-Line) | 4 GHz | Between Series | Gold | Female Socket SMA Jack | 50 Ohms | Plug to Jack | Straight | Female to Female | SMA to SMB | Snap-On Threaded | ||

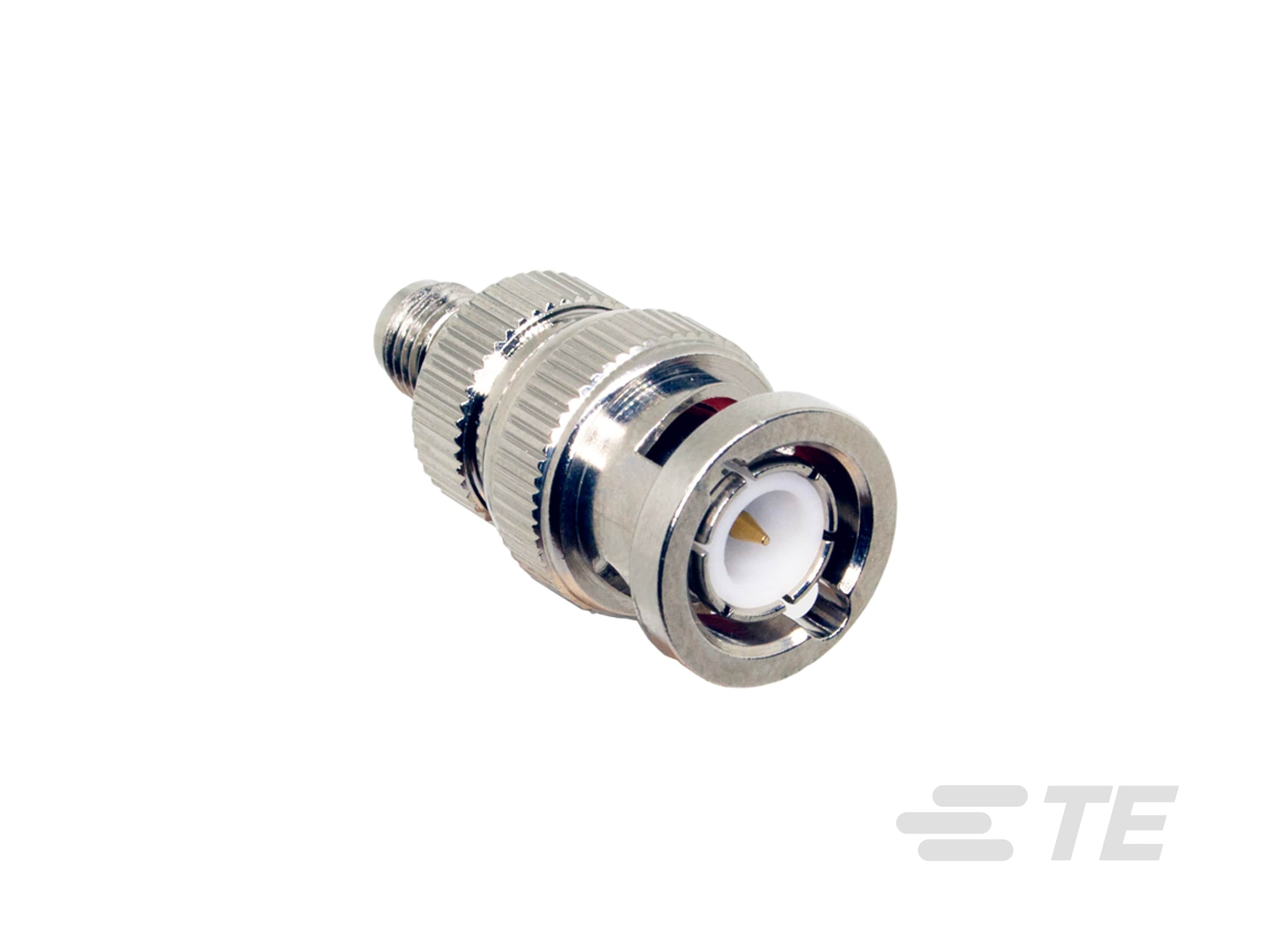

 TE Connectivity AMP Connectors | Beryllium Copper | -55 C | 125 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Nickel | SMA Jack Female Socket | Free Hanging (In-Line) | 4 GHz | Between Series | Gold | BNC Plug Male Pin | 50 Ohms | Plug to Jack | Straight | BNC to SMA | Bayonet Lock | Threaded | ||

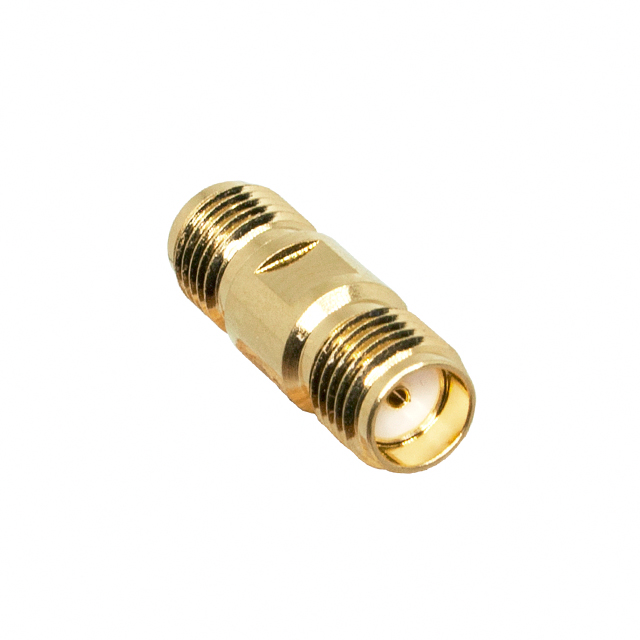

 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | SMA Jack Female Socket | Free Hanging (In-Line) | 18 GHz | Same Series | Gold | Female Socket SMA Jack | 50 Ohms | Jack to Jack | Straight | Female to Female | SMA to SMA | |||

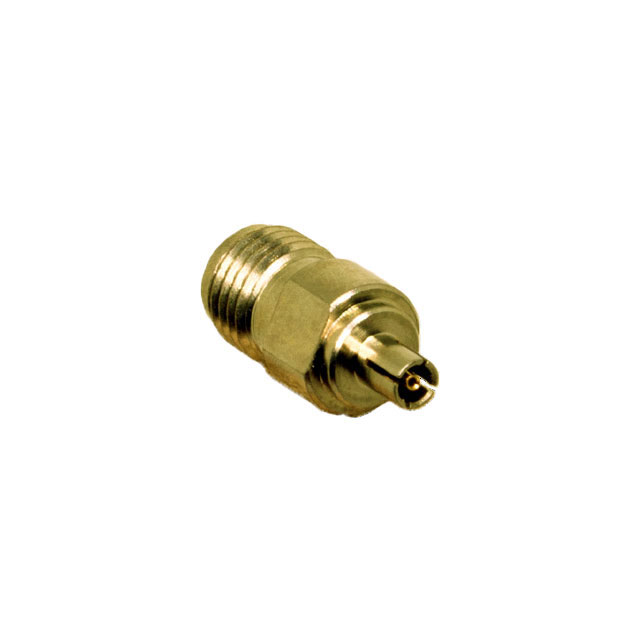

 TE Connectivity AMP Connectors | Beryllium Copper | -65 ░C | 165 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Gold | U.FL Plug Female Socket U.FL Plug Male Pin | Free Hanging (In-Line) | 6000 MHz | Between Series | Gold | Female Socket SMA Jack | 50 Ohms | Plug to Jack | Straight | Female to Female | SMA to U.FL | Snap-On Threaded |
