LICC X7R Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT KGL15ZR71A472MT NEW GLOBAL PN 10V 4700PF A 581-KGL15ZR71A472MT

Part	Temperature Coefficient	Voltage - Rated	Mounting Type	Tolerance	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case
KYOCERA AVX 0306ZC472MAT2A	X7R	10 V	MLCC Surface Mount	20 %	Bypass Decoupling	0.81 mm	0.063 "	0.032 in	1.6 mm	Low ESL (Reverse Geometry)	0.0047 µF	-55 C	125 °C	0.024 in	0.61 mm	0306 (0816 Metric)
KYOCERA AVX 0612YC104KAT2A	X7R	16 V	MLCC Surface Mount	10 %	Bypass Decoupling	1.6 mm	0.126 in	0.063 "	3.2 mm	Low ESL (Reverse Geometry)	100000 pF	-55 C	125 °C	0.037 in	0.94 mm	0612 (1632 Metric)

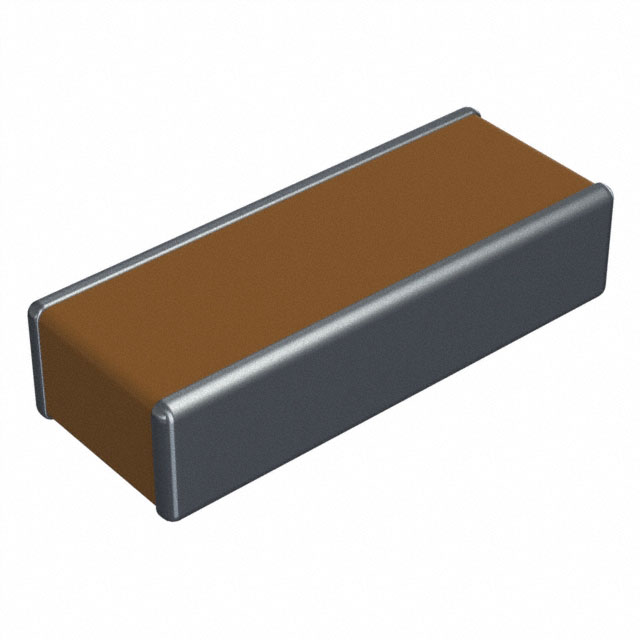

KYOCERA AVX 06123C104MAT2S	X7R	25 VDC	MLCC Surface Mount	20 %	Bypass Decoupling	1.6 mm	0.126 in	0.063 "	3.2 mm	Low ESL (Reverse Geometry)	100000 pF	-55 C	125 °C	0.03 in	0.76 mm	0612 (1632 Metric)

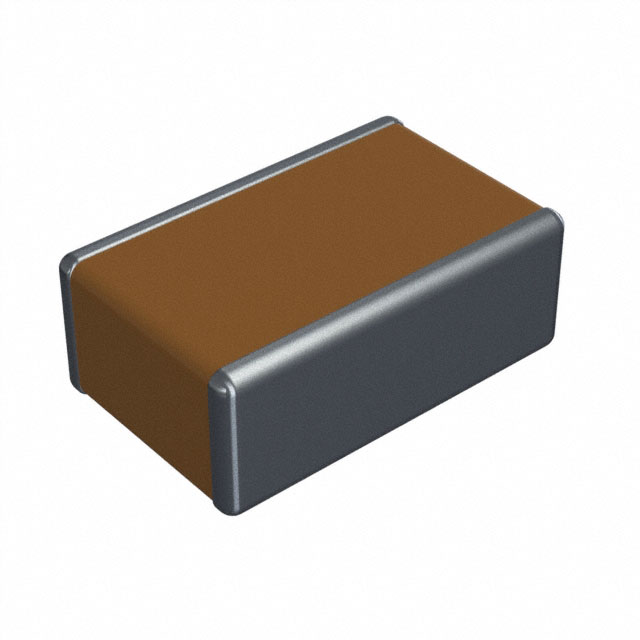

KYOCERA AVX 0508YC104KAT2W	X7R	16 V	MLCC Surface Mount	10 %	Bypass Decoupling	1.27 mm	0.079 in	0.05 "	2 mm	Low ESL (Reverse Geometry)	100000 pF	-55 C	125 °C	0.03 in	0.76 mm	0508 (1220 Metric)
KYOCERA AVX 05085C103KAT4V	X7R	50 VDC	MLCC Surface Mount	10 %	Bypass Decoupling	1.27 mm	0.079 in	0.05 "	2 mm	Low ESL (Reverse Geometry)	10000 pF	-55 C	125 °C	0.03 in	0.76 mm	0508 (1220 Metric)

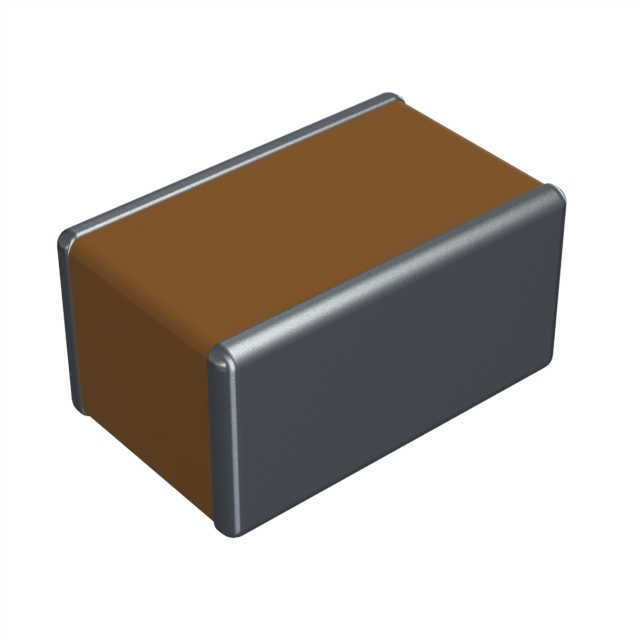

KYOCERA AVX 0508YC102KAT2A	X7R	16 V	MLCC Surface Mount	10 %	Bypass Decoupling	1.27 mm	0.079 in	0.05 "	2 mm	Low ESL (Reverse Geometry)	0.001 µF	-55 C	125 °C	0.04 "	1.02 mm	0508 (1220 Metric)
KYOCERA AVX 03063C102KAT2S	X7R	25 VDC	MLCC Surface Mount	10 %	Bypass Decoupling	0.81 mm	0.063 "	0.032 in	1.6 mm	Low ESL (Reverse Geometry)	0.001 µF	-55 C	125 °C	0.022 in	0.56 mm	0306 (0816 Metric)
KYOCERA AVX 0612YC102KAT2A	X7R	16 V	MLCC Surface Mount	10 %	Bypass Decoupling	1.6 mm	0.126 in	0.063 "	3.2 mm	Low ESL (Reverse Geometry)	0.001 µF	-55 C	125 °C	0.037 in	0.94 mm	0612 (1632 Metric)
KYOCERA AVX 0612YC104MAT2V	X7R	16 V	MLCC Surface Mount	20 %	Bypass Decoupling	1.6 mm	0.126 in	0.063 "	3.2 mm	Low ESL (Reverse Geometry)	100000 pF	-55 C	125 °C	0.037 in	0.94 mm	0612 (1632 Metric)
KYOCERA AVX 05083C683KAT2A	X7R	25 VDC	MLCC Surface Mount	10 %	Bypass Decoupling	1.25 mm	0.079 in	0.049 in	2 mm	Low ESL (Reverse Geometry)	0.068 µF	-55 C	125 °C	0.037 in	0.94 mm	0508 (1220 Metric)
