C Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 0603 100V 0.047UF X7S 10% T: 0.8MM

...

Part	Mounting Type	Applications	Voltage - Rated	Temperature Coefficient	Tolerance	Thickness (Max) [Max] [z]	Thickness (Max)	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [y]	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]

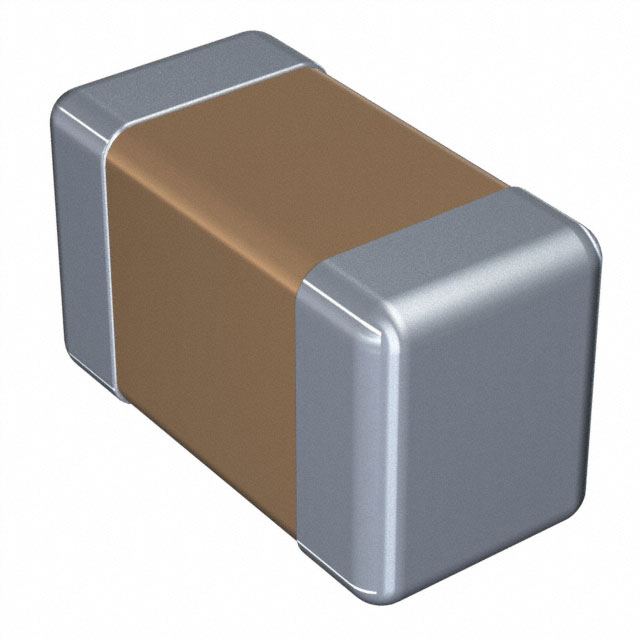

TDK Corporation C1608X7S2A473K080AB	MLCC Surface Mount	General Purpose	100 V	X7S	10 %	0.035 in	0.9 mm	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "	-55 C	125 °C

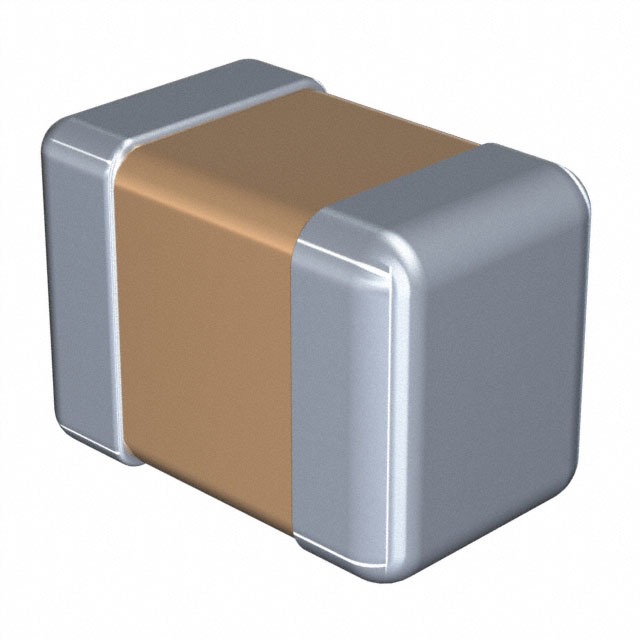

TDK Corporation C2012C0G1V303J060AC	MLCC Surface Mount	General Purpose	35 V	C0G NP0	5 %				0805	0.049 "	2 mm		0.079 in	-55 C	125 °C	Low ESL	1.25 mm	0.03 µF	0.75 mm	0.03 in
TDK Corporation C0603X5R1C104K030BC	MLCC Surface Mount	General Purpose	16 V	X5R	10 %		0.33 mm	0603 Metric	0201	0.3 mm	0.024 in		0.6 mm	-55 C	85 °C	Low ESL	0.012 in	100000 pF		0.013 "
TDK Corporation C1608X8R1H223K080AA	MLCC Surface Mount	General Purpose	50 VDC	X8R	10 %	0.035 in	0.9 mm	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "	-55 C	150 °C	High Temperature		0.022 µF
TDK Corporation C1608C0G1H472J080AA	MLCC Surface Mount	General Purpose	50 VDC	C0G NP0	5 %	0.035 in	0.9 mm	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "	-55 C	125 °C	Low ESL		0.0047 µF
TDK Corporation C2012X7T2V473M125AA	MLCC Surface Mount	General Purpose	350 V	X7T	20 %				0805	0.049 "	2 mm		0.079 in	-55 C	125 °C		1.25 mm		1.45 mm	0.057 "
TDK Corporation C3216C0G2J221K060AA	MLCC Surface Mount	General Purpose	630 V	C0G NP0	10 %				1206 (3216 Metric)	0.063 "	3.2 mm		0.126 "	-55 C	125 °C		1.6 mm	220 pF	0.75 mm	0.03 in
TDK Corporation C2012X6S1A475M085AB	MLCC Surface Mount	General Purpose	10 V	X6S	20 %				0805	0.049 "	2 mm		0.079 in	-55 C	105 ░C	Low ESL	1.25 mm	4.7 µF	1 mm	0.039 in
TDK Corporation C1608X7S0G335K080AC	MLCC Surface Mount	General Purpose	4 V	X7S	10 %	0.035 in	0.9 mm	1608 Metric	0603	0.031 in	1.6 mm	0.8 mm	0.063 "	-55 C	125 °C	Low ESL		3.3 µF
TDK Corporation C1005X6S0G334M050BB	MLCC Surface Mount	General Purpose	4 V	X6S	20 %		0.55 mm		0402 (1005 Metric)	0.02 in	1 mm		0.039 "	-55 C	105 ░C	Low ESL	0.5 mm	0.33 µF		0.022 in
