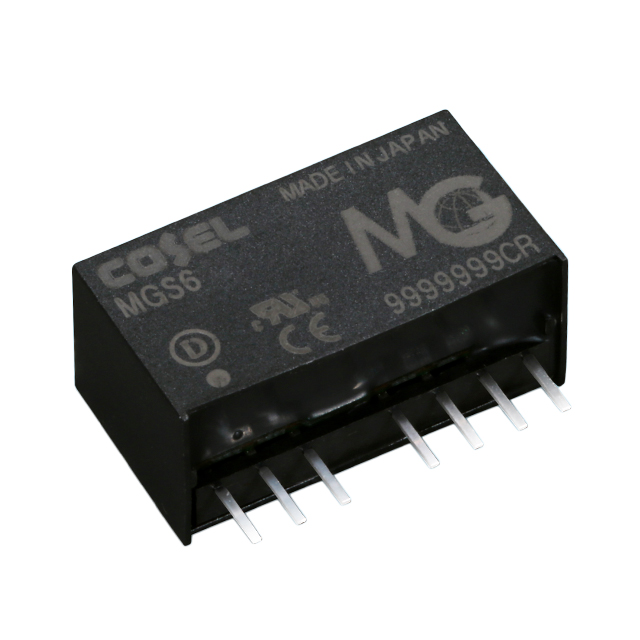

MGS6243 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 3.3V
| Part | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Features | Type | Voltage - Output 1 | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 1 | 36 V | 1.6 A | -40 °C | 85 °C | ITE (Commercial) | Through Hole | 18 V | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | 1.5 kV | OCP Remote On/Off | Isolated Module | 3.3 V | 7-SIP Module |
