RAY-101 Series

Catalog

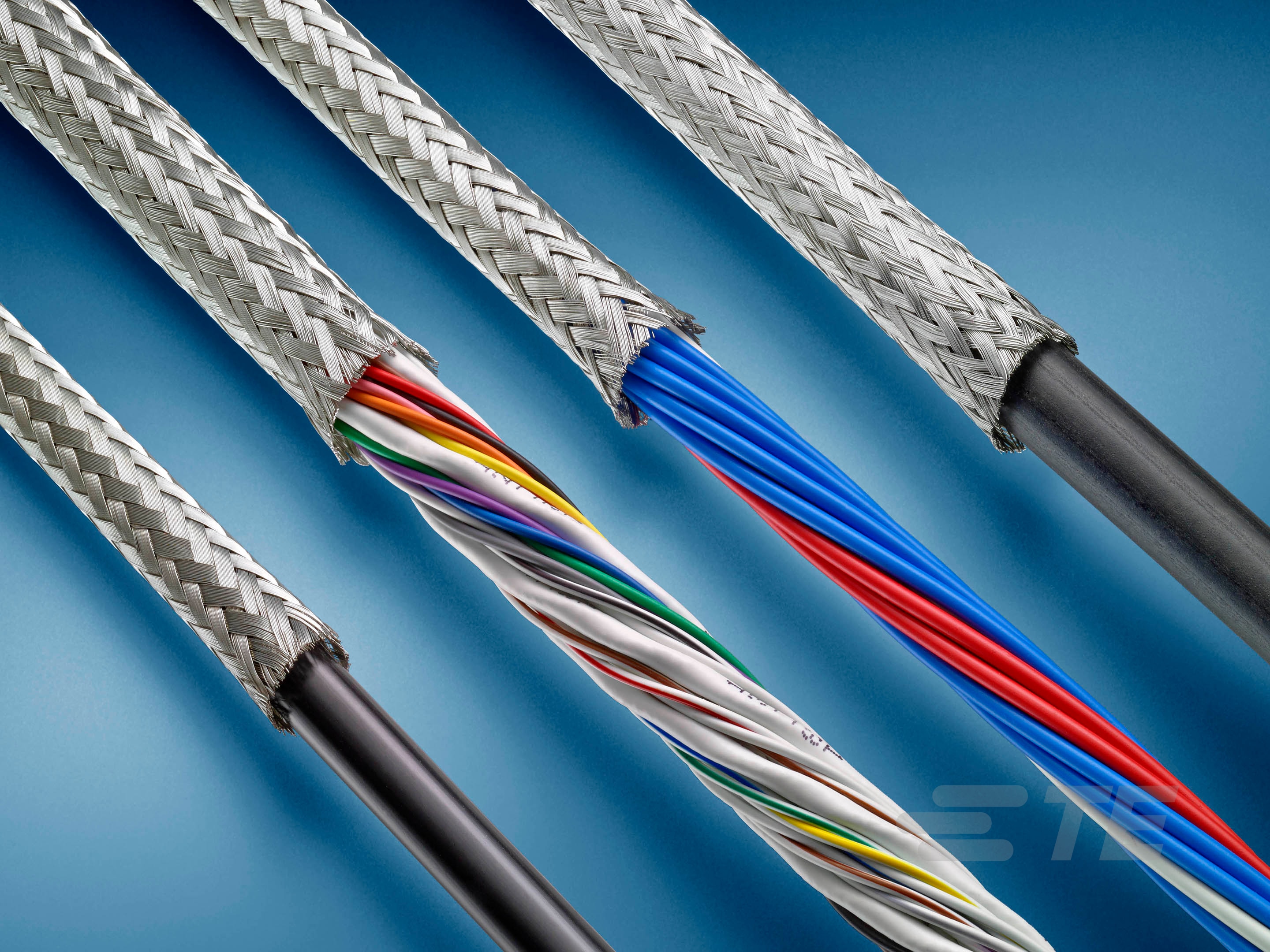

CABLE ACCESSORIES BRAIDED SLEEVING COPPER TIN RAYBRAID® REEL

Part	Spool Size [x]	Spool Size [x]	Length	Length	Length	Material	Size, Supplied [diameter]	Size, Supplied [diameter]	Number of Carriers	Type	Wire Gauge - Ends	Size, Supplied [diameter]	Length [x]	Length [x]	Size, Supplied
TE Connectivity AMP Connectors RAY-101-12.5(100)	328.1 ft	100 m	Enter Number of Meters in Order Quantity	3.3 ft 16.4 ft 82 ft 164 ft	1 m 5 m 25 m 50 m	Copper Tin Plated	0.492 in	12.5 mm	36	Tubular	36 AWG
TE Connectivity AMP Connectors RAY-101-6.0(100)			Enter Number of Meters in Order Quantity	3.3 ft 16.4 ft 82 ft 164 ft	1 m 5 m 25 m 50 m	Copper Tin Plated	0.236 in	6 mm	24	Tubular	36 AWG
TE Connectivity AMP Connectors RAY-101-12.5(10)						Copper Tin Plated	0.492 in	12.5 mm	36	Tubular	36 AWG
TE Connectivity AMP Connectors RAY-101-30.0(50)				164 ft	50 m	Copper Tin Plated	1.181 in	30 mm	48	Tubular	32 AWG	1 3/16
TE Connectivity AMP Connectors RAY-101-4.0(100)			Enter Number of Meters in Order Quantity	3.3 ft 16.4 ft 82 ft 164 ft	1 m 5 m 25 m 50 m	Copper Tin Plated	0.157 in	4 mm	24	Tubular	36 AWG
TE Connectivity AMP Connectors RAY-101-7.5(100)	1312.33 ft	400 m	Enter Number of Meters in Order Quantity	3.3 ft 16.4 ft 82 ft 164 ft	1 m 5 m 25 m 50 m	Copper Tin Plated	0.295 "	7.5 mm	24	Tubular	36 AWG
TE Connectivity AMP Connectors RAY-101-10.0(100)			Enter Number of Meters in Order Quantity	3.3 ft 16.4 ft 82 ft 164 ft	1 m 5 m 25 m 50 m	Copper Tin Plated	0.394 "	10 mm	36	Tubular	36 AWG		100 m	328.1 ft
TE Connectivity AMP Connectors RAY-101-20.0(50)			Enter Number of Meters in Order Quantity	16.4 ft 164 ft	5 m 50 m	Copper Tin Plated			48	Tubular	36 AWG				0.787 in 20 mm
