2178304 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

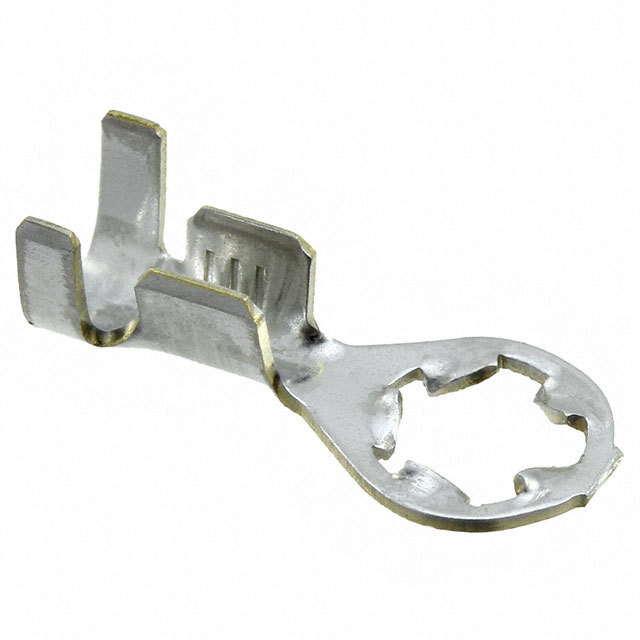

CONN RING STUD RETAIN 14-18AWG 8
| Part | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Termination | Insulation | Contact Finish | Features | Thickness | Thickness | Mounting Type | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 16.74 mm | 0.659 " | 8 Stud | Crimp | Non-Insulated | Tin | Inner Teeth | 0.02 in | 0.51 mm | Free Hanging (In-Line) | 0.17 " | 0.105 in | 2.67 mm | 4.32 mm | Stud Retaining | 14 AWG | 18 AWG | Brass |
