R30-400 Series

Catalog

STANDOFF, BRASS, HEX M-M, M3, 4MM ROHS COMPLIANT: YES

Part	Screw, Thread Size	Material	Gender	Type	Length - Overall [x]	Length - Overall [x]	Diameter - Outside	Diameter - Outside	Plating	Between Board Height	Between Board Height	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [custom]	Diameter - Outside [diameter]
Harwin Inc. R30-4000402	M3x0.5	Brass	Male	Hex Standoff	0.63 in	16 mm	5.5 mm	0.217 in	Nickel	0.157 in	4 mm
Harwin Inc. R30-4001602	M3x0.5	Brass	Male	Hex Standoff			5.5 mm	0.217 in	Nickel			16 mm	0.63 in
Harwin Inc. R30-4003002	M3x0.5	Brass	Male	Hex Standoff	1.654 in	42 mm	5.5 mm	0.217 in	Nickel	1.181 in	30 mm
Harwin Inc. R30-4000902	M3x0.5	Brass	Male	Hex Standoff	0.827 in	21 mm	5.5 mm	0.217 in	Nickel	0.354 in	9 mm
Harwin Inc. R30-4001502	M3x0.5	Brass	Male	Hex Standoff			5.5 mm	0.217 in	Nickel		15 mm		0.591 in	1.063 in	27 mm
Harwin Inc. R30-4000802	M3x0.5	Brass	Male	Hex Standoff	0.787 in	20 mm	5.5 mm	0.217 in	Nickel	0.315 in	8 mm
Harwin Inc. R30-4002502	M3x0.5	Brass	Male	Hex Standoff	1.457 in	37 mm	5.5 mm	0.217 in	Nickel	0.984 in	25 mm

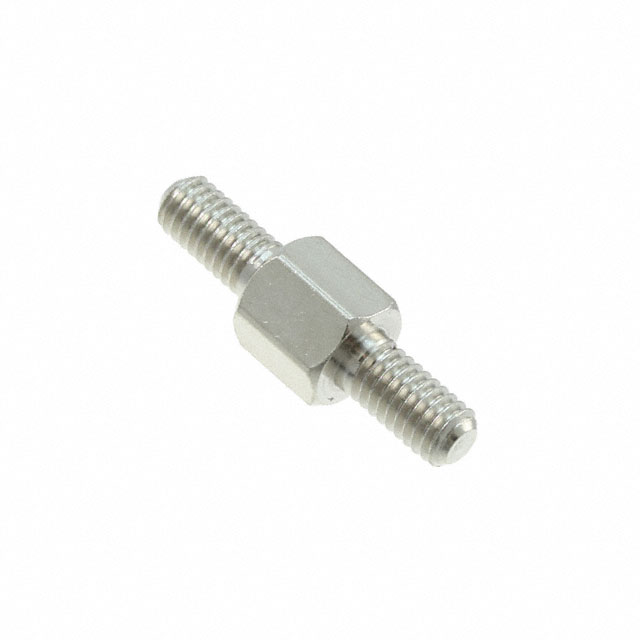

Harwin Inc. R30-4000502	M3x0.5	Brass	Male	Hex Standoff					Nickel		0.197 in			0.669 in	17 mm	5 mm	0.197 in	Hex	5 mm
Harwin Inc. R30-4001202	M3x0.5	Brass	Male	Hex Standoff	0.945 "	24 mm	5.5 mm	0.217 in	Nickel	0.472 in	12 mm
Harwin Inc. R30-4002002	M3x0.5	Brass	Male	Hex Standoff	1.26 "	32 mm	5.5 mm	0.217 in	Nickel	0.787 "	20 mm
