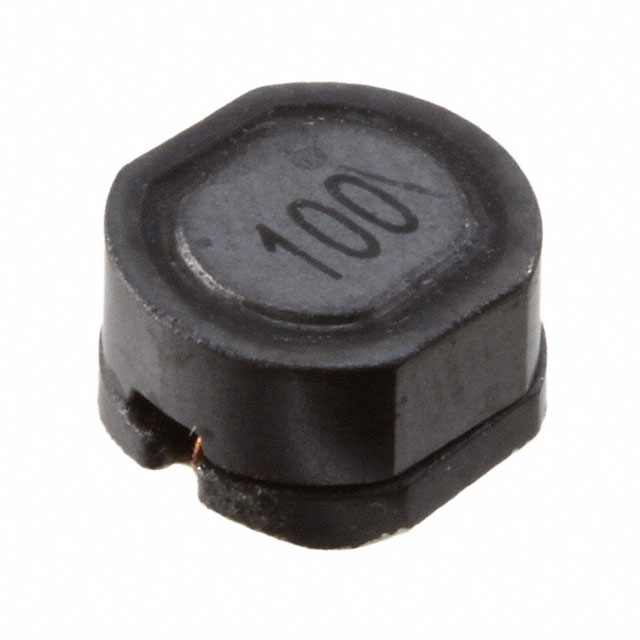

PM74SB Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SHIELDED BOBBIN CORE 33UH 15% 100KHZ FERRITE 1.06A 0.18OHM DCR T/R
| Part | Current - Saturation (Isat) | Material - Core | Inductance Frequency - Test | Height - Seated (Max) | Height - Seated (Max) | DC Resistance (DCR) [Max] | Current Rating (Amps) | Tolerance | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Frequency - Self Resonant | Shielding | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.16 A | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 180 mOhm | 970 mA | 15 % | Surface Mount | 125 °C | -40 C | Nonstandard | 15 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 33 µH | |
Bourns Inc. | 0.56 A | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 940 mOhm | 0.44 A | 10 % | Surface Mount | 125 °C | -40 C | Nonstandard | 6 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 150 µH | |
Bourns Inc. | 950 mA | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 270 mOhm | 800 mA | 15 % | Surface Mount | 125 °C | -40 C | Nonstandard | 12 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 47 µH | |
Bourns Inc. | 1.55 A | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 1.29 A | 20 % | Surface Mount | 125 °C | -40 C | Nonstandard | 19 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 18 µH | 100 mOhm | |
Bourns Inc. | 1.1 A | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 180 mOhm | 910 mA | 15 % | Surface Mount | 125 °C | -40 C | Nonstandard | 14 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 39 µH | |
Bourns Inc. | 1.35 A | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 160 mOhm | 1.06 A | 20 % | Surface Mount | 125 °C | -40 C | Nonstandard | 16 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 27 µH | |
Bourns Inc. | 2 A | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 1.65 A | 20 % | Surface Mount | 125 °C | -40 C | Nonstandard | 26 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 10 µH | 70 mOhm | |
Bourns Inc. | 720 mA | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 430 mOhm | 0.62 A | 15 % | Surface Mount | 125 °C | -40 C | Nonstandard | 9 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 82 µH | |
Bourns Inc. | 550 mA | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 1.18 Ohm | 360 mA | 10 % | Surface Mount | 125 °C | -40 C | Nonstandard | 5 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 220 µH | |
Bourns Inc. | 520 mA | Ferrite | 100 kHz | 0.193 in | 4.9 mm | 1 Ohm | 400 mA | 10 % | Surface Mount | 125 °C | -40 C | Nonstandard | 5 MHz | Shielded | Drum Core Wirewound | 7.8 mm | 7 mm | 0.307 " | 0.276 in | 180 µH |
