AMC1100 Series

±250-mV input, precision current sensing low-cost basic isolated amplifier

Catalog

±250-mV input, precision current sensing low-cost basic isolated amplifier

Part	Supplier Device Package	Output Type	Package / Case	Package / Case [custom]	Package / Case [custom]	Voltage - Supply Span (Min) [Min]	Voltage - Input Offset	Number of Circuits	Mounting Type	Voltage - Supply Span (Max) [Max]	Amplifier Type	Operating Temperature [Min]	Operating Temperature [Max]	-3db Bandwidth	Current - Supply	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Board Type	Supplied Contents	Channels per IC	Current - Output / Channel	Utilized IC / Part	Current - Supply (Main IC)
Texas Instruments AMC1100DWV	8-SOIC	Differential	8-SOIC	0.295 in	7.5 mm	2.7 V	200 çV	1	Surface Mount	5.5 V	Isolation	-40 °C	105 ░C	100 kHz	5.4 mA

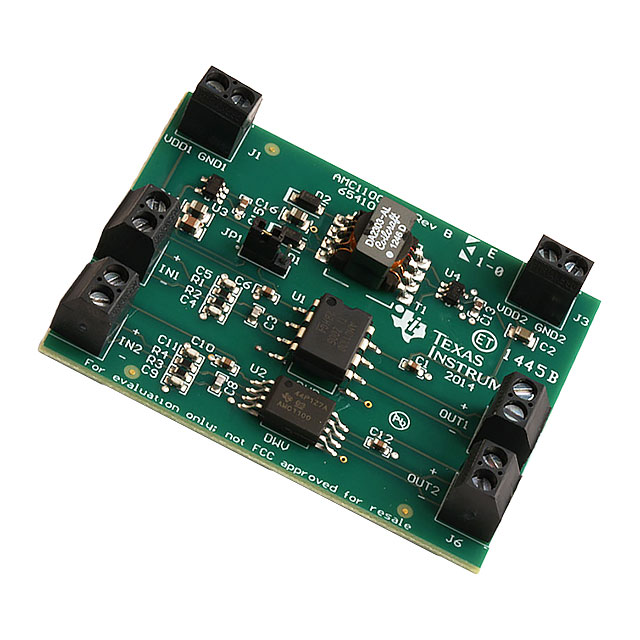

Texas Instruments AMC1100EVM		Differential									Isolation			100 kHz		5.5 V	2.7 V	Fully Populated	Board(s)	1 - Single	20 mA	AMC1100	5.4 mA
Texas Instruments AMC1100DUB	8-SOP	Differential				2.7 V	200 çV	1	Surface Mount	5.5 V	Isolation	-40 °C	105 ░C	100 kHz	5.4 mA						20 mA
Texas Instruments AMC1100DWVR	8-SOIC	Differential	8-SOIC	0.295 in	7.5 mm	2.7 V	200 çV	1	Surface Mount	5.5 V	Isolation	-40 °C	105 ░C	100 kHz	5.4 mA						20 mA

Catalog

±250-mV input, precision current sensing low-cost basic isolated amplifier

Key Features

• ±250-mV input voltage range optimized for shunt resistorsVery low nonlinearity: 0.075% max at 5 VLow offset error: 1.5 mV maxLow noise: 3.1 mVRMStypLow high-side supply current:8 mA max at 5 VInput bandwidth: 60 kHz minFixed gain: 8 (0.5% Accuracy)High common-mode rejection ratio: 108 dBLow-side operation: 3.3 VSafety-related certifications:4250-VPKbasic isolation perDIN VDE V 0884-11: 2017-013005-VRMSisolation for 1 minute per UL1577CAN/CSA no. 5A-component acceptance service notice and DIN EN 61010-1 standardWorking voltage: 1200 VPEAKTransient immunity: 2.5 kV/µs minFully specified over the extended industrial temperature range±250-mV input voltage range optimized for shunt resistorsVery low nonlinearity: 0.075% max at 5 VLow offset error: 1.5 mV maxLow noise: 3.1 mVRMStypLow high-side supply current:8 mA max at 5 VInput bandwidth: 60 kHz minFixed gain: 8 (0.5% Accuracy)High common-mode rejection ratio: 108 dBLow-side operation: 3.3 VSafety-related certifications:4250-VPKbasic isolation perDIN VDE V 0884-11: 2017-013005-VRMSisolation for 1 minute per UL1577CAN/CSA no. 5A-component acceptance service notice and DIN EN 61010-1 standardWorking voltage: 1200 VPEAKTransient immunity: 2.5 kV/µs minFully specified over the extended industrial temperature range

Description

The AMC1100 is a precision isolation amplifier with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250 VPEAK, according to DIN VDE V 0884-11: 2017-01 and UL1577. Used in conjunction with isolated power supplies, this device prevents noise currents on a high common-mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry. The AMC1100 input is optimized for direct connection to shunt resistors or other low voltage level signal sources. The excellent performance of the device enables accurate current and voltage measurement in energy-metering applications. The output signal common-mode voltage is automatically adjusted to either the 3-V or 5-V low-side supply. The AMC1100 is fully specified over the extended industrial temperature range of –40°C to +105°C and is available in the SMD-type, wide-body SOIC-8 (DWV) and gullwing-8 (DUB) packages. The AMC1100 is a precision isolation amplifier with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250 VPEAK, according to DIN VDE V 0884-11: 2017-01 and UL1577. Used in conjunction with isolated power supplies, this device prevents noise currents on a high common-mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry. The AMC1100 input is optimized for direct connection to shunt resistors or other low voltage level signal sources. The excellent performance of the device enables accurate current and voltage measurement in energy-metering applications. The output signal common-mode voltage is automatically adjusted to either the 3-V or 5-V low-side supply. The AMC1100 is fully specified over the extended industrial temperature range of –40°C to +105°C and is available in the SMD-type, wide-body SOIC-8 (DWV) and gullwing-8 (DUB) packages.
