PBC23 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 23POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Termination	Contact Type	Fastening Type	Overall Contact Length	Overall Contact Length	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions	Contact Finish - Post	Style	Shrouding	Mounting Type	Insulation Material	Insulation Color	Contact Length - Post [custom]	Contact Length - Post [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]

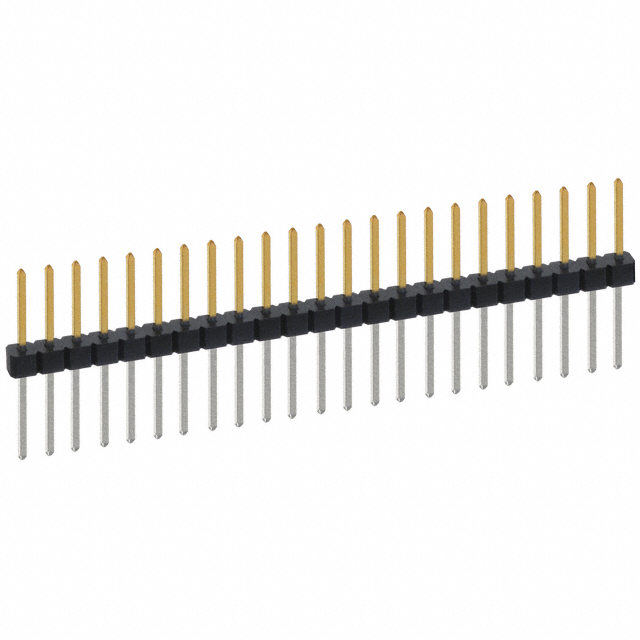

Sullins Connector Solutions PBC23SAHN	2.54 µm	100 µin	0.82 in	20.83 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	29.21 mm	1.15 in	Header Breakaway	0.23 in	5.84 mm	1	23	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black
Sullins Connector Solutions PBC23SFBN	2.54 µm	100 µin	0.22 in	5.58 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	16.21 mm	0.638 in	Header Breakaway	0.318 in	8.08 mm	1	23	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black
Sullins Connector Solutions PBC23SABN	2.54 µm	100 µin	0.23 "	5.84 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	14.22 mm	0.56 in	Header Breakaway	0.23 in	5.84 mm	1	23	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black

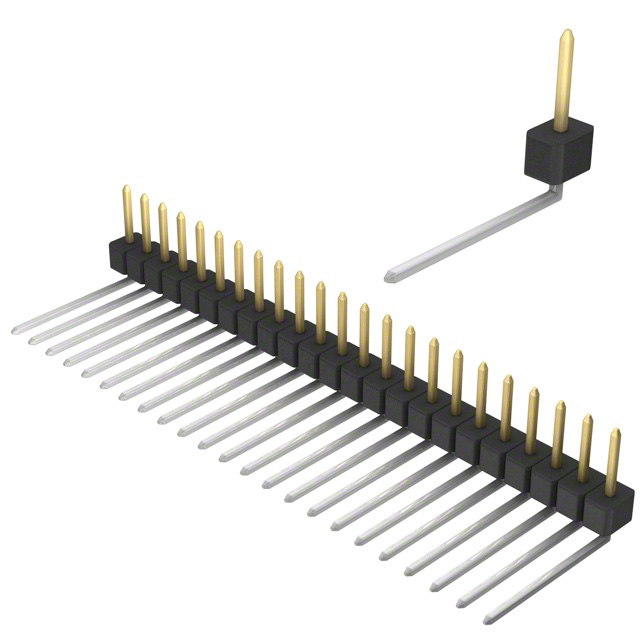

Sullins Connector Solutions PBC23SBEN	2.54 µm	100 µin	0.5 "	12.7 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.14 in	3.56 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull			Header Breakaway	0.23 in	5.84 mm	1	23	Tin	Board to Board Cable	Unshrouded	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Black
Sullins Connector Solutions PBC23SAFN	2.54 µm	100 µin			0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	24.13 mm	0.95 in	Header Breakaway	0.23 in	5.84 mm	1	23	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black	15.75 mm	0.62 "
Sullins Connector Solutions PBC23SAGN	2.54 µm	100 µin	0.72 "	18.29 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	26.67 mm	1.05 in	Header Breakaway	0.23 in	5.84 mm	1	23	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black

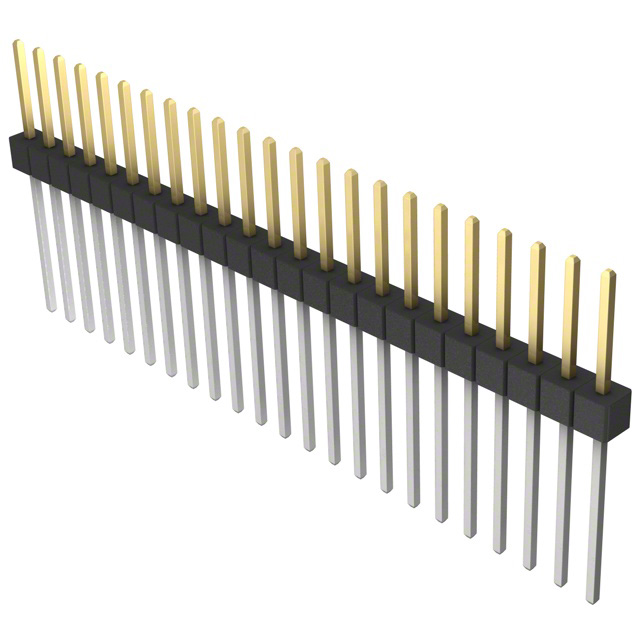

Sullins Connector Solutions PBC23SFEN	2.54 µm	100 µin	0.52 in	13.21 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	23.83 mm	0.938 in	Header Breakaway	0.318 in	8.08 mm	1	23	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black
Sullins Connector Solutions PBC23DGAN	2.54 µm	100 µin	0.1 in	2.54 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze			-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull			Header Breakaway	0.318 in	8.08 mm		46	Tin	Board to Board Cable	Unshrouded	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Black			0.1 in	2.54 mm	6.1 mm	0.24 in	2
Sullins Connector Solutions PBC23DFAN	2.54 µm	100 µin	0.12 in	3.05 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull			Header Breakaway	0.318 in	8.08 mm		46	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black			0.1 in	2.54 mm			2	13.67 mm	0.538 in
Sullins Connector Solutions PBC23DFDN	2.54 µm	100 µin	0.42 in	10.67 mm	0.25 µm	10 µin	0.1 "	2.54 mm	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	-65 ░C	125 °C	3 A	Square	Gold	All	Solder	Male Pin	Push-Pull	21.29 mm	0.838 in	Header Breakaway	0.318 in	8.08 mm		46	Tin	Board to Board Cable	Unshrouded	Through Hole	Polybutylene Terephthalate (PBT)	Black			0.1 in	2.54 mm			2
