PE4561 Series
Manufacturer: Pasternack
Beta
⌘K

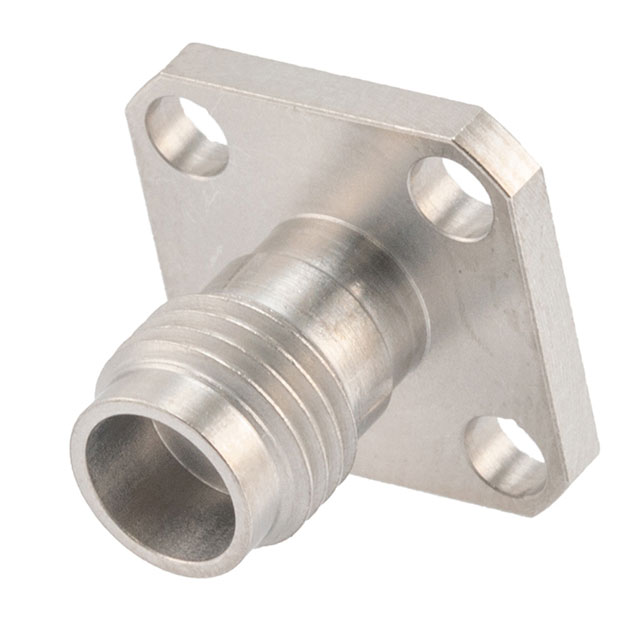

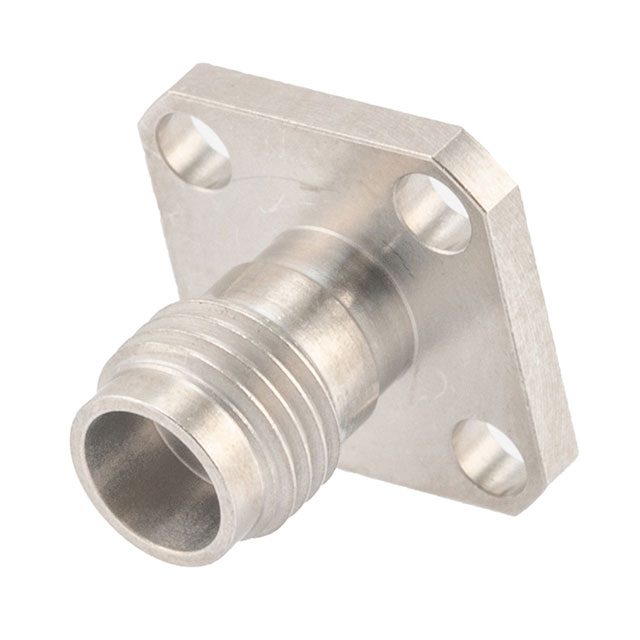

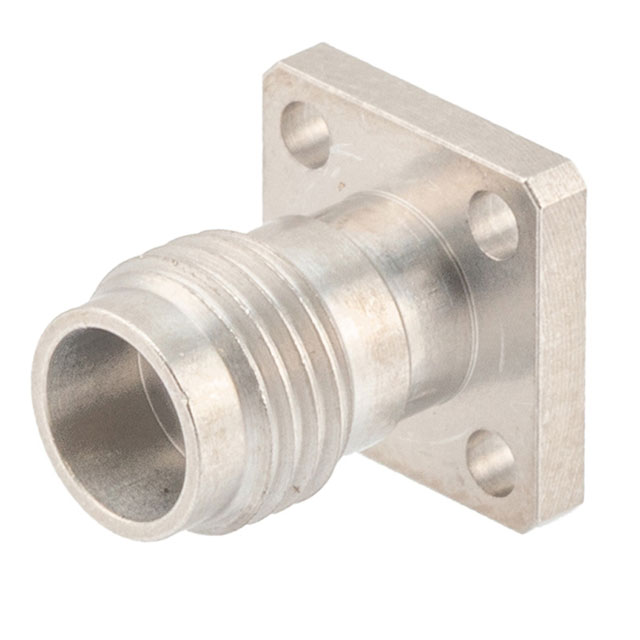

2.4(F) FLD RPL 4HOLE 0.012" PIN
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Center Contact Plating | Fastening Type | Shield Termination | Features | Housing Color | Mounting Type | Connector Style [x] | Connector Style | Connector Style | Number of Ports | Mounting Feature | Contact Termination | Connector Type | Frequency - Max [Max] | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | Stainless Steel | -40 C | 165 °C | 500 | Polyetherimide (PEI) | Gold | Threaded | Screw | Field Replaceable For Hermetically Sealed Pin | Silver | Panel Mount | 2.4 mm | OS-50 | APC-2.4 | 1 | Flange | Compression | Receptacle Female Socket | 50 GHz | 50 Ohms | Beryllium Copper |
 Pasternack | Stainless Steel | -40 C | 165 °C | 500 | Polyetherimide (PEI) | Gold | Threaded | Screw | Field Replaceable For Hermetically Sealed Pin | Silver | Panel Mount | 2.4 mm | OS-50 | APC-2.4 | 1 | Flange | Compression | Receptacle Female Socket | 50 GHz | 50 Ohms | Beryllium Copper |
 Pasternack | Stainless Steel | -40 C | 165 °C | 500 | Polyetherimide (PEI) | Gold | Threaded | Screw | Field Replaceable For Hermetically Sealed Pin | Silver | Panel Mount | 2.4 mm | OS-50 | APC-2.4 | 1 | Flange | Compression | Receptacle Female Socket | 50 GHz | 50 Ohms | Beryllium Copper |
