XZMDKDGK55 Series

Manufacturer: SunLED

Catalog

LED GREEN/RED CLEAR 4SMD

Part	Configuration	Wavelength - Peak [custom]	Lens Size [diameter]	Lens Color	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Lens Style	Wavelength - Dominant	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Millicandela Rating	Supplier Device Package	Mounting Type	Viewing Angle	Current - Test [custom]	Current - Test [custom]	Lens Size [y]	Lens Size [x]	Millicandela Rating [custom]	Millicandela Rating [custom]
SunLED XZMDKDGK55W-8	Independent	515 nm 645 nm	1.6 mm	Colorless	1.95 V 3.3 V	Green Red	1206 (3216 Metric)	Round with Domed Top	525nm Green 630nm Red	1.8 mm	1.6 mm	3.2 mm	Clear	397 mcd 647 mcd	4-SMD	Surface Mount	30 °	20 mA	20 mA
SunLED XZMDKDGK55W-4	Bidirectional	515 nm 645 nm		Colorless	1.95 V 3.3 V	Green Red	1206 (3216 Metric)	Rectangle with Flat Top	525nm Green 630nm Red	1.3 mm	1.6 mm	3.2 mm	Clear		2-SMD	Surface Mount	140 °	20 mA	20 mA	1.6 mm	2 mm	379 mcd	69 mcd

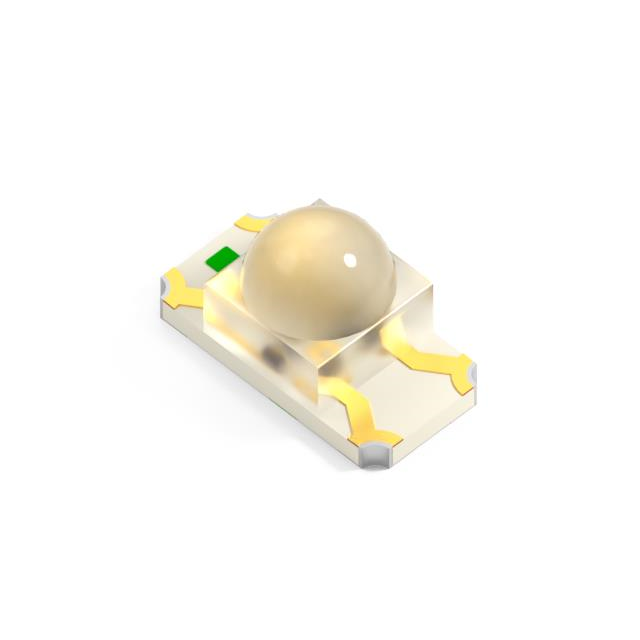

SunLED XZMDKDGK55W-8RT	Independent	515 nm 645 nm	1.6 mm	Colorless	1.95 V 3.3 V	Green Red	1206 (3216 Metric)	Round with Domed Top	525nm Green 630nm Red	2 mm	1.6 mm	3.2 mm	Clear	647 mcd 1495 mcd	Chip LED	Surface Mount Bottom Entry	30 °	20 mA	20 mA
