151216 Series

Catalog

CONN HEADER R/A 16POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish - Mating	Number of Rows [custom]	Insulation Color	Shrouding	Insulation Height	Insulation Height	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Termination	Style	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Height [z]	Insulation Height [z]
3M Electronic Specialty 151216-7422-RB	200 µin	5.08 µm	All	2 mm	0.079 in	0.118 in	3 mm	Male Pin	UL94 V-0	Square	3.86 mm	0.152 in	Copper Alloy	Gold	2	Black	Unshrouded	0.165 in	4.2 mm	Push-Pull	-55 C	105 ░C	Tin	16	Solder	Board to Board Cable	Right Angle Through Hole	0.079 "	2 mm	0.76 Ám	30 Áin	Header

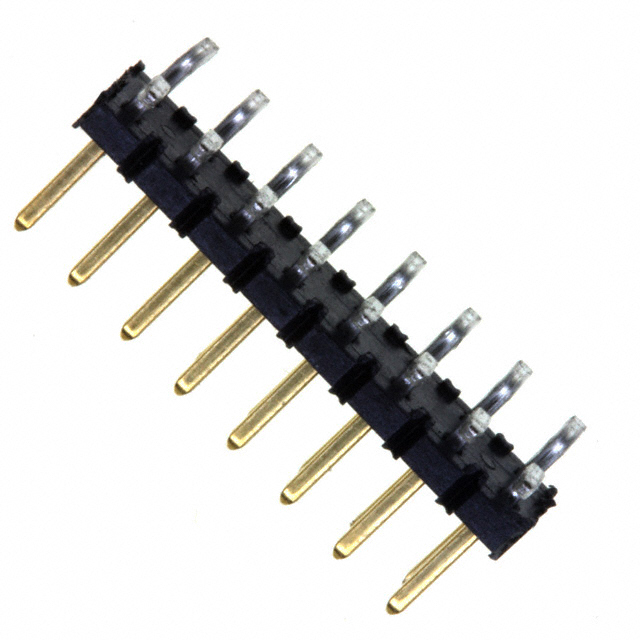

3M Electronic Specialty 151216-2320-RB	200 µin	5.08 µm	All	2 mm	0.079 in			Male Pin	UL94 V-0	Square	3.3 mm	0.13 in	Copper Alloy	Gold	2	Black	Unshrouded			Push-Pull	-55 C	105 ░C	Tin	16	Solder		Surface Mount	0.079 "	2 mm	0.76 Ám	30 Áin	Header	0.06 in	1.52 mm
3M Electronic Specialty 151216-2420-TB	200 µin	5.08 µm	All	2 mm	0.079 in			Male Pin	UL94 V-0	Square	3.86 mm	0.152 in	Copper Alloy	Gold	2	Black	Unshrouded			Push-Pull	-55 C	105 ░C	Tin-Lead	16	Solder		Surface Mount	0.079 "	2 mm	0.76 Ám	30 Áin	Header	0.06 in	1.52 mm
