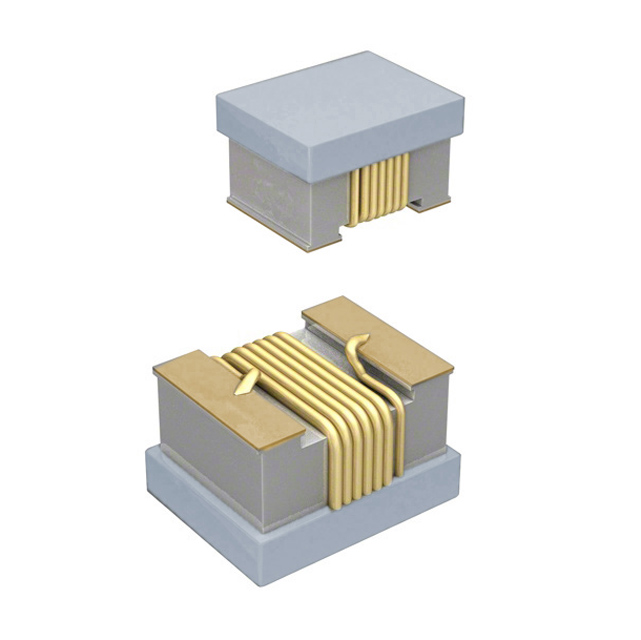

AISM-1812 Series

Catalog

FIXED IND 180NH 700MA 240MOHM SM

Part	DC Resistance (DCR) [Max]	Q @ Freq	Inductance	Package / Case	Mounting Type	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Shielding	Frequency - Self Resonant	Type	Inductance Frequency - Test	Current Rating (Amps)	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	DC Resistance (DCR)	Package / Case	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)
Abracon LLC AISM-1812-R18M-T	240 mOhm	25.2 MHz 35	180 nH	1812 (4532 Metric)	Surface Mount	20 %	0.177 in	4.5 mm	3.2 mm	0.126 in	Unshielded	220 MHz	Drum Core Wirewound	25.2 MHz	700 mA	Ferrite	85 °C	-40 C
Abracon LLC AISM-1812-221K-T	10 Ohm	40 796 kHz	220 µH	1812 (4532 Metric)	Surface Mount	10 %	0.177 in	4.5 mm	3.2 mm	0.126 in	Unshielded	4 MHz	Drum Core Wirewound	0.796 MHz	100 mA	Ferrite	85 °C	-40 C
Abracon LLC AISM-1812-R10M-T		25.2 MHz 35	100 nH	1008	Surface Mount	20 %	0.098 in	2.5 mm	2 mm	0.079 in	Unshielded	300 MHz	Molded	25.2 MHz	800 mA		85 °C	-40 C	1008	200 mOhm	2520 Metric	AEC-Q200	1.9 mm	0.075 "	800 mA
Abracon LLC AISM-1812-151K-T	9 Ohm	40 796 kHz	150 µH	1812 (4532 Metric)	Surface Mount	10 %	0.177 in	4.5 mm	3.2 mm	0.126 in	Unshielded	5 MHz	Drum Core Wirewound	0.796 MHz	0.105 A	Ferrite	85 °C	-40 C
Abracon LLC AISM-1812-R22M-T	300 mOhm	25.2 MHz 40	220 nH	1812 (4532 Metric)	Surface Mount	20 %	0.177 in	4.5 mm	3.2 mm	0.126 in	Unshielded	200 MHz	Drum Core Wirewound	25.2 MHz	665 mA	Ferrite	85 °C	-40 C
