GMSTBVA Series
Manufacturer: Phoenix Contact
Beta
⌘K
PLUGGABLE TERMINAL BLOCKS GMSTBVA 2 5 HC 4-G-7 62-LR
| Part | Voltage - UL | Contact Mating Finish | Color | Voltage - IEC | Type | Current - IEC | Termination Style | Mounting Type | Header Orientation | Positions Per Level | Current - UL | Number of Levels | Pitch | Pitch | Number of Positions | Features | Contact Tail Length | Contact Tail Length | Housing Material | Material Flammability Rating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 300 V | Tin | Green | 630 V | Header Male Pins Shrouded (4 Side) | 16 A | Solder | Through Hole | Vertical | 4 | 18.5 A | 1 | 0.3 in | 7.62 mm | 4 | Locking Ramp Mounting Flange | ||||||

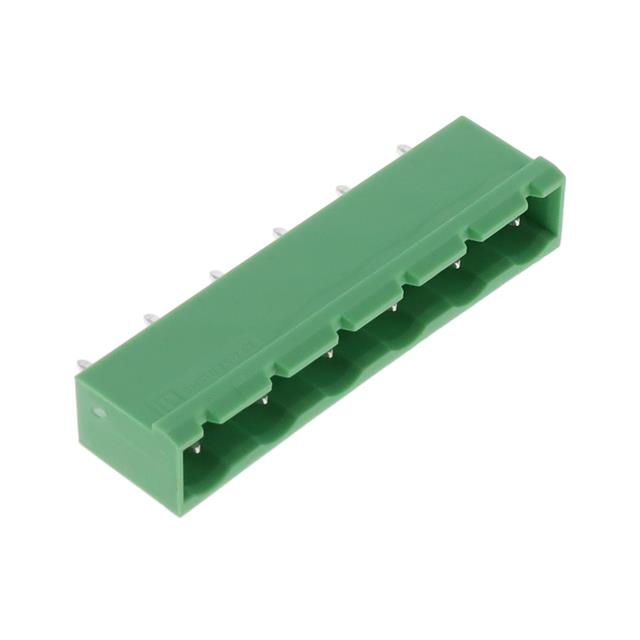

 Phoenix Contact | 300 V | Tin | Green | 630 V | Header Male Pins Shrouded (4 Side) | 16 A | Solder | Through Hole | Vertical | 6 | 18.5 A | 1 | 0.3 in | 7.62 mm | 6 | 3.9 mm | 0.154 in | Polyamide (PA) Nylon | UL94 V-0 | 0.472 " | 12 mm | |
 Phoenix Contact | 300 V | Tin | Green | 630 V | Header Male Pins Shrouded (4 Side) | 12 A | Solder | Through Hole | Vertical | 11 | 1 | 0.295 in | 7.5 mm | 11 | 3.9 mm | 0.154 in | Polyamide (PA) Nylon | UL94 V-0 | 0.472 " | 12 mm | ||
 Phoenix Contact | 300 V | Tin | Green | 630 V | Header Male Pins Shrouded (4 Side) | 12 A | Solder | Through Hole | Vertical | 10 | 1 | 0.295 in | 7.5 mm | 10 | 3.9 mm | 0.154 in | Polyamide (PA) Nylon | UL94 V-0 | 0.472 " | 12 mm | ||

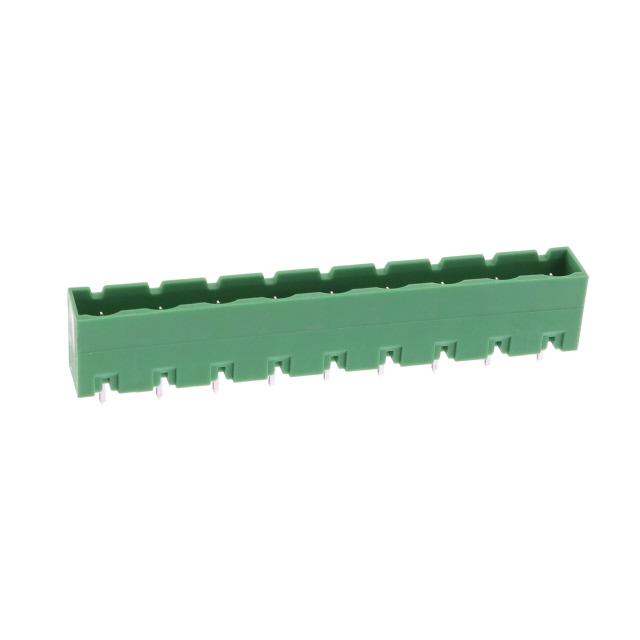

 Phoenix Contact | 300 V | Tin | Green | 630 V | Header Male Pins Shrouded (4 Side) | 12 A | Solder | Through Hole | Vertical | 9 | 1 | 0.3 in | 7.62 mm | 9 | 3.9 mm | 0.154 in | Polyamide (PA) Nylon | UL94 V-0 | 0.472 " | 12 mm |
