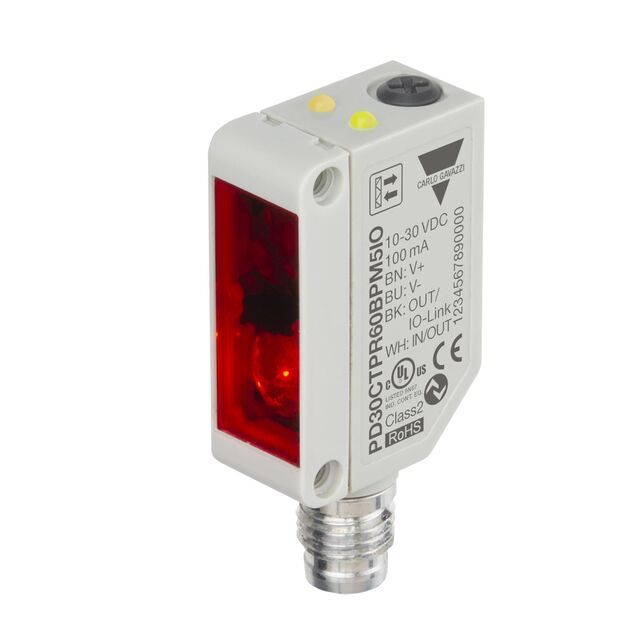

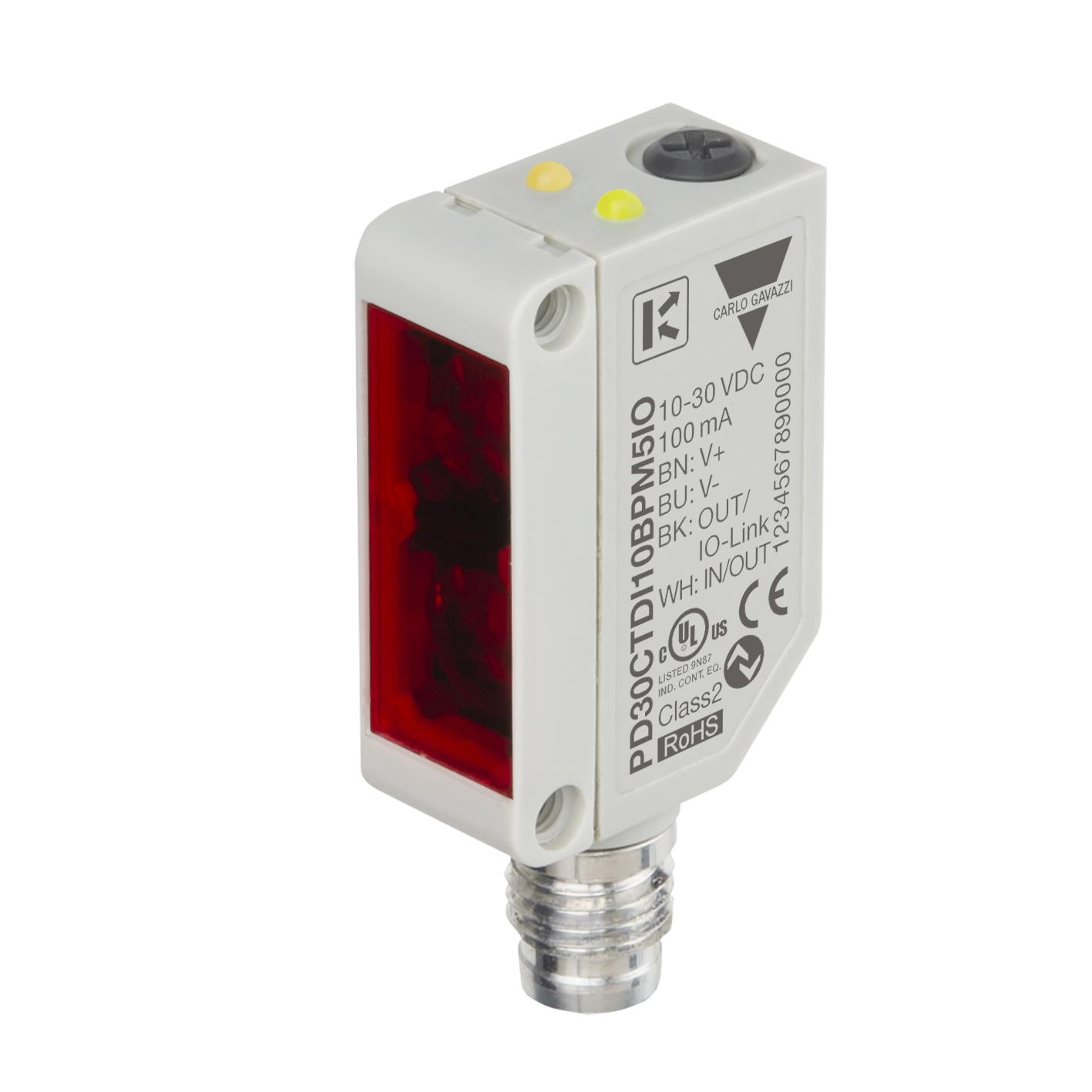

PD30CT Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K
PHOTOELECTRIC SENSORS DIFFUSE-REFLECTIVE PHOTOELECTRIC SENSOR WITH ADJUSTABLE BACKGROUND SUPPRESSION, IO-LINK, RANGE: 0-250MM, POINTSPOT POLARITY FREE RED LIGHT 620NM, POWER SUPPLY 10-30VDC, NPN/PNP/PUSH-PULL, N.O., N.C., 2M CABLE, 10X30X20MM HOUSING PLASTIC, IP67
| Part | Sensing Method | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Connection Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Light Source | Response Time | Adjustment Type | Output Configuration | Sensing Distance | Light Source | Sensing Distance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | Background Suppression | IP67 | -25 °C | 60 °C | Connector M8 | 10 VDC | 30 VDC | Red (620nm) | 1 ms | Adjustable Potentiometer | NPN/PNP Push-Pull | |||
 Carlo Gavazzi Inc. | Polarized Retroreflective | IP67 | -25 °C | 60 °C | Connector M8 | 10 VDC | 30 VDC | Red (620nm) | 500 µs | Adjustable Potentiometer | NPN/PNP Push-Pull | 5 m 196.85 in | ||
 Carlo Gavazzi Inc. | Diffuse Reflective | IP67 | -25 °C | 60 °C | Connector M8 | 10 VDC | 30 VDC | Infrared | 500 µs | Adjustable Potentiometer | NPN/PNP Push-Pull | 1 m | 850 nm | 39.37 in |
