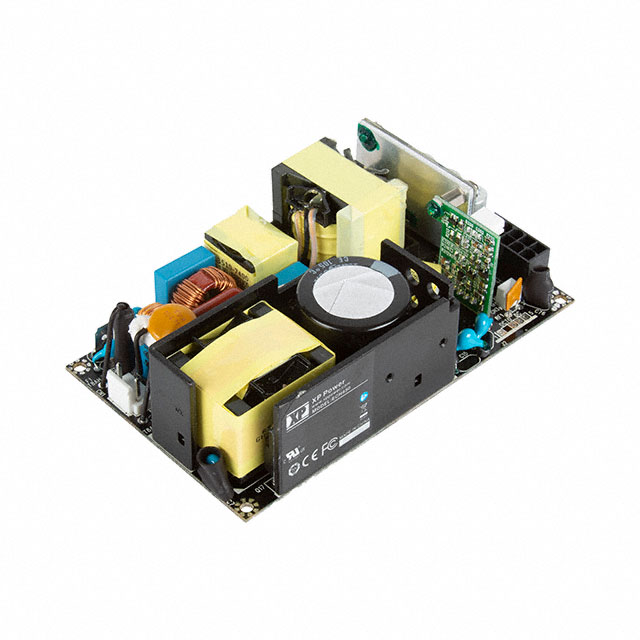

ECH450 Series

Manufacturer: XP Power

Catalog

SWITCHING POWER SUPPLIES AC-DC 450W 3X5" ITE & MEDICAL

Part	Features	Efficiency	Mounting Type	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Standard Number	Applications	Voltage - Isolation	Current - Output 1	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [custom]
XP Power ECH450PS24	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount	451 W	250 W	32 mm	1.26 "	127 mm	3 "	76.2 mm	5 "	1	Open Frame	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	10.4 A	24 V

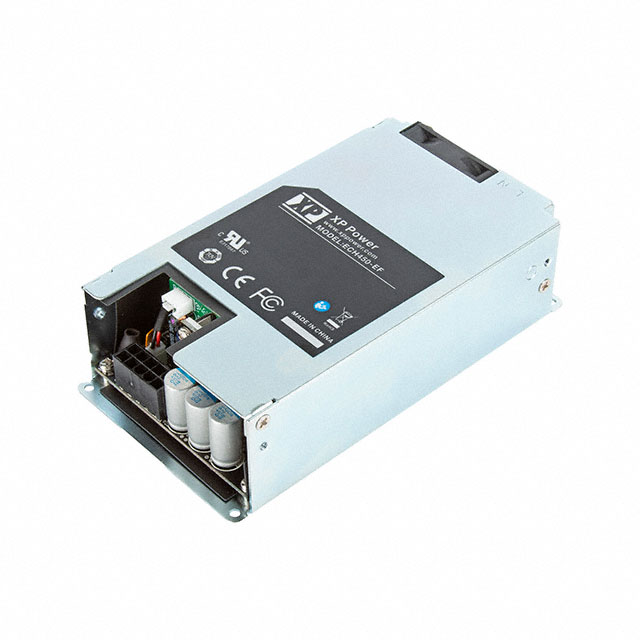

XP Power ECH450PS15-EF	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount		249 W 450 W		1.6 "	148.1 mm	3.15 in		5.83 "	1	Enclosed	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	16.6 A	15 V	80 mm	40.6 mm
XP Power ECH450PS54	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount	448 W	250 W	32 mm	1.26 "	127 mm	3 "	76.2 mm	5 "	1	Open Frame	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	4.63 A	54 V
XP Power ECH450PS24-EF	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount	451 W	250 W		1.6 "	148.1 mm	3.15 in		5.83 "	1	Enclosed	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	10.4 A	24 V	80 mm	40.6 mm
XP Power ECH450PS12-EF	Remote On/Off Standby Output Universal Input	93 %	Chassis Mount		250 W 450 W		1.6 "	148.1 mm	3.15 in		5.83 "	1	Enclosed	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	20.8 A	12 V	80 mm	40.6 mm
XP Power ECH450PS48	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount	451 W	250 W	32 mm	1.26 "	127 mm	3 "	76.2 mm	5 "	1	Open Frame	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	5.2 A	48 V
XP Power ECH450PS36	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount		248 W 450 W	32 mm	1.26 "	127 mm	3 "	76.2 mm	5 "	1	Open Frame	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	6.9 A				36 V
XP Power ECH450PS15	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount		249 W 450 W	32 mm	1.26 "	127 mm	3 "	76.2 mm	5 "	1	Open Frame	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	16.6 A	15 V
XP Power ECH450PS19-EF	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount	450 W	247 W		1.6 "	148.1 mm	3.15 in		5.83 "	1	Enclosed	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	13 A	19 V	80 mm	40.6 mm
XP Power ECH450PS36-EF	Remote On/Off Standby Output Universal Input	95 %	Chassis Mount		248 W 450 W		1.6 "	148.1 mm	3.15 in		5.83 "	1	Enclosed	70 °C	-20 °C	264 VAC	90 VAC	CB CE TUV UL	62368-1	ITE (Commercial) Medical	4000 V	6.9 A		80 mm	40.6 mm	36 V
