LT1511 Series

Catalog

CONSTANT-CURRENT/CONSTANT-VOLTAGE 3A BATTERY CHARGER WITH INPUT CURRENT LIMITING

Part	Package / Case	Package / Case [custom]	Package / Case [custom]	Voltage - Supply (Max) [Max]	Mounting Type	Charge Current - Max [Max]	Battery Chemistry	Fault Protection	Current - Charging	Battery Pack Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplied Contents	Utilized IC / Part	Contents	Function	Type
Analog Devices Inc./Maxim Integrated LT1511ISW#PBF	24-SOIC	7.5 mm	0.295 in	28 V	Surface Mount	3 A	Multi-Chemistry	Over Voltage	Constant - Programmable	20 V	85 C	-40 ¯C	24-SOIC

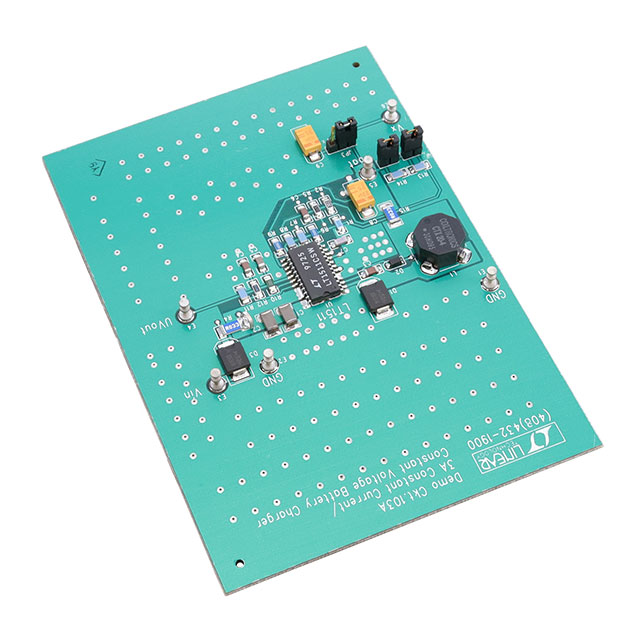

Analog Devices Inc./Maxim Integrated DC103A														Board(s)	LT1511	Board(s)	Battery Charger	Power Management
Analog Devices Inc./Maxim Integrated LT1511ISW#TRPBF	24-SOIC	7.5 mm	0.295 in	28 V	Surface Mount	3 A	Multi-Chemistry	Over Voltage	Constant - Programmable	20 V	85 C	-40 ¯C	24-SOIC
Analog Devices Inc./Maxim Integrated LT1511CSW#TRPBF	24-SOIC	7.5 mm	0.295 in	28 V	Surface Mount	3 A	Multi-Chemistry	Over Voltage	Constant - Programmable	20 V	70 °C	0 °C	24-SOIC
