725-114 Series
Manufacturer: EDAC Inc.
Beta
⌘K

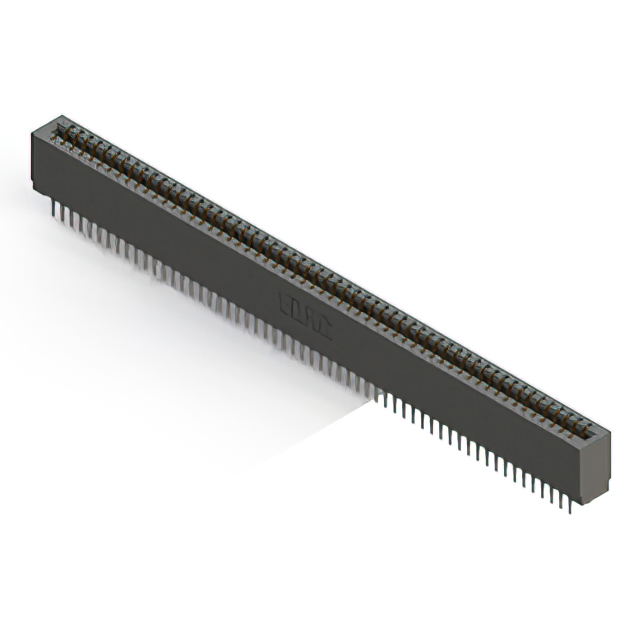

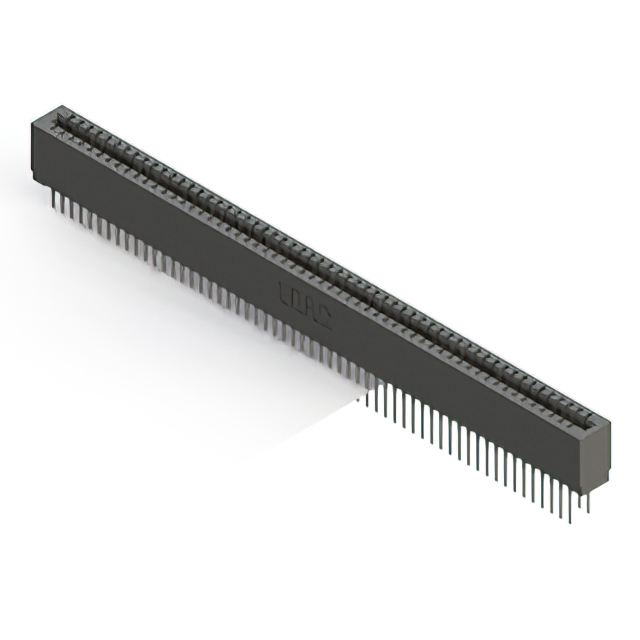

CONN EDGE DUAL FML 114POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Material | Contact Finish | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Termination | Mounting Type | Card Type | Number of Rows [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Read Out | Gender | Color | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 57 | -40 C | 105 ░C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Dual Edge | 2 | 114 | 30 Áin | 0.76 Ám | Dual | Female | Black | 0.1 " | 2.54 mm |
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 57 | -40 C | 105 ░C | Cantilever Make Before Break | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Non Specified - Dual Edge | 2 | 114 | 30 Áin | 0.76 Ám | Dual | Female | Black | 0.1 " | 2.54 mm |
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 57 | -40 C | 105 ░C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Through Hole | Non Specified - Dual Edge | 2 | 114 | 30 Áin | 0.76 Ám | Dual | Female | Black | 0.1 " | 2.54 mm |
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | Gold | 57 | -40 C | 105 ░C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Through Hole | Non Specified - Dual Edge | 2 | 114 | 30 Áin | 0.76 Ám | Dual | Female | Black | 0.1 " | 2.54 mm |
