PV9 Series

Manufacturer: E-Switch

Catalog

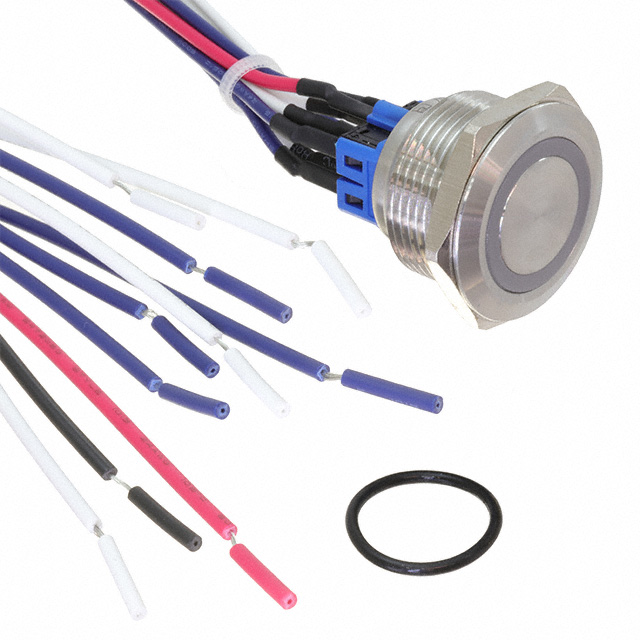

PUSHBUTTON SWITCHES ANTI-VANDAL, 2A 48VDC, 4PST-2NO/2NC OFF-ON, ON-OFF, PANEL MOUNT, FRONT WIRE LEADS 300MM

Part	Electrical Life	Mechanical Life	Mounting Type	Circuit	Ingress Protection	Switch Function	Current Rating (Amps)	Illumination Type, Color	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Type
E-Switch PV9FWU0SS-341	50000 Cycles	1000000 Cycles	Panel Mount Front	4PST-2NO/2NC	IP66 - Dust Tight Water Resistant	Off-On On-Off	2 A	Blue LED	No Marking	Silver	48 V	2.8 VDC	28 mm	Wire Leads	Button Flush Round	55 °C	-20 ░C	Anti-Vandal Illuminated
E-Switch PV9F2U0SS-351			Panel Mount Front	4PST-2NO/2NC	IP66 - Dust Tight Water Resistant	Off-On On-Off	2 A	LED Yellow		Silver	48 V	1.8 VDC	28 mm	Solder Quick Connect - 0.110" (2.8mm)	Button Flush Round	55 °C	-20 ░C	Anti-Vandal Illuminated
E-Switch PV9F2Y0SS-325			Panel Mount Front	DPST-NO/NC	IP66 - Dust Tight Water Resistant	Off-Mom On-Mom	2 A	LED Orange		Silver	48 V	24 V	28 mm	Solder Quick Connect - 0.110" (2.8mm)	Button Flush Round	55 °C	-20 ░C	Anti-Vandal Illuminated
E-Switch PV9F2V0SS-351			Panel Mount Front	4PST-2NO/2NC	IP66 - Dust Tight Water Resistant	Off-Mom On-Mom	2 A	LED Yellow		Silver	48 V	1.8 VDC	28 mm	Solder Quick Connect - 0.110" (2.8mm)	Button Flush Round	55 °C	-20 ░C	Anti-Vandal Illuminated
E-Switch PV9F2T0SS-351			Panel Mount Front	DPST-NO/NC	IP66 - Dust Tight Water Resistant	Off-On On-Off	2 A	LED Yellow		Silver	48 V	1.8 VDC	28 mm	Solder Quick Connect - 0.110" (2.8mm)	Button Flush Round	55 °C	-20 ░C	Anti-Vandal Illuminated
E-Switch PV9H2Y0SS-311			Panel Mount Front	DPST-NO/NC	IP66 - Dust Tight Water Resistant	Off-Mom On-Mom	2 A	LED Red		Silver	48 V	1.8 VDC	28 mm	Solder Quick Connect - 0.110" (2.8mm)	Button Round	55 °C	-20 ░C	Anti-Vandal Illuminated
