Schaffner FN9226 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 6A RA 1 PORT

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Approval Agency	Termination	Mounting Type	Panel Thickness	Panel Thickness	Connector Type	Ingress Protection	Material Flammability Rating	Filter Type	Current Rating - Filter	Features	Termination	Termination
TE Connectivity AMP Connectors FN9226-6-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	6 A

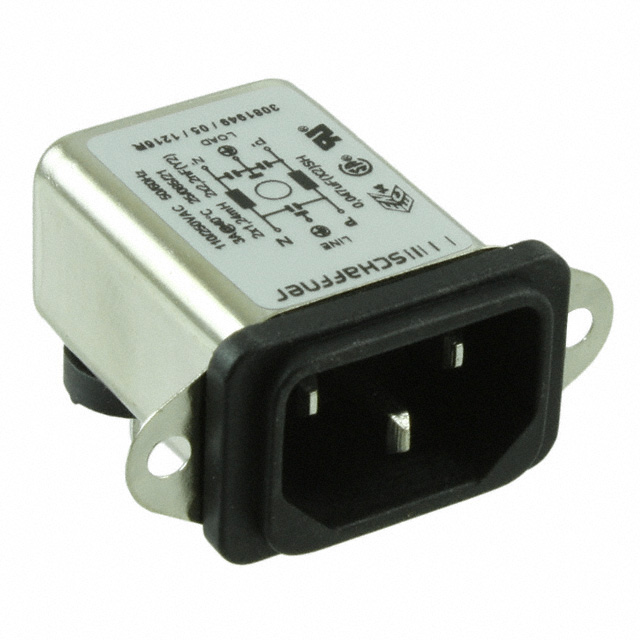

TE Connectivity AMP Connectors FN9226-3-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	3 A
TE Connectivity AMP Connectors FN9226-6-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	6 A
TE Connectivity AMP Connectors FN9226B-6-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial Medical	6 A	Bleed Resistor
TE Connectivity AMP Connectors FN9226-3-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	3 A

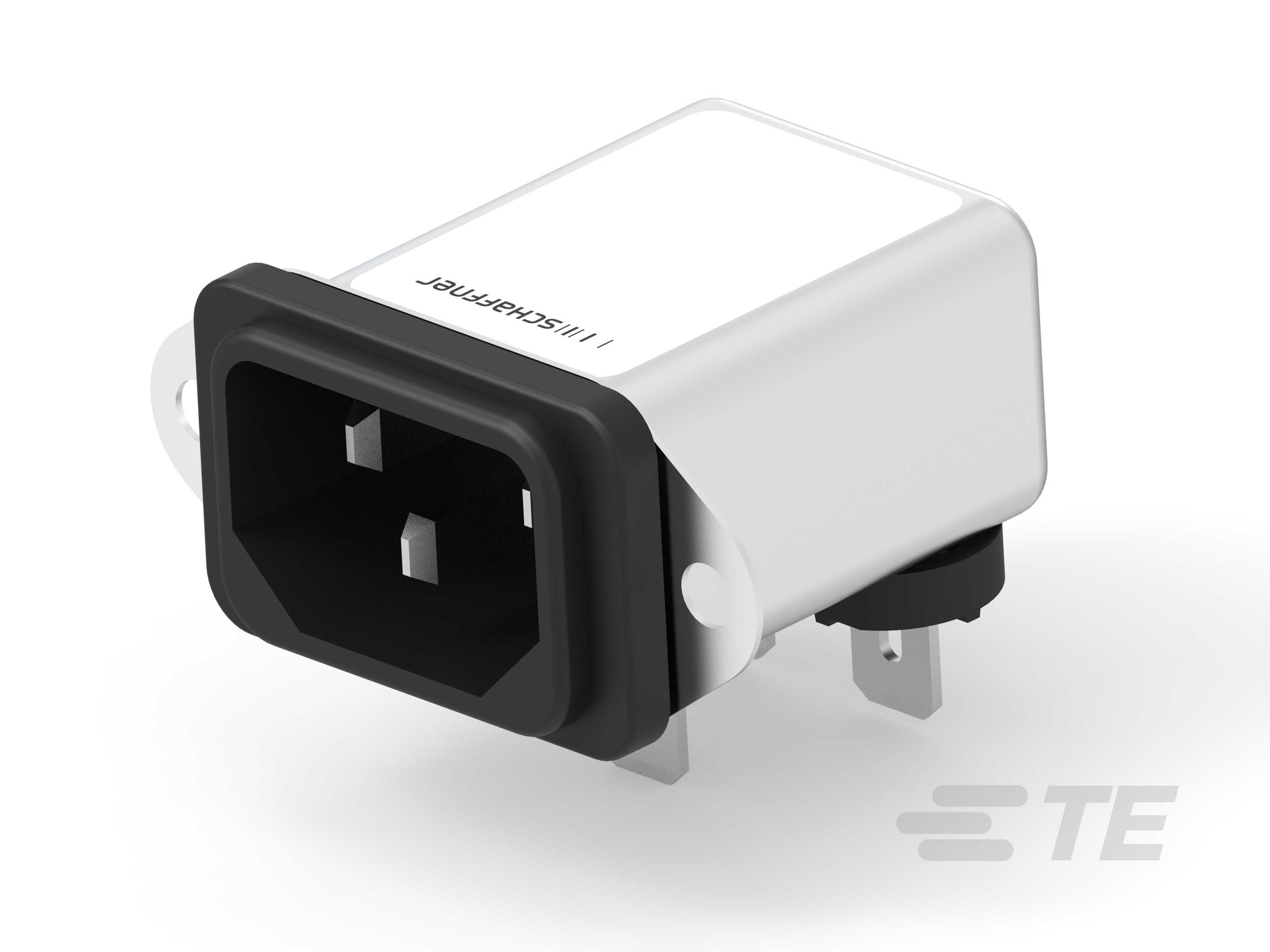

TE Connectivity AMP Connectors FN9226-1-06	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Quick Connect	Flange Panel Mount Right Angle			Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	1 A		6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9226-6-06	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Quick Connect	Flange Panel Mount Right Angle			Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	6 A		6.3 mm	0.25 "

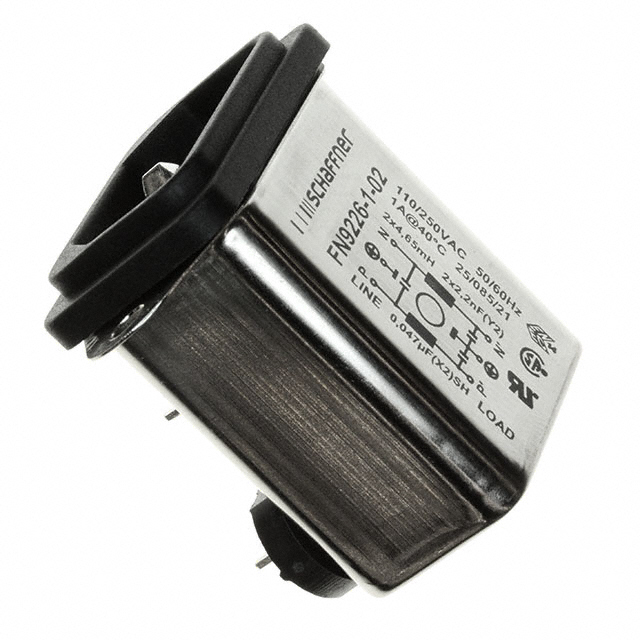

TE Connectivity AMP Connectors FN9226-1-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	1 A

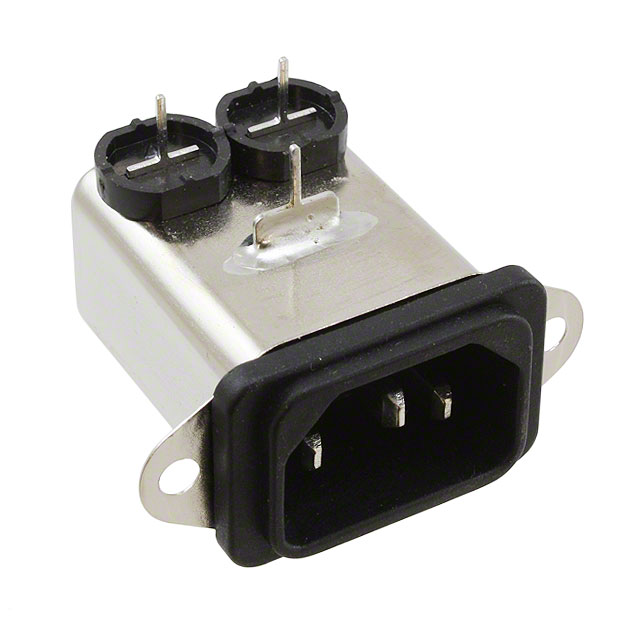

TE Connectivity AMP Connectors FN9226B-10-02	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Solder	Panel Mount Flange Through Hole Right Angle	0.224 in	5.7 mm	Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial Medical	10 A	Bleed Resistor
TE Connectivity AMP Connectors FN9226-1-06	34.4 mm	22.6 mm	IEC 320-C14	CSA ENEC SEMKO UL	Quick Connect	Flange Panel Mount Right Angle			Receptacle Male Blades	IP40	UL94 V-2	Filtered (EMI RFI) - Commercial	1 A		6.3 mm	0.25 "
