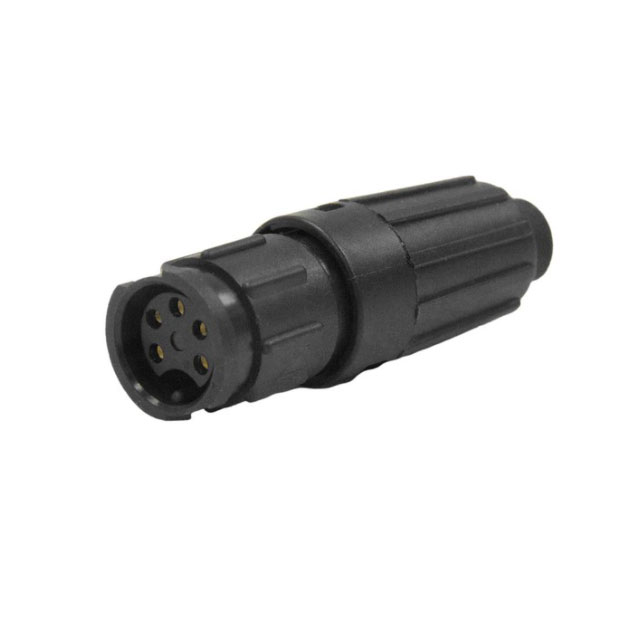

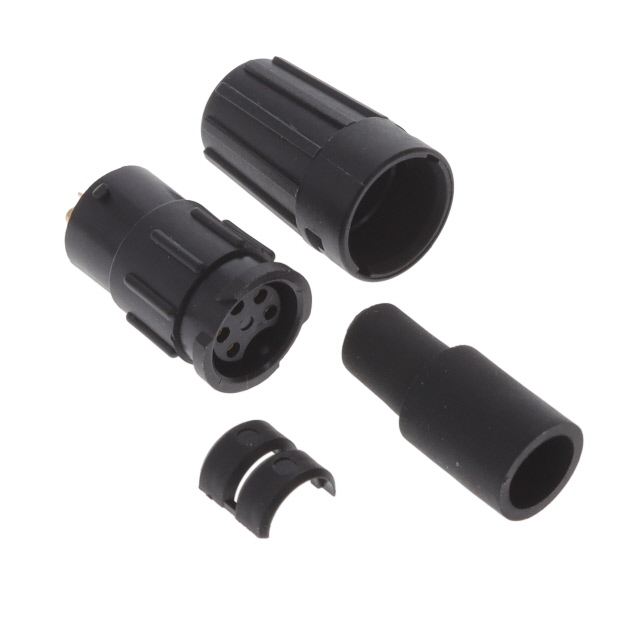

W8282-5 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MINI-CON-X INSTA-CLICK CONNECTOR
| Part | Backshell Material, Plating | Color | Mounting Type | Shielding | Number of Positions | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Connector Type | Orientation | Fastening Type | Shell Material | Voltage Rating | Features | Ingress Protection | Applications | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Insert Material | Contact Finish - Mating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Thermoplastic | Black | Free Hanging (In-Line) | Unshielded | 5 | 0.15 in | 3.81 mm | 0.13 " | 3.3 mm | Plug Female Sockets | Keyed | Bayonet Lock | Polybutylene Terephthalate (PBT) | 300 VAC | Backshell Coupling Nut UV Resistant | IP66 IP67 IP68 | Automotive Communication Systems Instrumentation | Copper Alloy | 85 °C | -40 C | Varies by Wire Gauge | Thermoplastic | Gold | |
 SWITCHCRAFT/CONXALL | Thermoplastic | Black | Free Hanging (In-Line) | Unshielded | 5 | 0.285 in | 7.24 mm | 0.26 " | 6.6 mm | Plug Female Sockets | Keyed | Bayonet Lock | Polybutylene Terephthalate (PBT) | 300 VAC | Backshell Coupling Nut UV Resistant | IP66 IP67 IP68 | Automotive Communication Systems Instrumentation | Copper Alloy | 85 °C | -40 C | Varies by Wire Gauge | Thermoplastic | Gold | Plastic |
