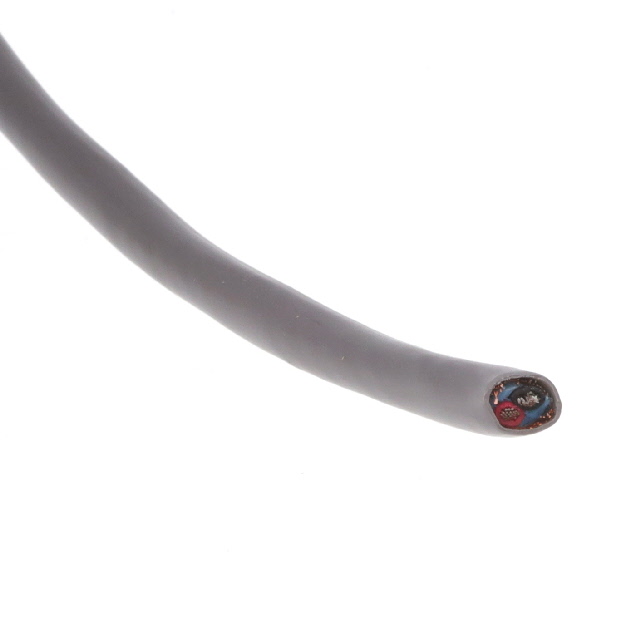

2260 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2CON 16AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Wire Gauge | Conductor Insulation | Jacket Color | Shield Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Number of Conductors | Cable Type | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 95 % | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 16 AWG | Poly-Vinyl Chloride (PVC) | Slate | Spiral | Copper Tinned | 0.02 " | 0.508 mm | 300 VDC | 2 | Multi-Conductor | 100 ft | 30.5 m | 30 AWG | 26 | Communication Control | 0.24 " | 6.1 mm | ||
ALPHA WIRE | Copper Bare | 95 % | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 16 AWG | Poly-Vinyl Chloride (PVC) | Slate | Spiral | Copper Tinned | 0.02 " | 0.508 mm | 300 VDC | 2 | Multi-Conductor | 30 AWG | 26 | Communication Control | 0.24 " | 6.1 mm | 152.4 m | 500 ft |
