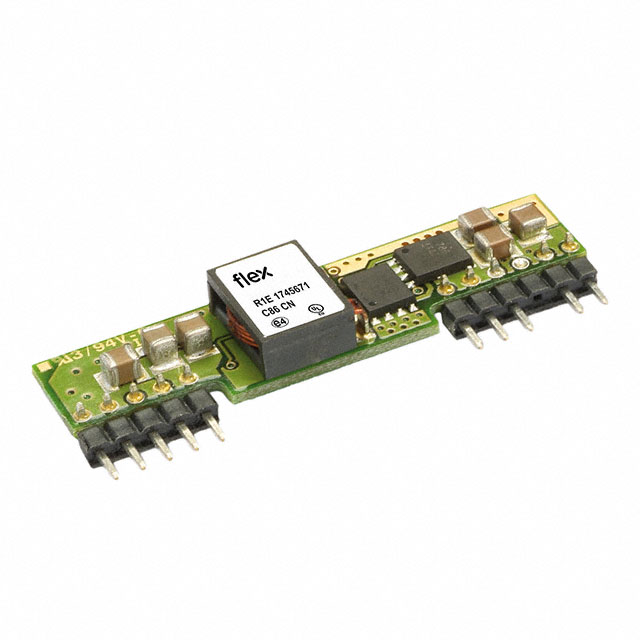

PMB451 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 0.8-3.6V 58W
| Part | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Package / Case | Features | Current - Output (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Efficiency | Voltage - Input (Min) [Min] | Type | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | CB CSA IEC TUV UL | 2.04 " | 0.35 in | 13.2 mm | 8.8 mm | 0.52 in | 51.8 mm | 10-SIP Module | Adjustable Output Remote On/Off Remote Sense | 16 A | Through Hole | 115 °C | -45 °C | Active Low Enable | 3.6 V | 0.8 V | 95.4 % | 3 V | Non-Isolated PoL Module | ITE (Commercial) | 5.5 V | 1 | 62368-1 |
