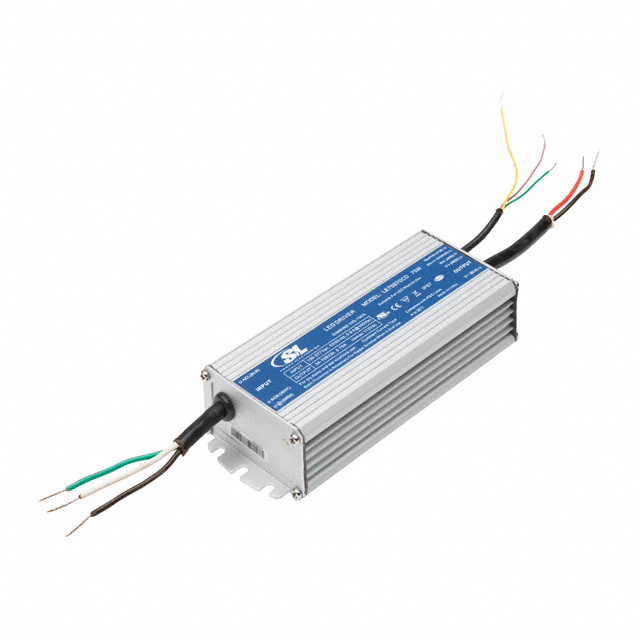

LE75S140 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
LED DRIVER CC AC/DC 27-54V 1.47A
| Part | Type | Termination Style | Number of Outputs | Dimming | Features | Voltage - Output [Max] | Voltage - Output [Min] | Power (Watts) | Topology | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Mounting Type | Efficiency | Approval Agency | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Constant Current | Wire Leads | 1 | Analog | OCP OTP OVP SCP | 54 V | 27 V | 75 W | AC DC Converter | -35 °C | 70 °C | 771.1 g | 1.7 lbs | Chassis Mount | 90 % | CE CSA EN UL | 305 VAC | 67.5 mm | 5.91 " | 150 mm | 37 mm | 1.46 " | 2.66 " | 90 VAC | IP67 |
