TL59F Series
Manufacturer: E-Switch
Beta
⌘K

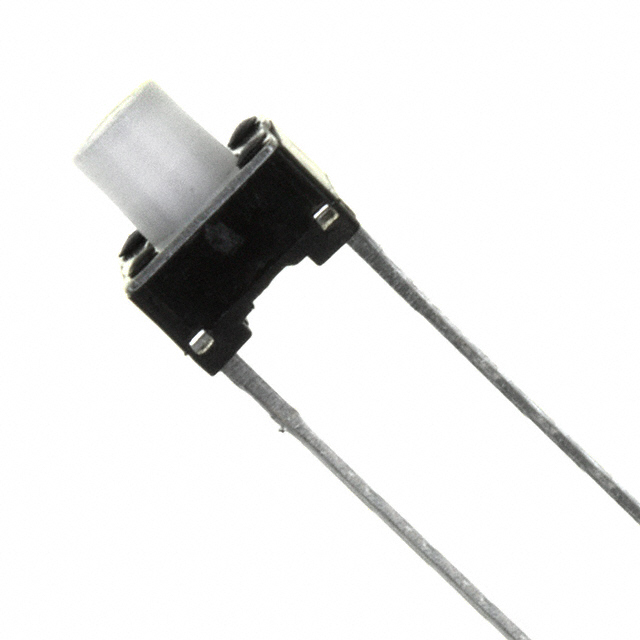

MICROSWITCH TACT; SPST; POS: 2; 0.05A/12VDC; THT; NONE; 1.57N; 7MM
| Part | Switch Travel | Mechanical Life | Actuator Material | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Mounting Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Actuator Type | Actuator Orientation | Termination Style | Outline [x] | Outline [y] | Illumination | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | 7 mm | 0.05 A 12 VDC | Through Hole | Off-Mom | -20 ░C | 70 °C | SPST-NO | Standard | Top Actuated | PC Pin | 6.2 mm | 6.2 mm | Non-Illuminated | 160 gf |
