R1501 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K
IC REG LINEAR 12V 1A TO252-5-P2
| Part | Current - Quiescent (Iq) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Dropout (Max) | Mounting Type | PSRR | Current - Output | Supplier Device Package | Protection Features | Package / Case | Voltage - Input (Max) [Max] | Number of Regulators | Output Configuration | Voltage - Output (Min/Fixed) | Control Features | Voltage Dropout (Max) [Max] | Qualification | Grade | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

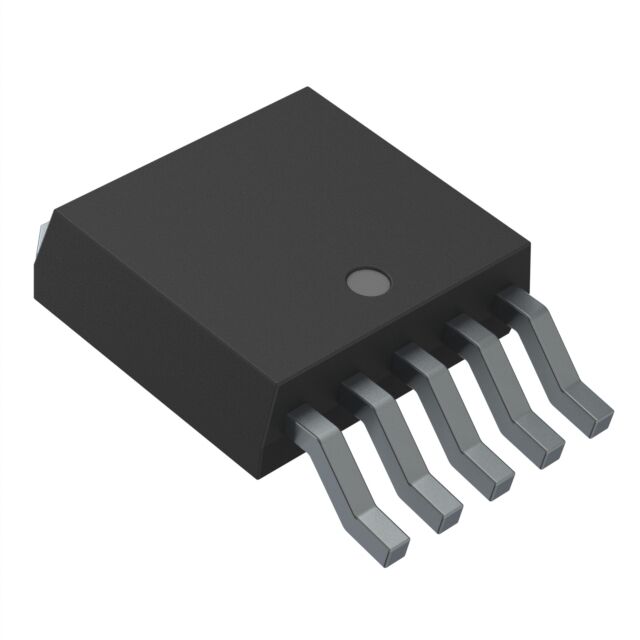

 Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | 0.7 V | Surface Mount | 50 dB | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 12 V | Enable | ||||
Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | 0.7 V | Surface Mount | 50 dB | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 18 V | Enable | ||||
Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | Surface Mount | 60 dB | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 6 V | Enable | 0.9 V | ||||
Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | Surface Mount | 60 dB | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 4.2 V | Enable | 1.125 V | ||||
Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | Surface Mount | 50 dB | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 6.3 V | Enable | 0.9 V | ||||
Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | Surface Mount | 50 dB | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 10 V | Enable | 0.775 V | ||||
 Nisshinbo Micro Devices Inc. | 160 µA | -40 °C | 105 °C | Surface Mount | 1 A | TO-252-5-P2 | Over Current Over Temperature Short Circuit | DPAK (5 Leads + Tab) TO-252-6 | 24 V | 1 | Positive | 3.4 V | Enable | 1.125 V | AEC-Q100 | Automotive | |||
 Nisshinbo Micro Devices Inc. | 160 µA | -40 C | 105 ░C | Surface Mount | 50 dB | 1 A | 6-HSOP-J | Over Current Over Temperature Short Circuit | 4 Leads + 2 Fins 6-SOIC Variation | 24 V | 1 | Positive | 9 V | Enable | 0.775 V | 0.154 in 3.9 mm |
