CXM-3 Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

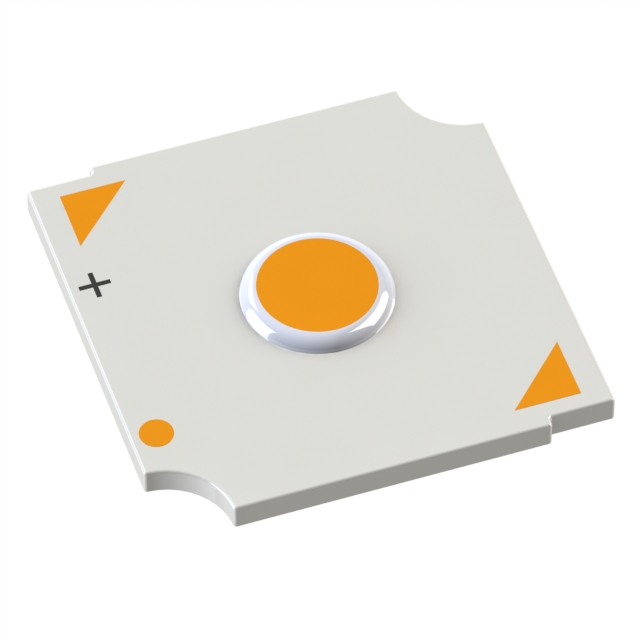

WHITE LEDS WHITE 3500 K 95-CRI, CXM-3 SERIES
| Part | CRI (Color Rendering Index) | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | Type | Light Emitting Surface (LES) [diameter] | Lumens/Watt @ Current - Test | Current - Max [Max] | Temperature - Test | Viewing Angle | Current - Test | Size / Dimension [y] | Size / Dimension [x] | Color | Lens Type | Configuration | Height [z] | CCT (K) | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | 95 | 285 lm | 8.5 V | Chip On Board (COB) | 3.5 mm | 105 lm/W | 800 mA | 85 °C | 120 ° | 320 mA | 13.5 mm | 13.5 mm | Warm White | Flat | Square | 1.37 mm | 3500 K | 3-Step MacAdam Ellipse |
Luminus Devices Inc. | 80 | 355 lm | 8.5 V | Chip On Board (COB) | 3.5 mm | 131 lm/W | 800 mA | 85 °C | 120 ° | 320 mA | 13.5 mm | 13.5 mm | Warm White | Flat | Square | 1.37 mm | 3500 K | 3-Step MacAdam Ellipse |
 Luminus Devices Inc. | 80 | 360 lm | 8.5 V | Chip On Board (COB) | 3.5 mm | 132 lm/W | 800 mA | 85 °C | 120 ° | 320 mA | 13.5 mm | 13.5 mm | Cool White | Flat | Square | 1.37 mm | 5700 K | 3-Step MacAdam Ellipse |
