SJ-43 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
CONN JACK 4COND 3.5MM SMD R/A
| Part | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Gender | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Termination | Mounting Type | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Signal Lines | Internal Switch(s) | Body Color | Current Rating (Amps) | Features | Contact Material - Plating | Voltage - Rated | Contact Material | Mating Length/Depth | Mating Length/Depth | Housing Material | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

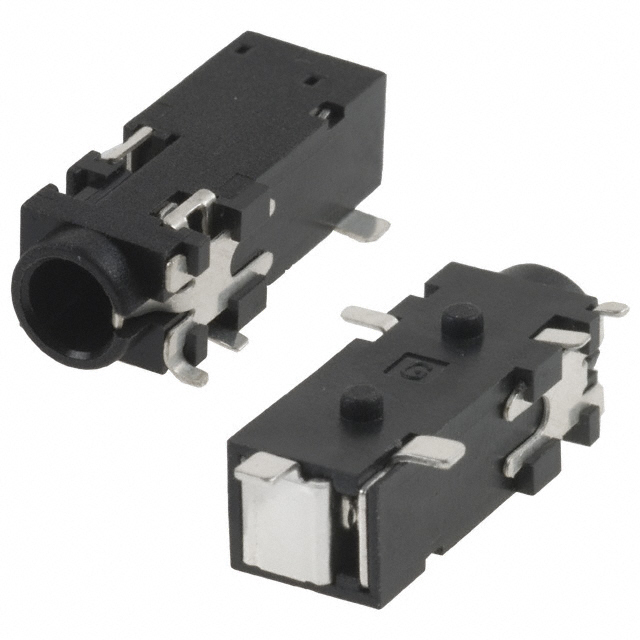

 Same Sky (Formerly CUI Devices) | 5 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Board Cutout Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Single Switch | ||||||||||

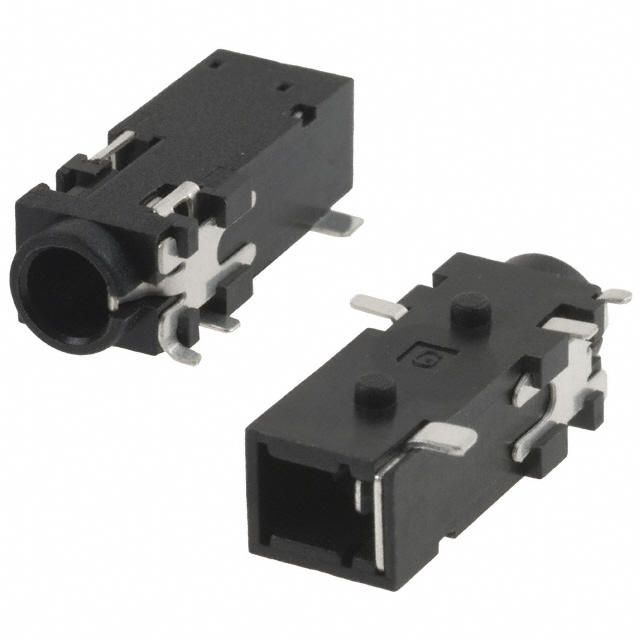

 Same Sky (Formerly CUI Devices) | 5 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Single Switch | Black | 1 A | Board Guide | Silver | 12 VDC | Brass Copper Alloy | 14 mm | 0.551 in | Nylon 6T Polyamide (PA6T) | |

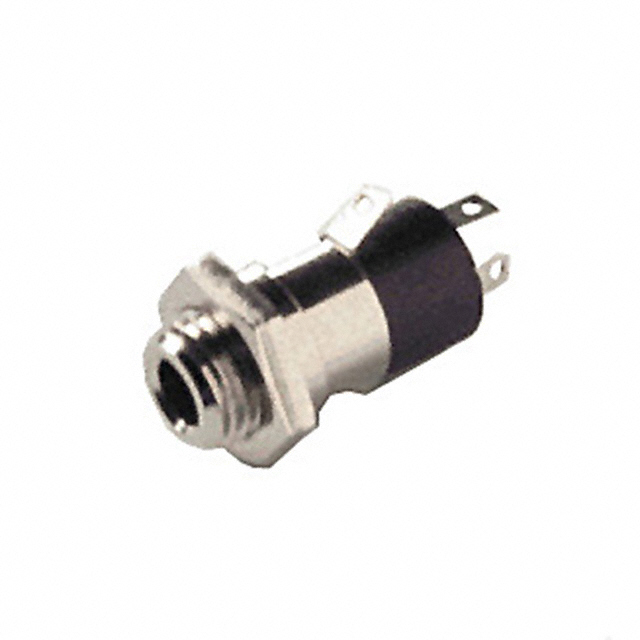

 Same Sky (Formerly CUI Devices) | 4 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder Eyelet(s) | Panel Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 70 °C | -20 ░C | Stereo (4 Conductor TRRS) | Mounting Hardware | ||||||||||

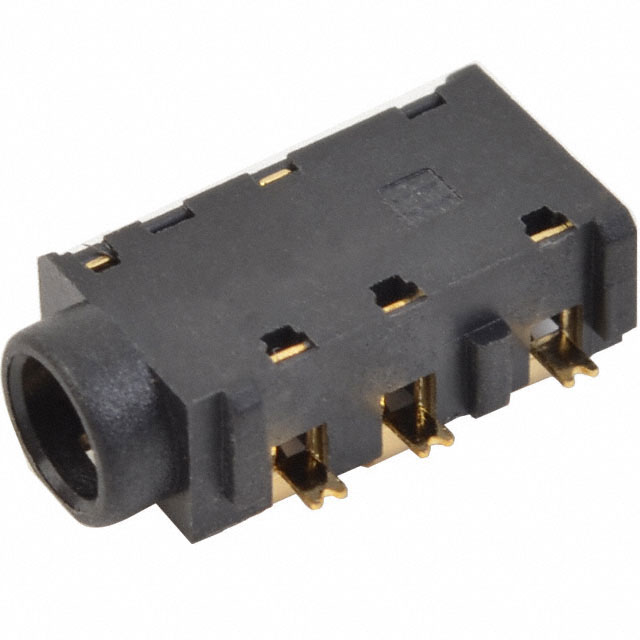

 Same Sky (Formerly CUI Devices) | 6 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Two Switches | Board Guide | |||||||||
 Same Sky (Formerly CUI Devices) | 4 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Board Guide | ||||||||||

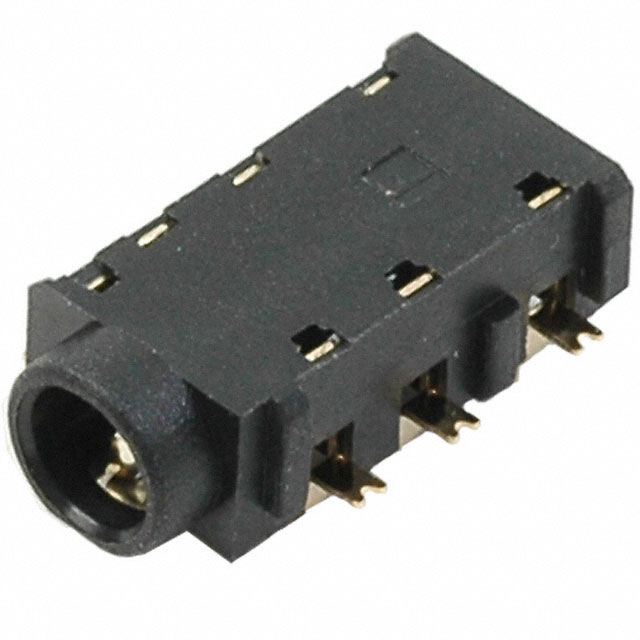

 Same Sky (Formerly CUI Devices) | 6 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Two Switches | Black | 1 A | Board Guide | Silver | 12 VDC | Brass Copper Alloy | 14 mm | 0.551 in | Nylon 6T Polyamide (PA6T) | |
Same Sky (Formerly CUI Devices) | 5 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Single Switch | Board Guide | |||||||||
 Same Sky (Formerly CUI Devices) | 6 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Two Switches | Board Guide | |||||||||
 Same Sky (Formerly CUI Devices) | 5 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) | Single Switch | Board Guide | |||||||||
 Same Sky (Formerly CUI Devices) | 4 | 4 | Female | 0.125 in | 3.5 mm | 0.141 in | Solder | Board Cutout Right Angle Surface Mount | Unshielded | 0.142 in | 3.6 mm | Phone Jack | 85 °C | -20 ░C | Stereo (4 Conductor TRRS) |
