8P25 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

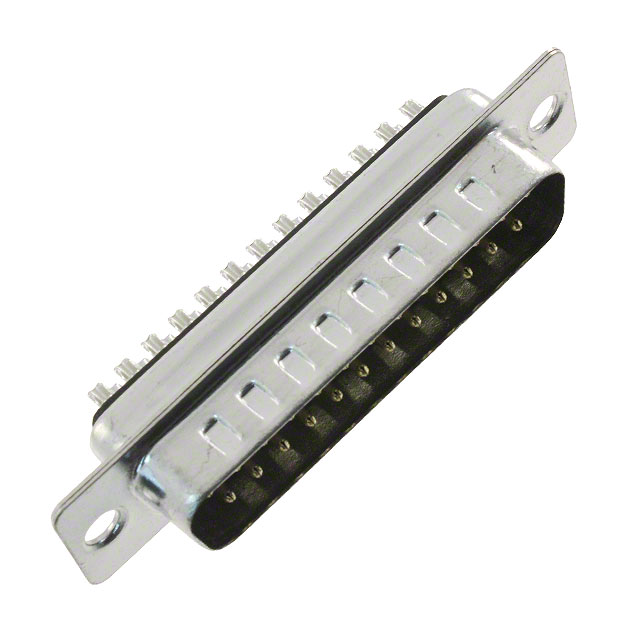

CONN D-SUB PLUG 25POS PNL MNT
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Number of Rows [custom] | Connector Style | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Features | Contact Type | Mounting Type | Contact Finish Thickness | Number of Positions | Connector Type | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Copper Alloy | -55 C | 105 ░C | Thermoplastic | 250 V | UL94 V-0 | 3 A | 2 | D-Sub | Steel | B DB | 3 | Grounding Indents | Signal | Panel Mount | Flash | 25 | Plug Male Pins | Housing/Shell (Unthreaded) | Gold | ||
 3M Electronic Specialty | Copper Alloy | -55 C | 105 ░C | Thermoplastic | 250 V | UL94 V-0 | 3 A | 2 | D-Sub | Steel | B DB | 3 | Filter Grounding Indents | Signal | Panel Mount | 25 | Plug Male Pins | Housing/Shell (Unthreaded) | Gold | 30 Áin | 0.76 Ám |
