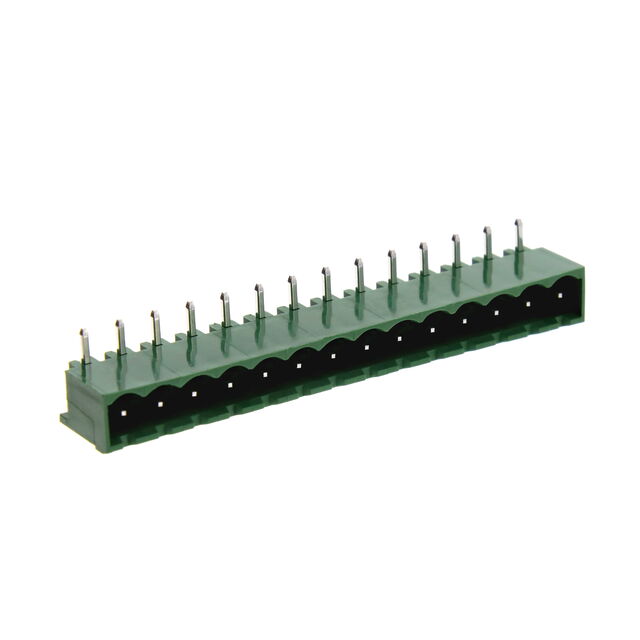

Pluggable Terminal Blocks EURO (119624)
Pluggable Terminal Blocks EURO (119624)
Pluggable Terminal Blocks EURO (119624)
| Part | Contact Tail Length [x] | Contact Tail Length [x] | Housing Material | Material Flammability Rating | Contact Material | Insulation Height [z] | Insulation Height | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Mating Finish | Positions Per Level | Current - UL | Header Orientation | Pitch | Pitch | Termination Style | Color | Mounting Type | Type | Number of Levels | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Eaton - Electronics Division | 4.5 mm | 0.177 in | Thermoplastic | UL94 V-0 | Brass | 0.327 " | 8.3 mm | 14 | -40 C | 105 ░C | Tin | 14 | 16 A | 90° Right Angle | 5.08 mm | 0.2 in | Solder | Green | Through Hole | Header Male Pins Shrouded (4 Side) | 1 | 300 V |
