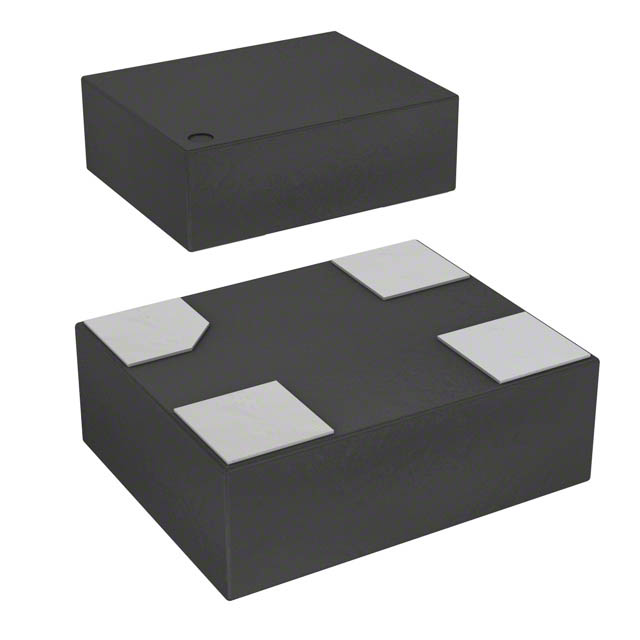

ASDMB Series

Catalog

STANDARD CLOCK OSCILLATORS OSCILLATOR 2520 4-SMD 18.432MHZ +/-10PPM -40°C ~ 105°C CMOS 1.8V ~ 3.3V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Base Resonator	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Output	Current - Supply (Max) [Max]	Package / Case	Function	Type	Frequency Stability	Current - Supply (Disable) (Max) [Max]
Abracon LLC ASDMB-18.432MHZ-XY-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	105 ░C	2	2.5	4-SMD	18.432 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	10 ppm
Abracon LLC ASDMB-7.3728MHZ-LY-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	85 °C	2	2.5	4-SMD	7.3728 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	10 ppm	15 çA
Abracon LLC ASDMB-29.500MHZ-LR-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	85 °C	2	2.5	4-SMD	29.5 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	25 ppm	15 çA
Abracon LLC ASDMB-29.4912MHZ-XY-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	105 ░C	2	2.5	4-SMD	29.4912 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	10 ppm	15 çA
Abracon LLC ASDMB-33.333MHZ-XY-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	105 ░C	2	2.5	4-SMD	33.333 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	10 ppm	15 çA
Abracon LLC ASDMB-24.576MHZ-XY-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	105 ░C	2	2.5	4-SMD	24.576 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	10 ppm	15 çA
Abracon LLC ASDMB-20.000MHZ-XY-T	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	MEMS	-40 C	105 ░C	2	2.5	4-SMD	20 MHz	3.3 V	1.8 V	0.035 in	0.9 mm	LVCMOS	16 mA	4-SMD No Lead	Standby (Power Down)	XO (Standard)	10 ppm	15 çA
